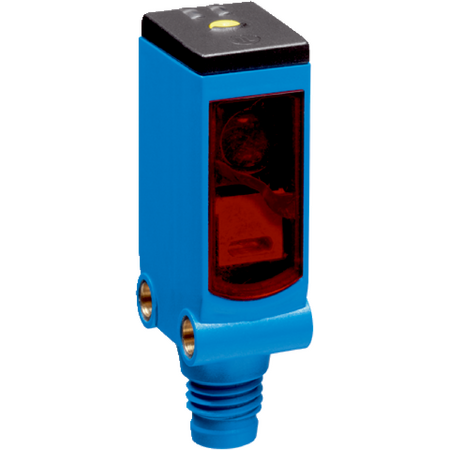

WLG4SC-3P3232B01 | Photoelectric sensors
The SICK WLG4SC-3P3232B01 is a slim photoelectric retro-reflective sensor designed for precise object detection including transparent objects, featuring IO-Link communication and robust IP67/IP66 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WLG4SC-3P3232B01 | Photoelectric sensors
Brand: SICK
SKU: 1070334
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK photoelectric sensor, WLG4SC sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 3 m
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Adjustment: IO-Link and single teach-in button
- Digital output: PNP, light/dark switching, max output current ≤ 100 mA
- Switching frequency: 1000 Hz
- Repeatability (response time): 150 µs
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Response time Q/on Pin 2: 300 µs to 450 µs
- Connection: Cable with M8 male connector, 4-pin, 100 mm length
- Housing material: Plastic ABS, front screen PMMA, cable PVC
- Enclosure rating: IP67 and IP66
- Operating temperature: -40 °C to +60 °C
- Communication: IO-Link COM2 at 38.4 kBaud, cycle time 2.3 ms
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 3 meters without reflector
- PinPoint LED visible red light with 650 nm wavelength
- Polarisation filters included
- IO-Link communication interface with 38.4 kBaud data rate
- Light/dark switching mode with PNP digital output
- High switching frequency up to 1000 Hz
- Slim plastic ABS housing with IP67 and IP66 protection
- Operating temperature range from -40°C to +60°C
- Functions compatible with WLG4SC-3P2232A91
- AutoAdapt feature for optimized detection
- Multiple timer and logic functions including debounce and timestamp
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, wiring, and configuration for optimal performance and safety.
Applications
- Industrial automation for object detection
- Detecting transparent objects
- Machine safety and process control
- Factory and production line monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67/IP66 rated housing reduces waste by extending product life
- Compliant with China RoHS and ECOLAB certificates ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WLG4SC-3P3232B01 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
