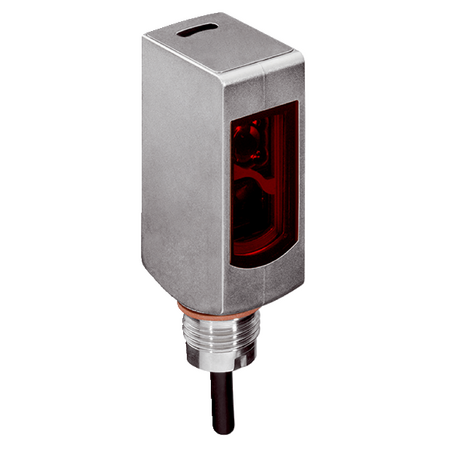

WS4S-3D3130H Through beam Photoelectric switch Inox hygiene Sender, test input, 150 mm cable with connector M8, 3 pin
The SICK WS4S-3D3130H is a stainless steel through-beam photoelectric sensor designed for hygienic and washdown environments, offering reliable detection with a visible red LED and robust IP69K protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WS4S-3D3130H Through beam Photoelectric switch Inox hygiene Sender, test input, 150 mm cable with connector M8, 3 pin
Brand: SICK
SKU: 2058464
Alternatively Known As: Through Beam Photoelectric Sensor, Hygiene Photoelectric Switch, Stainless Steel Photoelectric Sensor, Washdown Photoelectric Sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 4.5 m (max 5 m)
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable material: Plastic, PVC
- Weight: 50 g
- MTTFD: 968 years
- Mission time: 20 years
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with a sensing range up to 4.5 m
- PinPoint LED visible red light with 650 nm wavelength
- Slim stainless steel V4A (1.4404, 316L) housing designed for hygiene
- IP66, IP67, IP68, and IP69K rated for protection against dust and water
- Fast response time under 0.5 ms and switching frequency up to 1,000 Hz
- Cable with M8 3-pin connector and 150 mm cable length
- Certified for photobiological safety and multiple international standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones requiring reliable object detection
- Industrial automation in food and beverage processing
- Pharmaceutical manufacturing environments
- Any application needing robust stainless steel photoelectric sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS4S-3D3130H Through Beam Photoelectric Switch is available for immediate purchase, ideal for hygienic industrial applications requiring reliable object detection.
