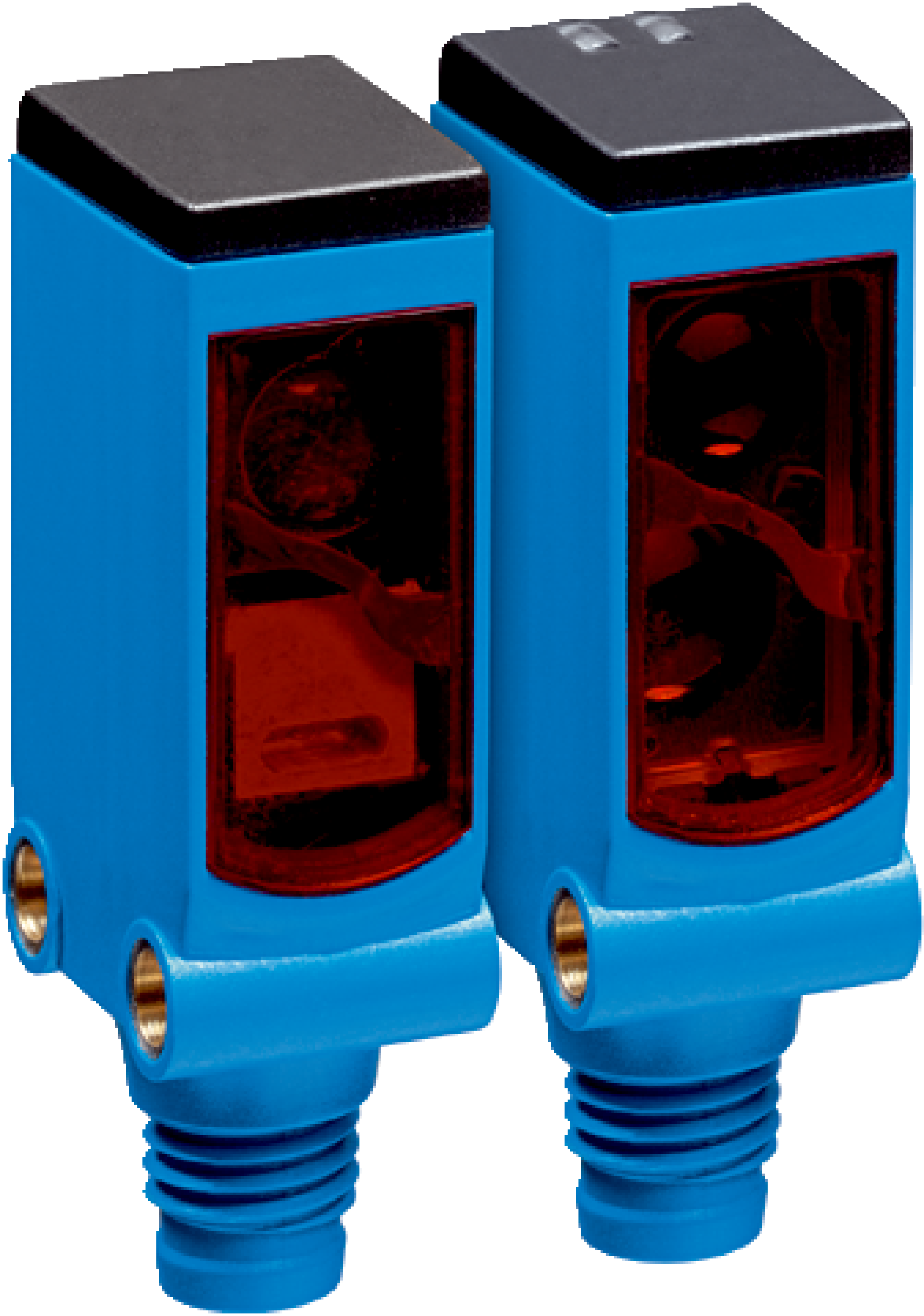

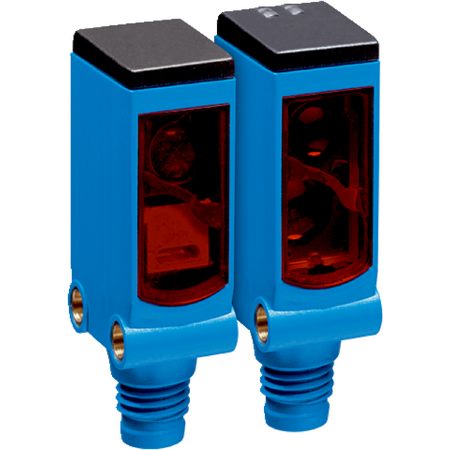

WS4SL-3D2236 Miniature Sensor, Photoelectric through beam sensor, Sender, Laser class 1, red-light, sensing distance 0 … 60 m, No adjustment, Connector M8, 4-pin, Miniature Sensor
The SICK WS4SL-3D2236 is a miniature through-beam photoelectric sensor featuring a visible red laser, 60 m sensing range, and IO-Link communication, ideal for precise small object detection in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WS4SL-3D2236 Miniature Sensor, Photoelectric through beam sensor, Sender, Laser class 1, red-light, sensing distance 0 … 60 m, No adjustment, Connector M8, 4-pin, Miniature Sensor
Brand: SICK
SKU: 2064095
Alternatively Known As: Miniature photoelectric sensor, Through-beam laser sensor, Red light photoelectric sensor, IO-Link photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 to 60 meters
- Light source: Laser, visible red light, 650 nm wavelength
- Laser class: 1
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Output type: PNP digital output, complementary
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Enclosure rating: IP66, IP67
- Connection: Male M8 connector, 4-pin
- Housing material: Plastic, Novodur
- Front screen material: Plastic, PMMA
- Communication: IO-Link, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 42mm x 17mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 60 meters
- Visible red laser light source with 650 nm wavelength
- Laser class 1 safety rating
- Slim plastic Novodur housing with IP66/IP67 protection
- Fast response time ≤ 0.5 ms and high switching frequency up to 1000 Hz
- IO-Link communication interface with 38.4 kBaud data rate
- Complementary PNP digital output with light/dark switching mode
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure electrical connections, complying with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Precision sensing in packaging and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10-30 V DC supply voltage
- Durable IP66/IP67 rated housing reduces environmental damage and waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WS4SL-3D2236 Miniature Through-Beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
