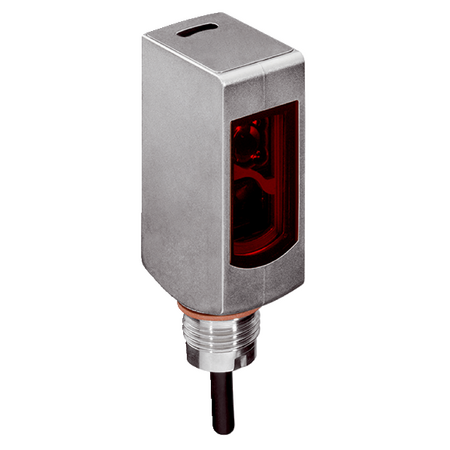

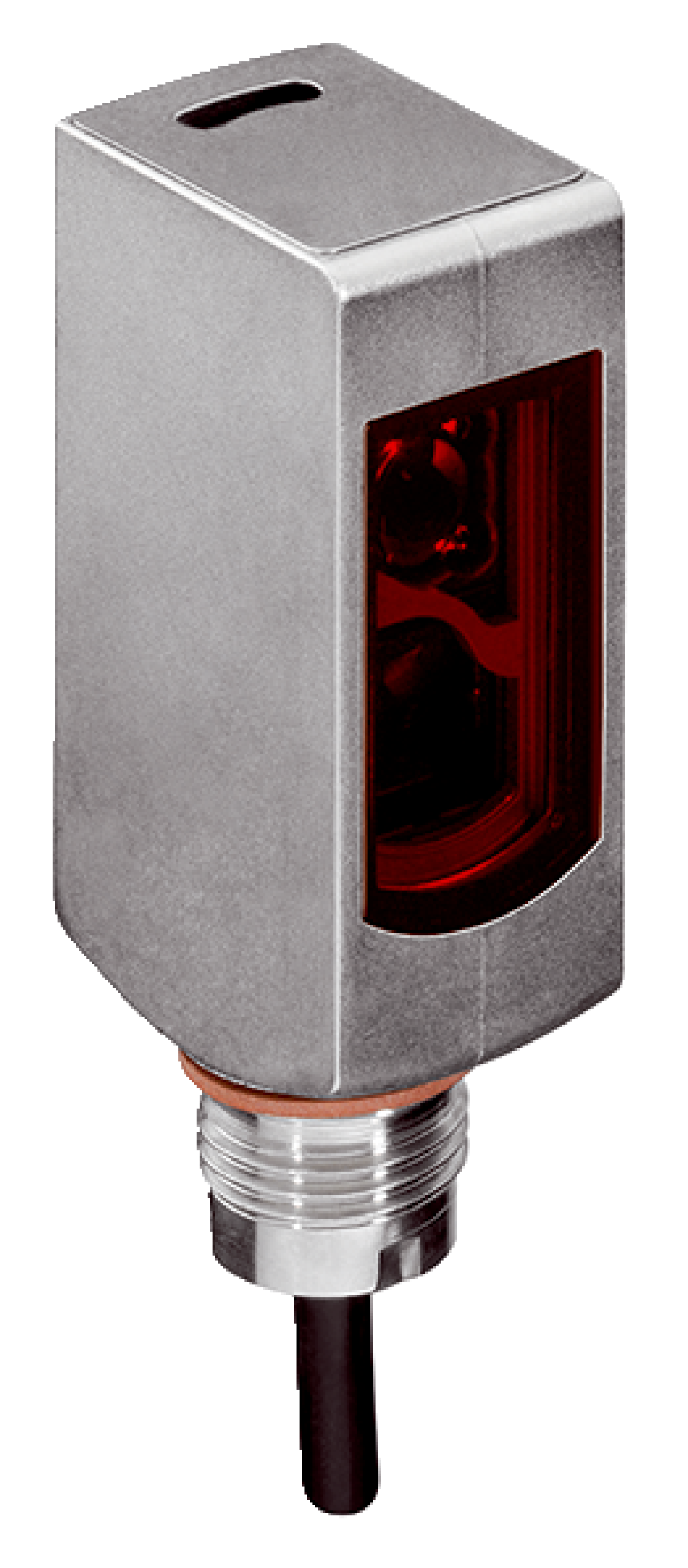

WSE4S-3P1330H | Photoelectric sensors
The SICK WSE4S-3P1330H is a through-beam photoelectric sensor designed for hygienic and washdown zones, featuring a slim stainless steel housing, visible red light, and high protection ratings for reliable industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WSE4S-3P1330H | Photoelectric sensors
Brand: SICK
SKU: 1052886
Alternatively Known As: Through-beam photoelectric sensor, stainless steel photoelectric sensor, hygienic photoelectric sensor, WSE4S sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 4.5 m
- Light source: PinPoint LED, visible red light, wavelength 650 nm
- Light spot size: Ø 50 mm at 2 m distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Output type: PNP digital output, light switching mode
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +75 °C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic PMMA
- Cable: 3-wire, 2 m length, PVC
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 4.5 meters
- Slim stainless steel V4A (1.4404, 316L) housing for hygienic environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- PNP digital output with light switching mode
- Robust metal housing with plastic PMMA front screen
- Cable connection with 2 meter 3-wire PVC cable
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring stainless steel housing
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WSE4S-3P1330H photoelectric sensor is available for immediate purchase, ideal for industrial automation and hygienic environment applications.
