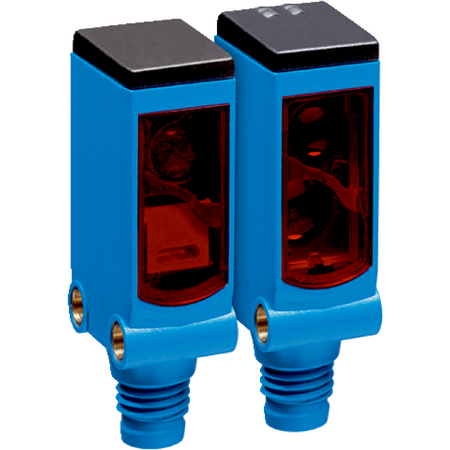

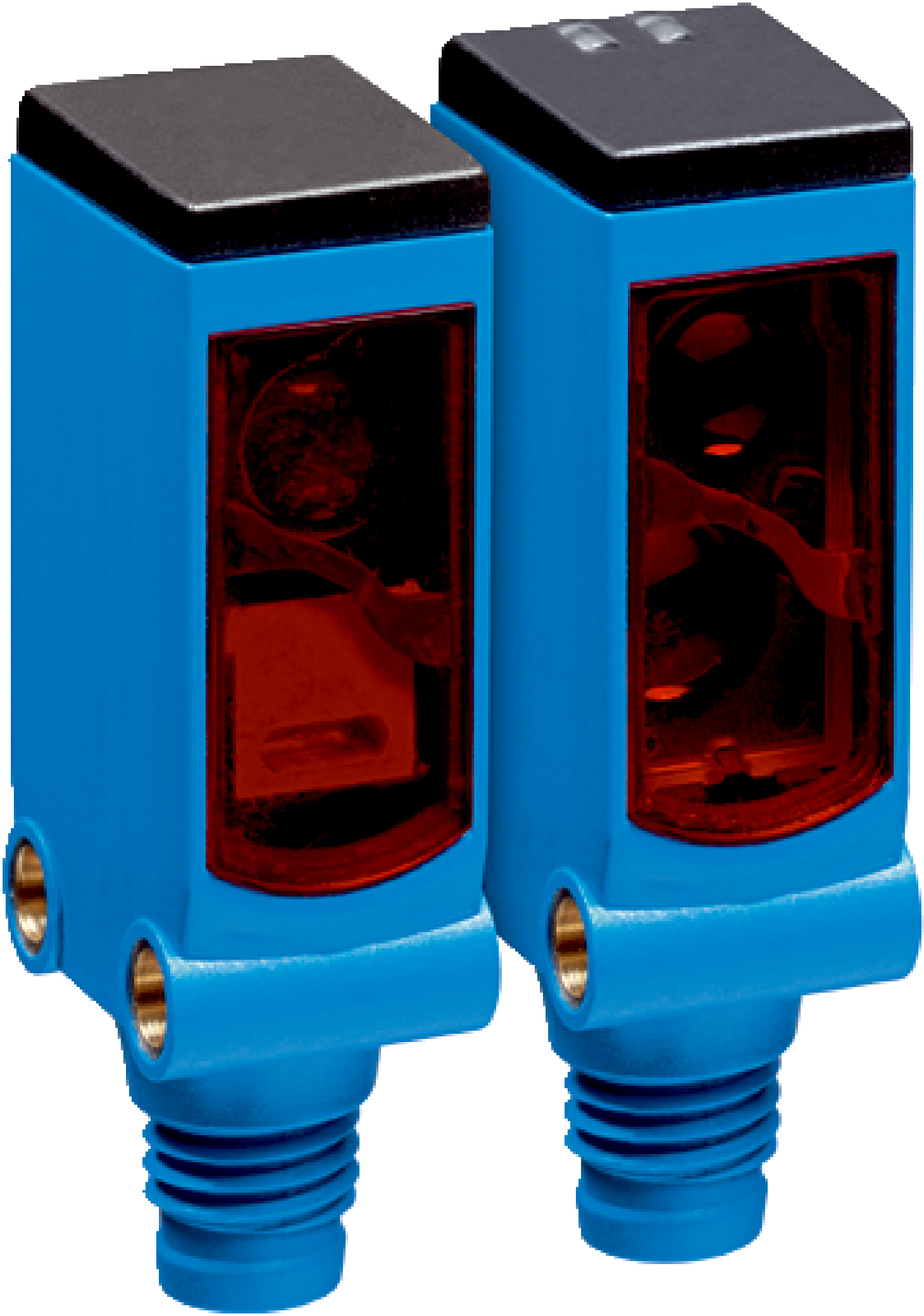

WSE4SC-3P2230S03 | Photoelectric sensors
The SICK WSE4SC-3P2230S03 is a through-beam photoelectric sensor featuring a 4.5 m sensing range, IO-Link communication, and robust IP67 rated slim ABS housing, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WSE4SC-3P2230S03 | Photoelectric sensors
Brand: SICK
SKU: 1078552
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, IO-Link photoelectric sensor, industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Output type: PNP digital output with light/dark switching
- Maximum output current: ≤ 100 mA
- Response time: 300 µs to 450 µs
- Switching frequency: up to 1000 Hz
- Protection class: III
- Enclosure rating: IP67 and IP66
- Connection: Male M8, 4-pin connector
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Communication: IO-Link COM2 at 38.4 kBaud
- Process data length: 16 Bit
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 4.5 meters
- Visible red light with 650 nm wavelength
- PinPoint LED light source with 50 mm spot size at 2 m
- IO-Link communication interface with 38.4 kBaud data rate
- Light/dark switching mode with PNP digital output
- High switching frequency up to 1000 Hz
- Slim plastic ABS housing with IP67 and IP66 protection
- Operating temperature range from -40°C to +60°C
- Parameter presettings with 200 ms on delay on QL1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing minimizes waste through extended product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE4SC-3P2230S03 photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
