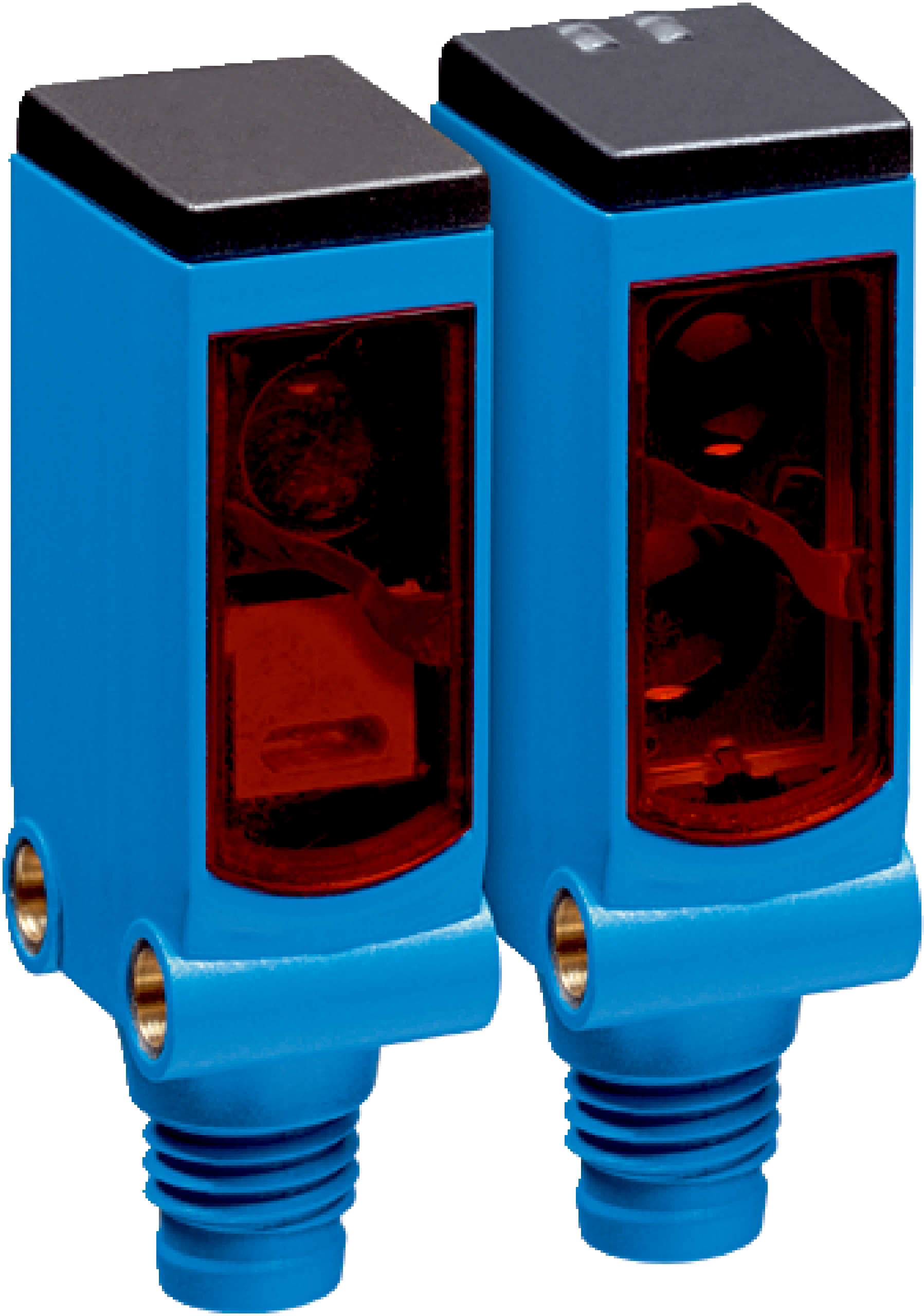

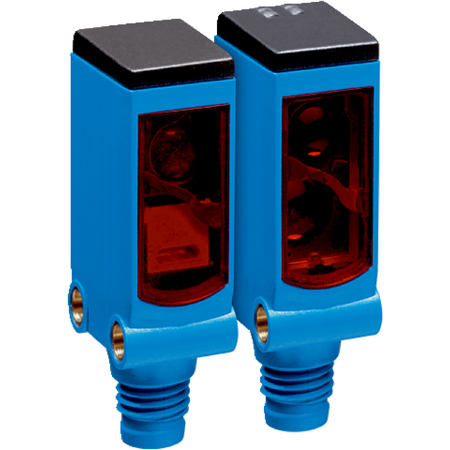

WSE4SC-3P2230S04 | Photoelectric sensors
The SICK WSE4SC-3P2230S04 is a through-beam photoelectric sensor featuring a slim ABS housing, IO-Link communication, and a sensing range up to 2 meters, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WSE4SC-3P2230S04 | Photoelectric sensors
Brand: SICK
SKU: 1079435
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, IO-Link photoelectric sensor, industrial object sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 2 m
- Light source: PinPoint LED
- Type of light: Visible red light
- Light spot size at 2 m: Ø 50 mm
- Wavelength: 650 nm
- Adjustment: IO-Link
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Protection class: III
- Digital output type: PNP
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Repeatability (response time): 150 µs
- Switching frequency: 1000 Hz
- Response time Q/on Pin 2: 300 µs to 450 µs
- Housing material: Plastic, ABS
- Front screen material: Plastic, PMMA
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP67, IP66
- Ambient operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 2 meters
- PinPoint LED light source with visible red light at 650 nm wavelength
- Slim plastic ABS housing with IP67 and IP66 protection ratings
- IO-Link communication interface with 38.4 kBaud data transmission
- Light/dark switching mode with PNP digital output
- High switching frequency up to 1000 Hz
- Adjustable via IO-Link
- Pinhole Ø 2 mm on front screen for precise detection
- Operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration via IO-Link for optimal sensor performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67/IP66 rated housing ensures long product life and reduces waste
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE4SC-3P2230S04 photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
