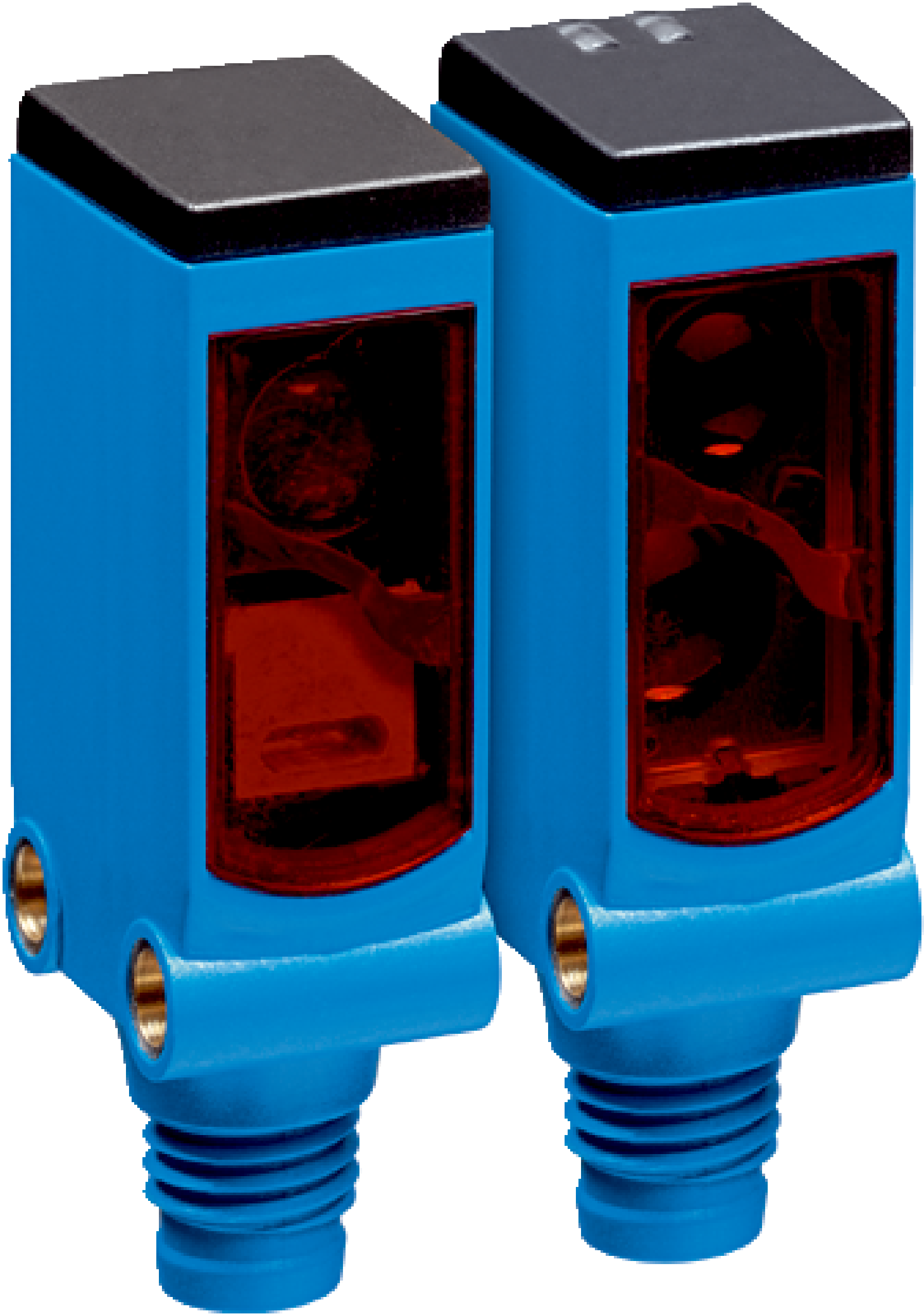

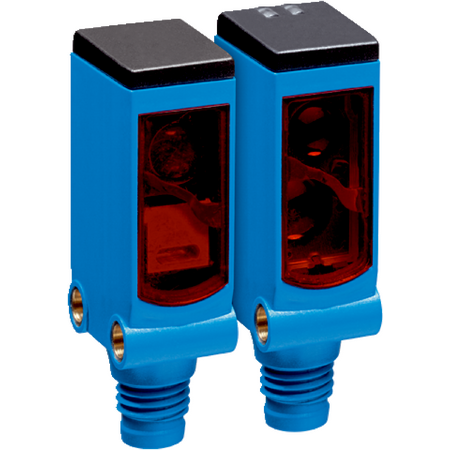

WSE4SLC-3P2236B01 | Photoelectric sensors
The SICK WSE4SLC-3P2236B01 is a through-beam photoelectric sensor featuring a visible red laser light source, long sensing range, fast response, and IO-Link communication, ideal for precise small object detection in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WSE4SLC-3P2236B01 | Photoelectric sensors
Brand: SICK
SKU: 1147214
Alternatively Known As: Through-beam photoelectric sensor, Laser photoelectric sensor, IO-Link photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 50 m (max 60 m)
- Light source: Laser, visible red light, 650 nm wavelength
- Laser class: 1
- Adjustment: IO-Link
- Digital output: PNP, light/dark switching, max output current ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Housing material: Plastic, Novodur
- Front screen: Plastic, PMMA
- Enclosure rating: IP66, IP67
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Connection: Male connector M8, 4-pin
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 m, max 60 m
- Laser class 1 with 650 nm wavelength
- IO-Link communication interface with 38.4 kBaud data rate
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- Slim plastic Novodur housing with IP66 and IP67 protection
- Complementary PNP digital output with light/dark switching mode
- Adjustable via IO-Link with off delay 100 ms and inverted switching output pin 2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure electrical connections according to safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP66/IP67 rated housing ensures long service life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE4SLC-3P2236B01 photoelectric sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
