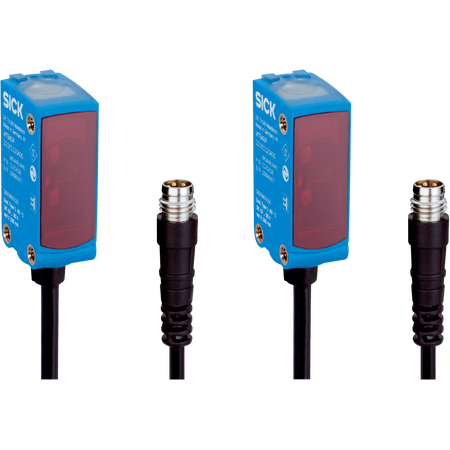

WSE4SP-31312100ZZZ | Photoelectric sensors
The SICK WSE4SP-31312100ZZZ is a through-beam photoelectric sensor designed for reliable object detection in industrial environments, featuring a robust IP66/IP67 rated housing and visible red LED light source.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WSE4SP-31312100ZZZ | Photoelectric sensors
Brand: SICK
SKU: 1140394
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, WSE4SP sensor, industrial object sensor
Technical Specifications
- Sensing range: 0 m to 12 m, recommended 0 m to 9 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Response time: ≤ 500 µs, switching frequency: 1000 Hz
- Output type: Push-pull PNP/NPN, max output current ≤ 100 mA
- Supply voltage: 10 V DC to 30 V DC, ripple ≤ 5 V pp
- Protection class: III
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Cable with M8 3-pin connector, 110 mm length
- Operating temperature: -40 °C to +60 °C
- Enclosure rating: IP66 and IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 41.9mm x 18.6mm x 12.1mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with a sensing range up to 12 m
- PinPoint LED visible red light with 635 nm wavelength
- High repeatability with 150 µs response time and 1000 Hz switching frequency
- Robust plastic VISTAL® housing with IP66 and IP67 protection
- LED indicators for alignment aid, power, and object detection status
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure mounting, complying with electrical safety standards.
Applications
- Industrial automation for object detection
- Detection of poorly remitting and tilted objects
- Use in harsh environments requiring IP66/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE4SP-31312100ZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
