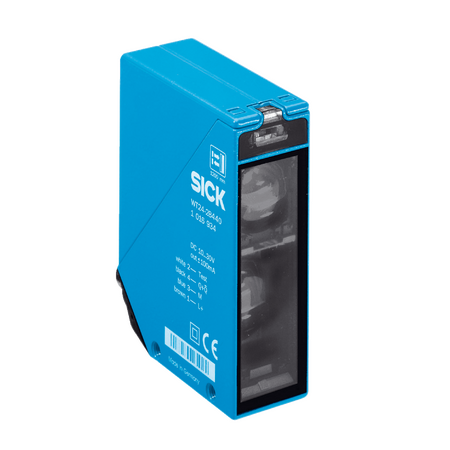

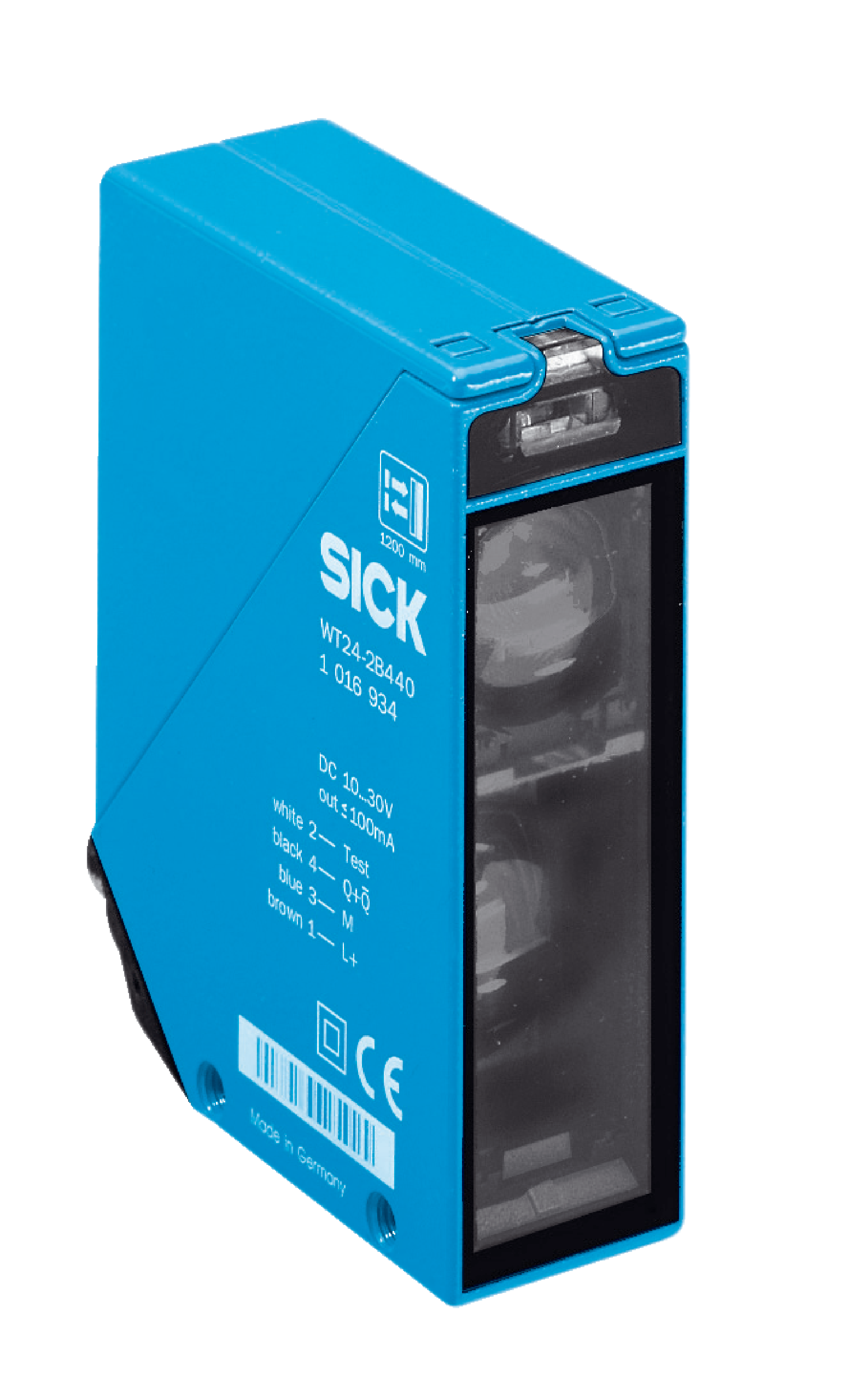

WT24-2B440 | Photoelectric sensors
The SICK WT24-2B440 is a robust photoelectric proximity sensor featuring background suppression, adjustable sensing range up to 1,200 mm, and high switching frequency, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WT24-2B440 | Photoelectric sensors
Brand: SICK
SKU: 1016934
Alternatively Known As: Photoelectric sensor, Proximity sensor, Background suppression sensor, Industrial photo sensor, SICK WT24 sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 100 mm to 1,200 mm
- Light source: Visible red LED
- Light spot size: Ø 40 mm at 1,200 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching output: NPN, PNP selectable
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, C, D
- Protection class: II
- Housing material: Metal zinc diecast
- Optics material: Plastic PMMA
- Enclosure rating: IP69K
- Operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.33 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular metal zinc diecast housing with plastic PMMA optics
- Visible red LED light source with Ø 40 mm light spot at 1,200 mm
- Adjustable sensing range from 100 mm to 1,200 mm via potentiometer
- Selectable switching mode: light/dark and PNP/NPN output
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Protection class II and enclosure rating IP69K for harsh environments
- Wide ambient operating temperature range from –40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT24-2B440 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
