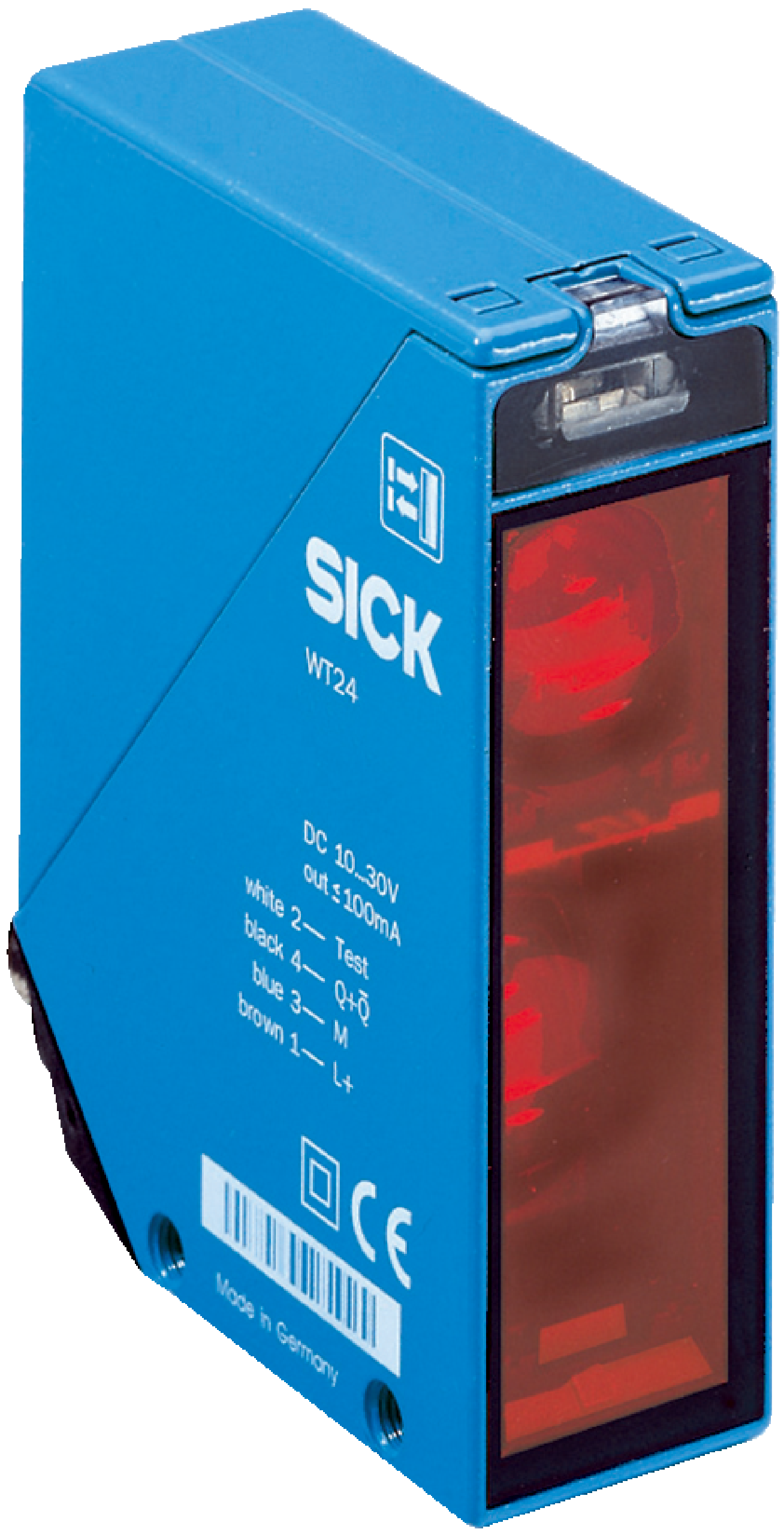

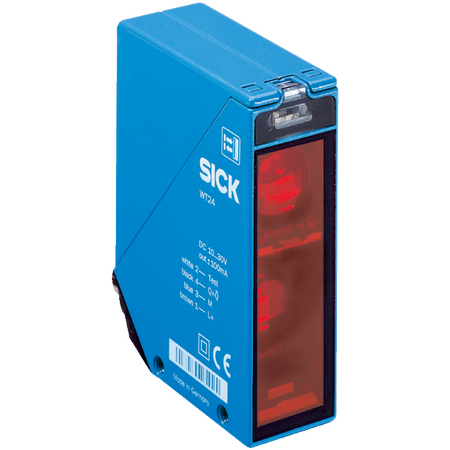

WT24-2V510S15 | Photoelectric sensors
The SICK WT24-2V510S15 is a robust photoelectric sensor featuring background suppression, suitable for precise object detection in industrial automation with a sensing range up to 2.5 meters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WT24-2V510S15 | Photoelectric sensors
Brand: SICK
SKU: 1023637
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Infrared photo sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching output: NPN, PNP selectable
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: M12, 5-pin plug
- Circuit protection: Types A, C, D
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.35 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular metal zinc diecast housing with plastic PMMA optics
- Sensing range from 100 mm to 2,500 mm using infrared LED light
- Selectable switching mode: light/dark and PNP/NPN output
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Alarm output and special device pin 5: MF
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK WT24-2V510S15 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
