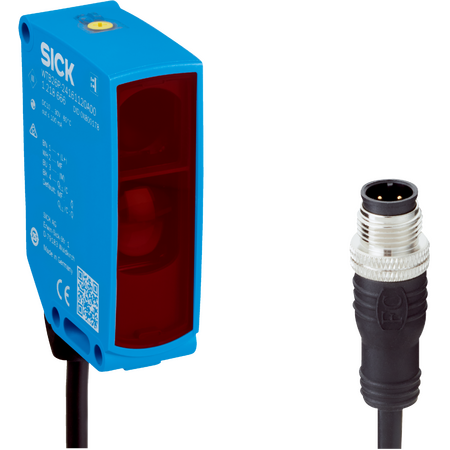

WTB26P-34161120A00 | Photoelectric sensors

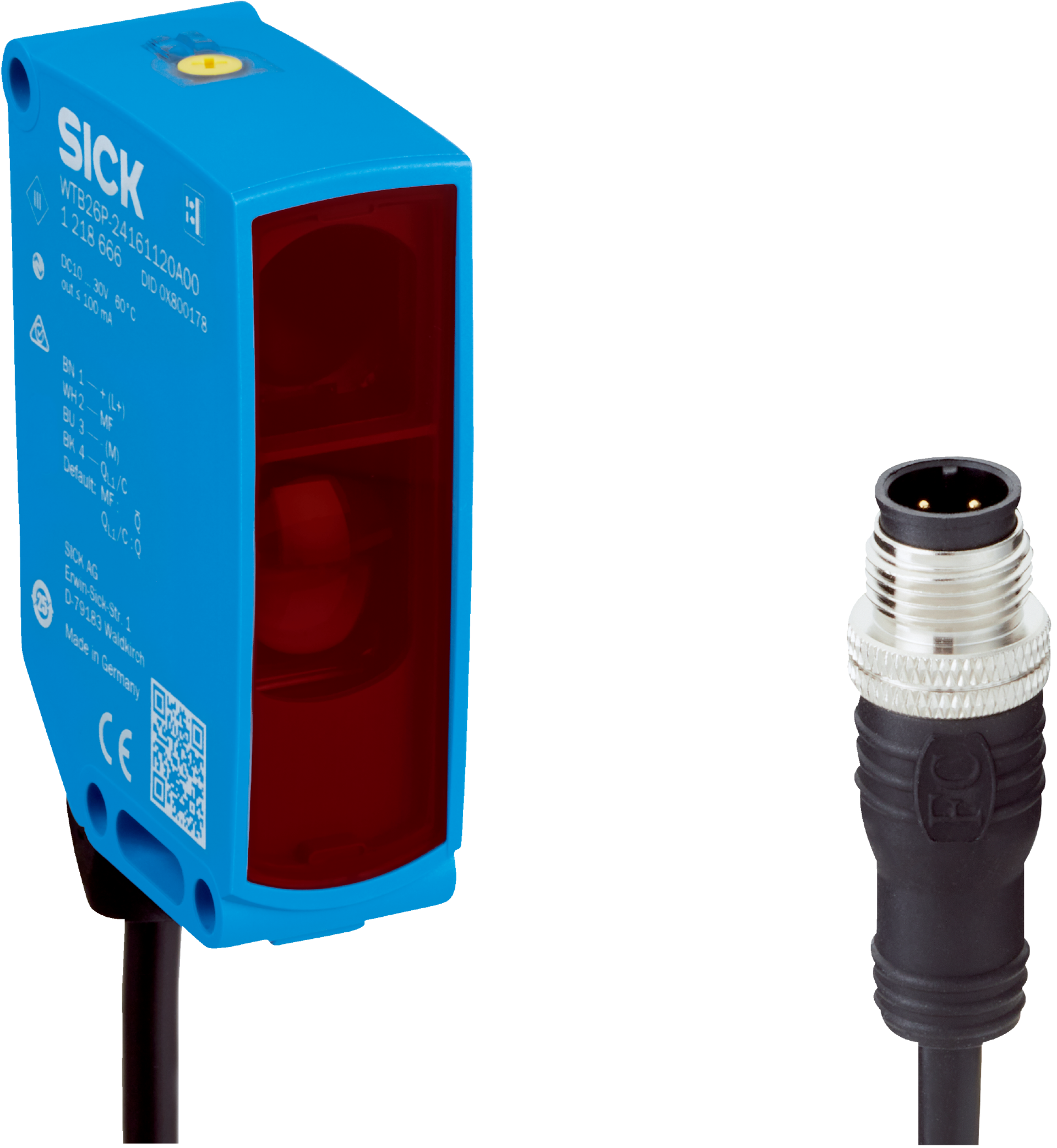

The SICK WTB26P-34161120A00 is a high-performance photoelectric proximity sensor featuring background suppression, adjustable sensing range, and IO-Link communication for advanced industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WTB26P-34161120A00 | Photoelectric sensors
Brand: SICK
SKU: 1218806
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, IO-Link photoelectric sensor, SICK WTB26P sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 30 mm to 1600 mm, adjustable switching threshold 180 mm to 1600 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Switching frequency: up to 1000 Hz
- Response time: ≤ 500 µs
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic VISTAL®
- Connection: Cable with M12 male connector, 4-pin, 318 mm length
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 30 mm to 1600 mm
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor configuration and Smart Task functions
- High switching frequency up to 1000 Hz
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Operating temperature range from -40 °C to +60 °C
- LED indicators for sensing range, operation, and object detection status
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure mounting according to industrial standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Packaging machinery
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with environmental regulations including China RoHS
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB26P-34161120A00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
