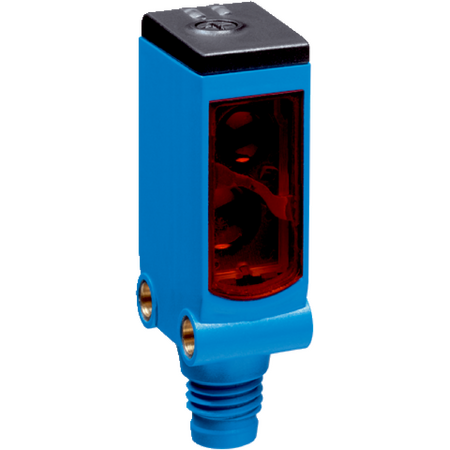

WTB4S-3N2131 | Photoelectric sensors
The SICK WTB4S-3N2131 is a slim photoelectric proximity sensor featuring background suppression, suitable for precise object detection in industrial automation with robust IP67/IP66 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WTB4S-3N2131 | Photoelectric sensors
Brand: SICK
SKU: 1042061
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, SICK photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Output type: NPN, light switching
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Circuit protection types: A, C, D
- Operating temperature range: -40 °C to +60 °C
- Storage temperature range: -40 °C to +75 °C
- Enclosure rating: IP67, IP66
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 2.5 mm at 50 mm distance
- Adjustment: 5-turn potentiometer
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 120 mm
- PinPoint LED visible red light with 650 nm wavelength
- Adjustment via 5-turn potentiometer
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Slim plastic ABS housing with IP67 and IP66 protection ratings
- Connector M8, 3-pin connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and presence detection in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable housing reduces waste through extended product life
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4S-3N2131 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
