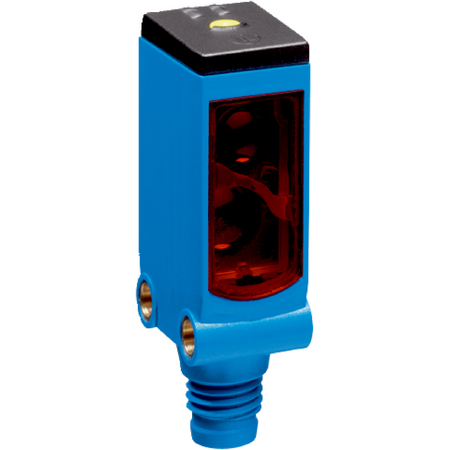

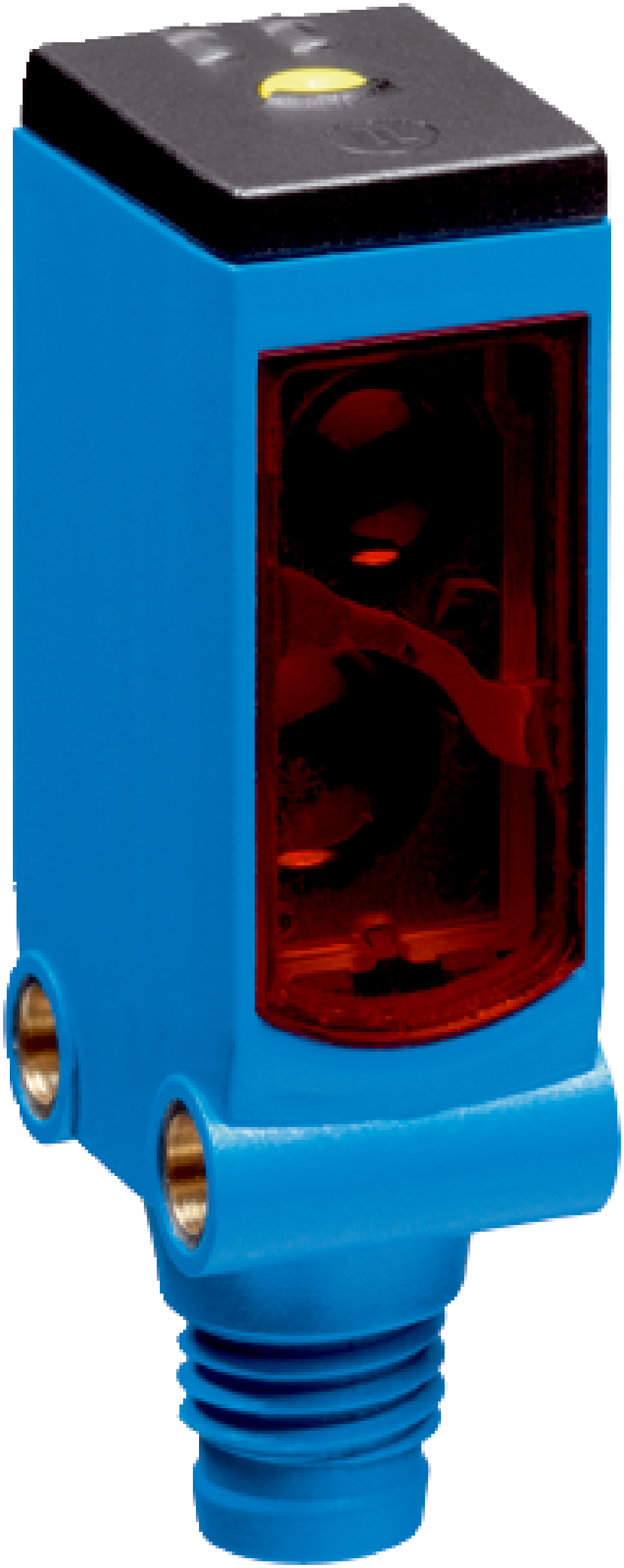

WTB4S-3P2234S07 | Photoelectric sensors
The SICK WTB4S-3P2234S07 is a slim photoelectric proximity sensor featuring background suppression, a sensing range up to 120 mm, and fast switching for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WTB4S-3P2234S07 | Photoelectric sensors
Brand: SICK
SKU: 1058763
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, PNP photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Protection class: III
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: < 1.2 ms
- Switching frequency: 1,000 Hz
- Circuit protection: A, C, D
- Light source: PinPoint LED, visible red light
- Wavelength: 650 nm
- Light spot size: Ø 2.5 mm at 50 mm distance
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Connection: Male connector M8, 4-pin
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Enclosure rating: IP67, IP66
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 120 mm
- PinPoint LED visible red light with 650 nm wavelength
- Fast response time under 1.2 ms
- Slim plastic ABS housing with IP67 and IP66 protection
- Male connector M8, 4-pin connection
- Switching frequency up to 1,000 Hz
- PNP digital output with light switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67/IP66 rated housing reduces environmental waste by extending product life
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4S-3P2234S07 photoelectric sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
