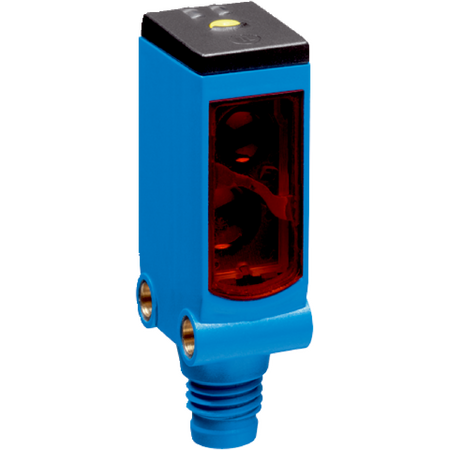

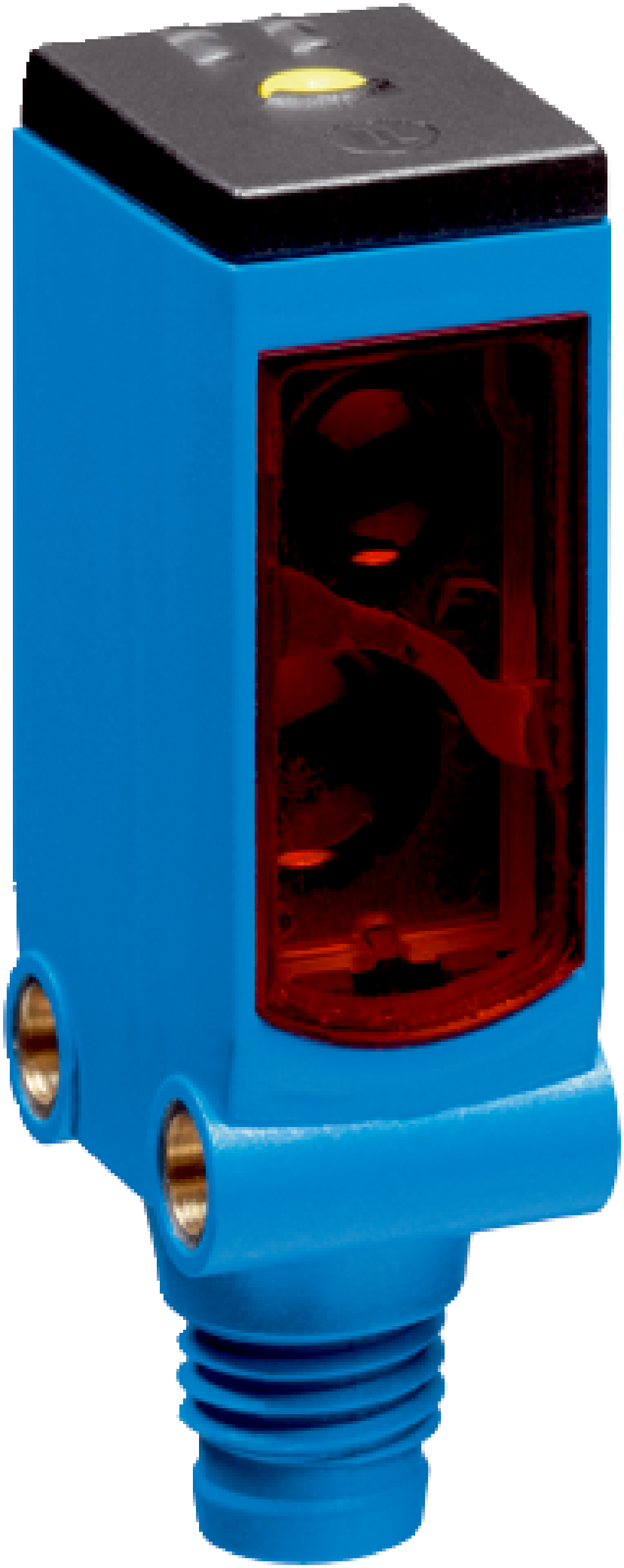

WTB4S-3P2264S01 | Photoelectric sensors
The SICK WTB4S-3P2264S01 is a slim photoelectric sensor featuring background suppression, suitable for precise object detection in industrial automation with robust IP67/IP66 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WTB4S-3P2264S01 | Photoelectric sensors
Brand: SICK
SKU: 1043652
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, PNP photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Ripple: < 5 V pp
- Output type: PNP digital output with light switching
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Connection: Male connector M8, 4-pin
- Operating temperature range: -40 °C to +60 °C
- Storage temperature range: -40 °C to +75 °C
- Enclosure rating: IP67 and IP66
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 15 mm to 150 mm
- PinPoint LED visible red light with 650 nm wavelength
- Slim plastic ABS housing with IP67 and IP66 protection
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Digital PNP output with light switching mode
- Adjustable via IO-Link and single teach-in button
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Positioning and presence detection in manufacturing lines
- Packaging and material handling systems
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4S-3P2264S01 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
