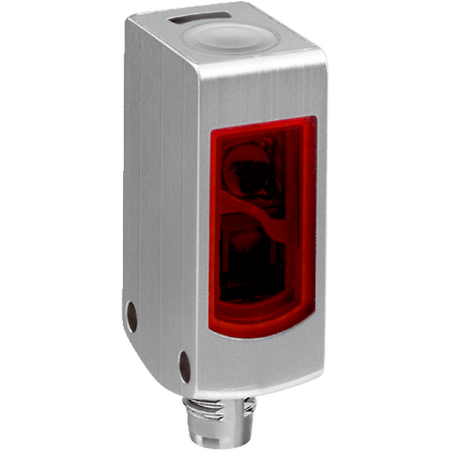

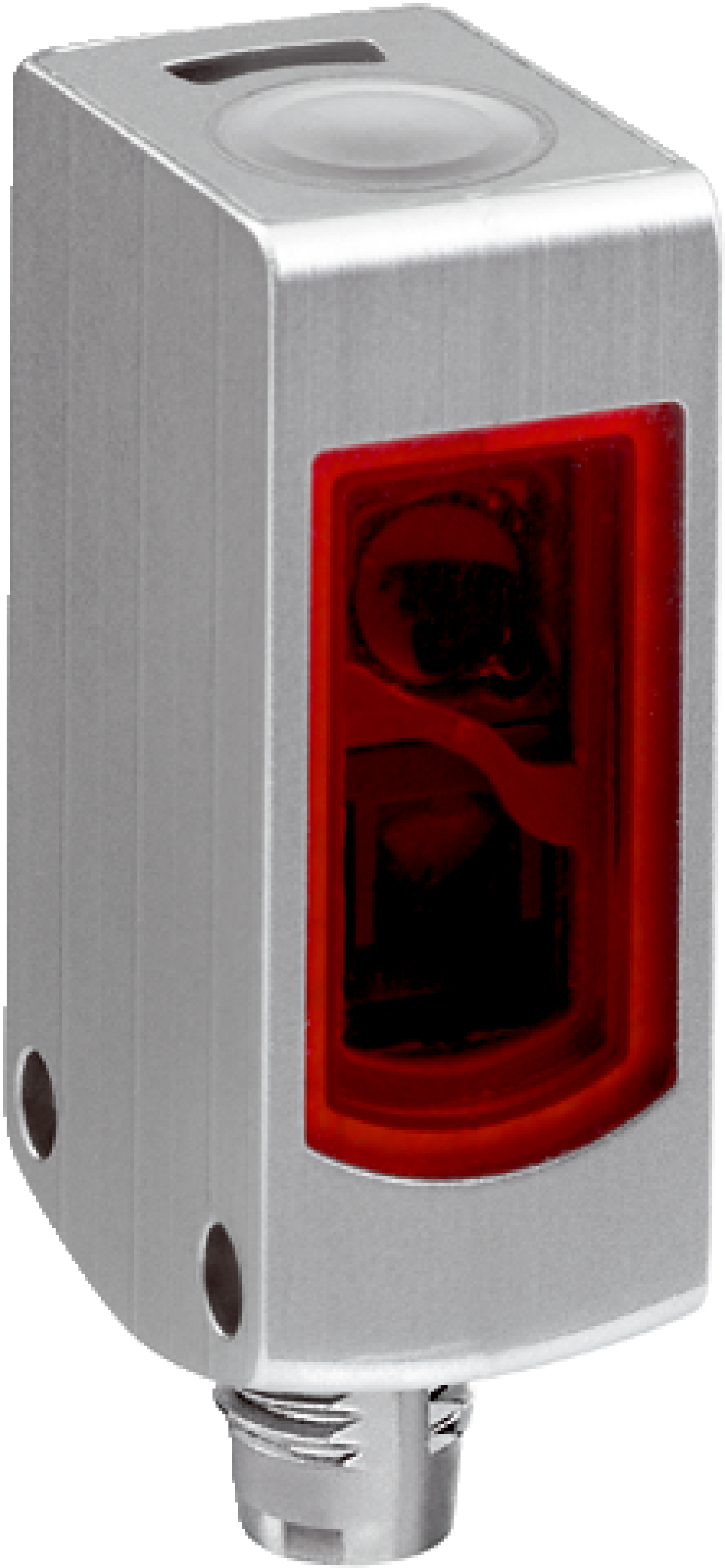

WTB4S-3P3132V | Photoelectric sensors
The SICK WTB4S-3P3132V is a durable photoelectric proximity sensor with background suppression, designed for precise object detection in hygienic and washdown zones, featuring a slim stainless steel housing and high IP protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WTB4S-3P3132V | Photoelectric sensors
Brand: SICK
SKU: 1046400
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Washdown photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 120 mm
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Circuit protection: A, B, C
- Housing: Metal stainless steel V4A (1.4404, 316L)
- Front screen: Plastic PMMA
- Cable: Plastic PVC, 150 mm length
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 120 mm
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Slim stainless steel V4A housing suitable for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1,000 Hz
- Cable with M8 3-pin connector, 150 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Background suppression sensing in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- Certified with China RoHS and ECOLAB for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB4S-3P3132V Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
