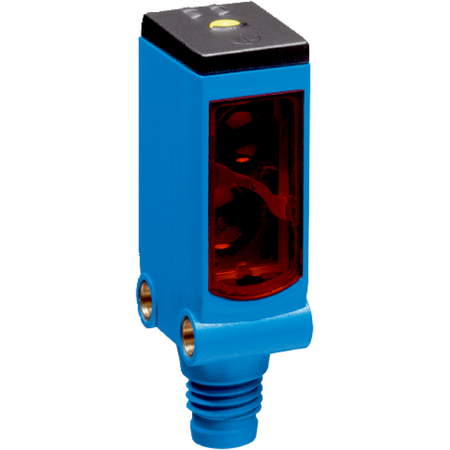

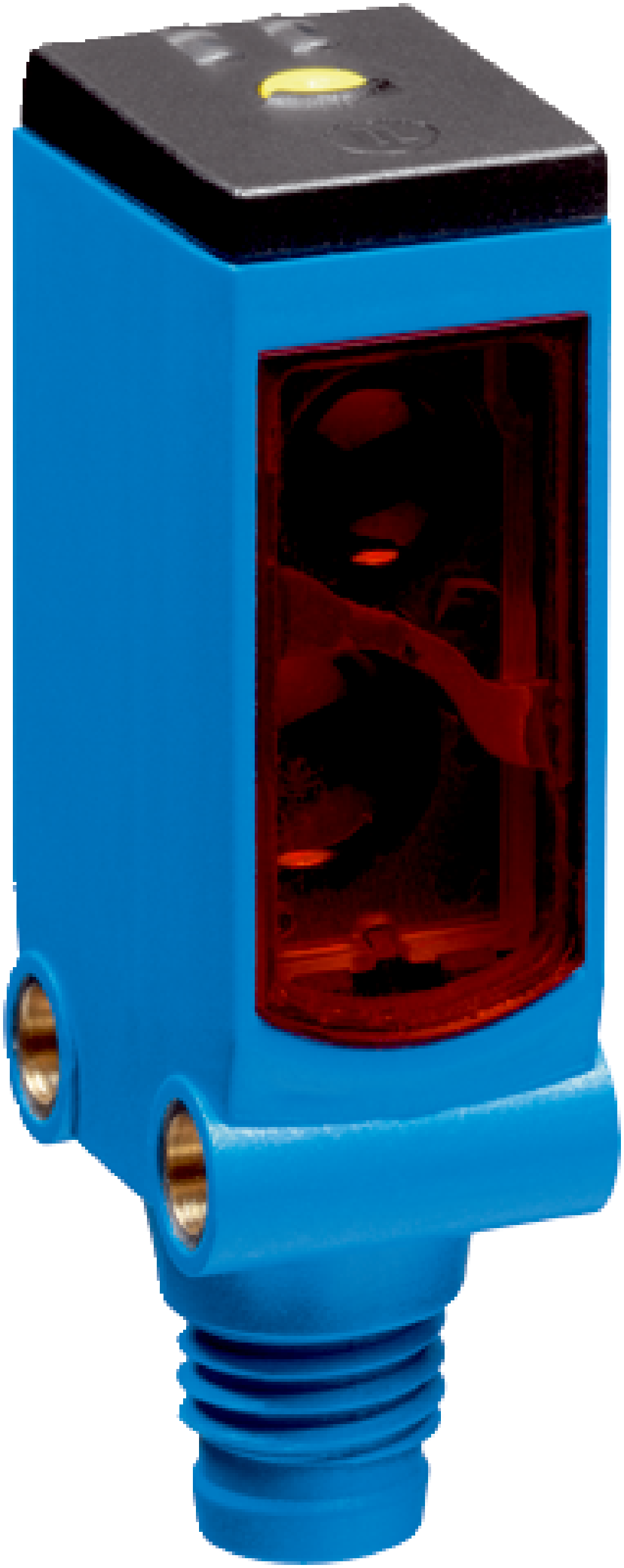

WTB4S-3P3234S04 | Photoelectric sensors
The SICK WTB4S-3P3234S04 is a slim photoelectric sensor featuring background suppression, suitable for precise object detection in industrial automation with robust IP67/IP66 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WTB4S-3P3234S04 | Photoelectric sensors
Brand: SICK
SKU: 1050600
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, SICK photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 150 mm (max 4 mm to 280 mm)
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Output type: PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic ABS, front screen PMMA
- Cable: PVC, 4-pin M8 connector
- Enclosure rating: IP67 and IP66
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 150 mm, max up to 280 mm
- PinPoint LED visible red light with 650 nm wavelength
- Slim plastic ABS housing with IP67 and IP66 protection
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- PNP digital output with light switching mode
- Cable with M8 male connector, 4-pin
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4S-3P3234S04 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
