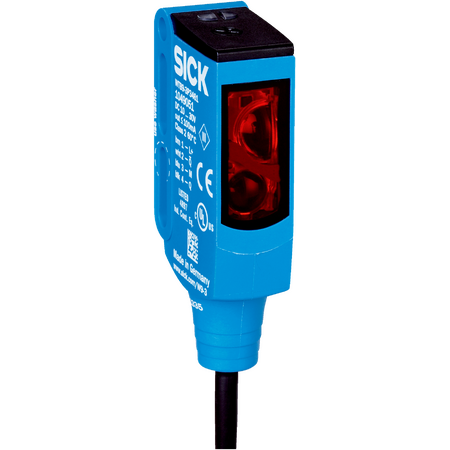

WTB9-3P3460S10 | Photoelectric sensors
The SICK WTB9-3P3460S10 is a durable photoelectric proximity sensor featuring background suppression, suitable for precise object detection in industrial automation with robust IP66-IP69K protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: WTB9-3P3460S10 | Photoelectric sensors
Brand: SICK
SKU: 1149759
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Industrial photo sensor, SICK proximity sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: < 0.333 ms
- Switching frequency: 1,500 Hz
- Connection: Cable with M12 male connector, 4-pin, 120 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 80 g
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- Sensing range pre-set to 100 mm, max range 20 mm to 350 mm
- PinPoint LED light source with 650 nm wavelength
- High switching frequency of 1,500 Hz and fast response time under 0.333 ms
- Cable with M12 male connector, 4-pin, 120 mm length
- Robust housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper wiring and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China RoHS and ECOLAB environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9-3P3460S10 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
