X-muting arm kit, mounting on the device | Mounting systems

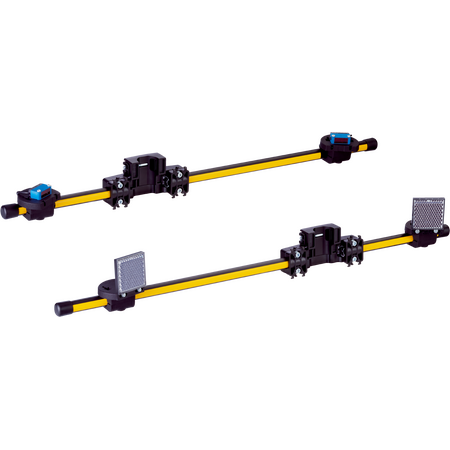

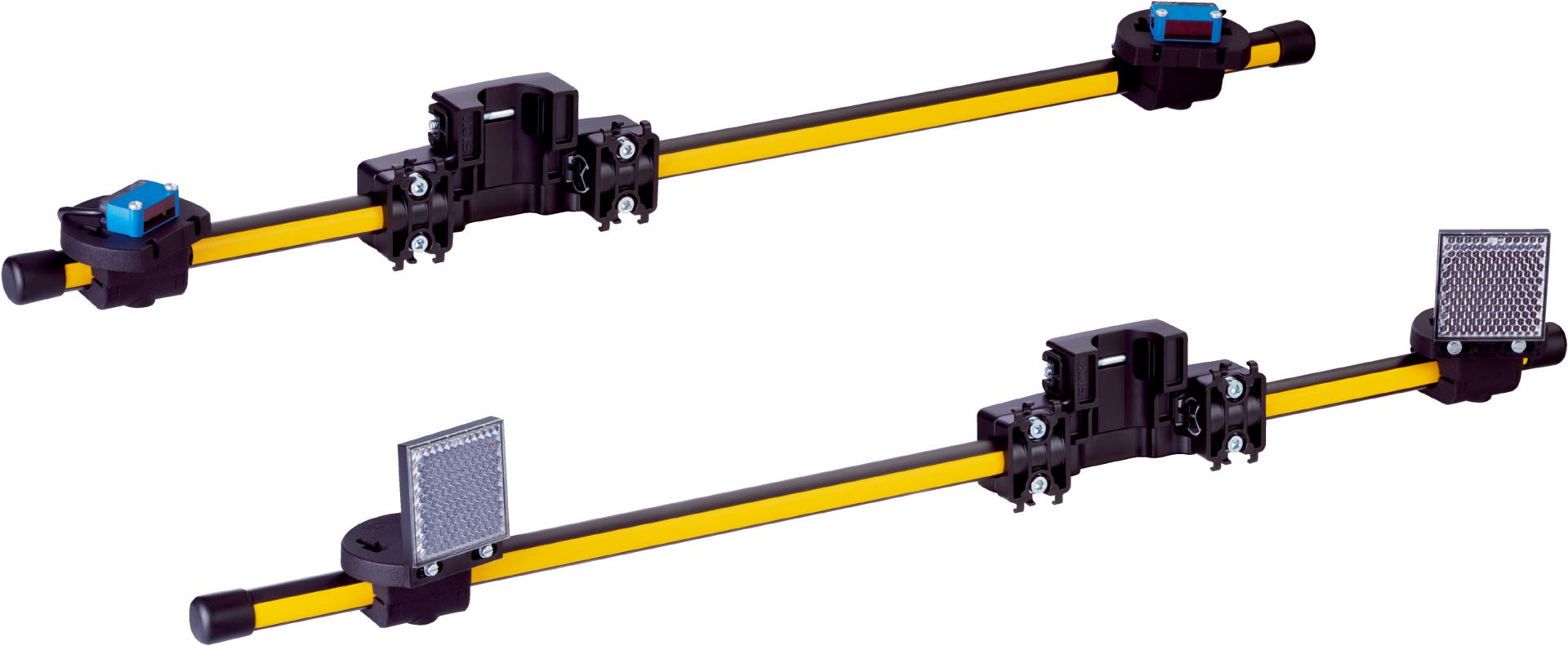

The SICK X-Muting Arm Kit is a mounting system accessory designed for 2-sensor cross muting on deTec and deTem safety devices, featuring pre-assembled sensors and reflectors for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: X-muting arm kit, mounting on the device | Mounting systems
Brand: SICK
SKU: 2139900
Alternatively Known As: Muting arm kit, cross muting arm kit, safety sensor mounting kit, muting sensor arm assembly
Technical Specifications
- Accessory group: Mounting systems
- Accessory family: Muting arms
- Suitable for: deTec4, deTec4 Ex II 3GD, deTec4 HG, deTem4, deTem4 A/P
- Items supplied: 2 × GL6G-P0211S98 muting sensors, 2 × P250 reflectors, 4 × X-muting brackets, 2 × long muting arms, 2 × short muting arms, 2 × muting arm brackets for deTec/deTem
- Dimensions (H x L x W): 100mm x 400mm x 300mm
- Weight: 1.5 kg
Key Features
- Pre-assembled and pre-adjusted muting sensors and reflectors
- Includes 2 × GL6G-P0211S98 muting sensors and 2 × P250 reflectors
- Comes with 4 × X-muting brackets and muting arms (long and short)
- Designed for 2-sensor cross muting applications
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and mounting procedures to ensure compliance and optimal performance.
Applications
- Mounting on both sides of deTec or deTem housing profiles
- Industrial safety systems requiring 2-sensor cross muting
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances safety system efficiency reducing downtime and waste
- Durable components designed for long service life minimizing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK X-Muting Arm Kit is available for immediate purchase, ideal for industrial safety system installations requiring reliable 2-sensor cross muting.
