YF2A13-100UB1M2A13 | Connectors and cables

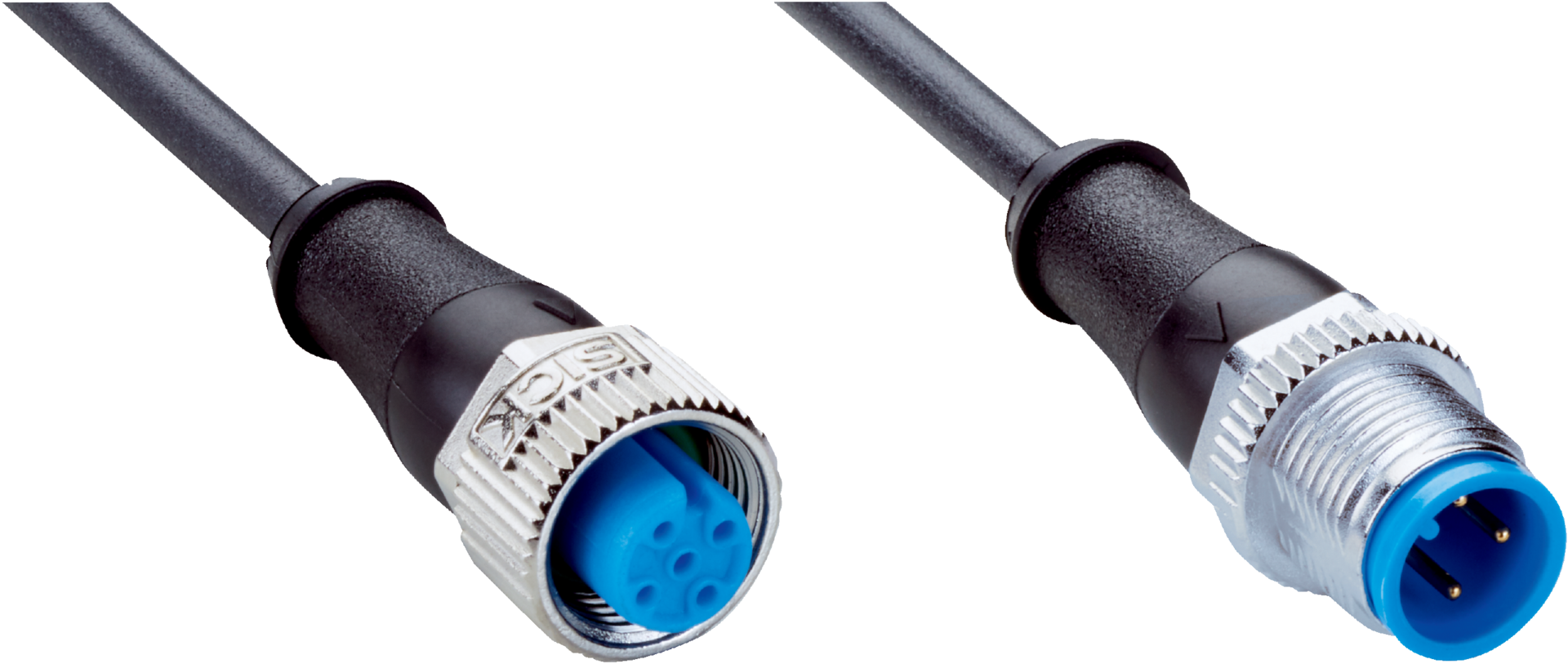

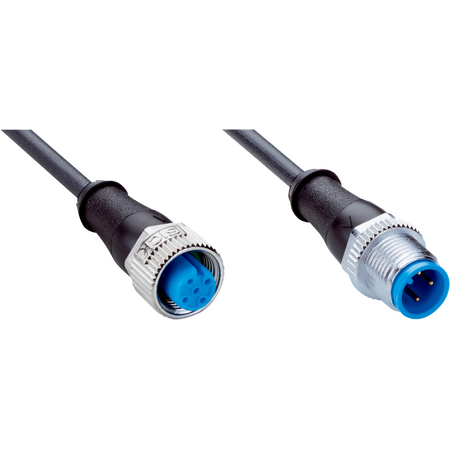

The SICK YF2A13-100UB1M2A13 is a durable M12 3-pin sensor/actuator cable with screw locking connectors, designed for industrial applications including robotics and drag chain operation, featuring high flexibility and robust materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A13-100UB1M2A13 | Connectors and cables
Brand: SICK
SKU: 2145786
Alternatively Known As: M12 3-pin sensor cable, M12 actuator cable, M12 PUR cable, industrial sensor connector cable
Technical Specifications
- Connection type head A: Female connector, M12, 3-pin, straight, A-coded
- Connection type head B: Male connector, M12, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable: 10 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Torsion force: 180° per meter
- Torsion cycles: 2,000,000
- Enclosure rating: IP65 / IP66K / IP67
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.15 kg
Key Features
- Female connector, M12, 3-pin, straight, A-coded on head A
- Male connector, M12, 3-pin, straight, A-coded on head B
- Screw connection locking plug connector
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 10 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm, conductor cross section 0.34 mm²
- Unshielded cable
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Rated voltage: 300 V AC, test voltage 2,500 V AC
- Current loading: 4 A
- IP65 / IP66K / IP67 enclosure rating
- Torsion force 180° per meter with 2,000,000 torsion cycles
- Flame retardant according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A13-100UB1M2A13 M12 3-pin sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
