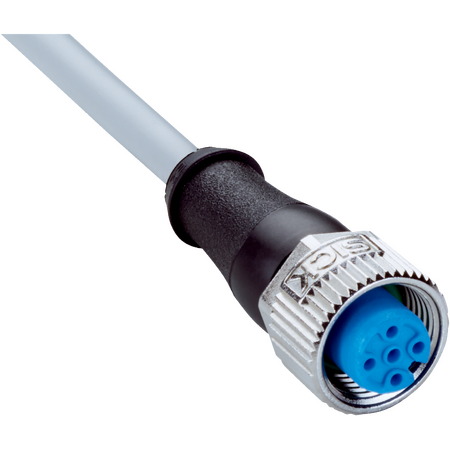

YF2A13-C60VB1XLEAX | Connectors and cables

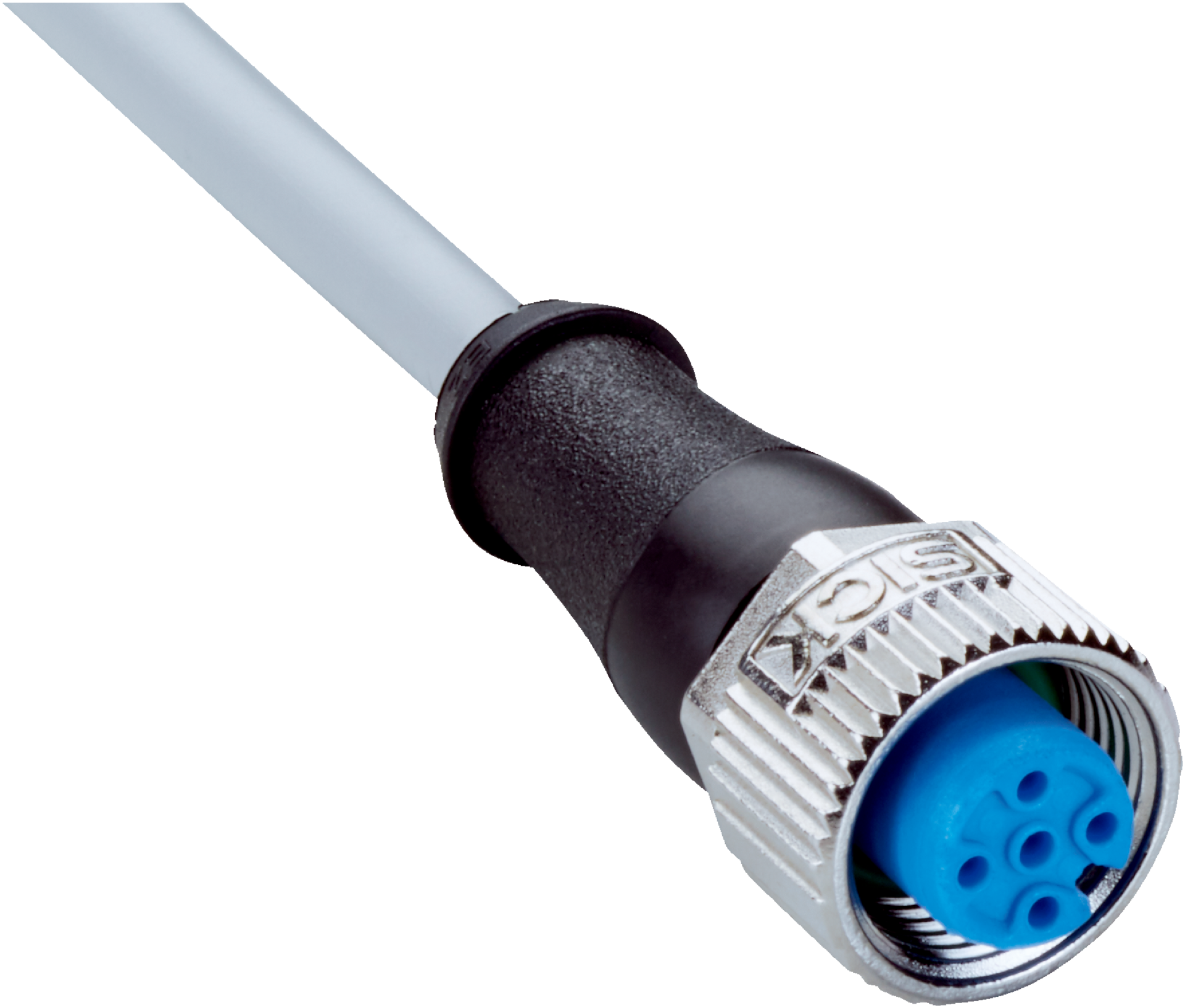

The SICK YF2A13-C60VB1XLEAX is a high-quality M12 female connector with flying leads, designed for sensor and actuator cable applications in chemical and uncontaminated zones, featuring robust materials and IP65/IP66K/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A13-C60VB1XLEAX | Connectors and cables
Brand: SICK
SKU: 2145796
Alternatively Known As: M12 Female Connector Cable, Sensor Connector Cable, Actuator Cable M12, SICK Connector Cable
Technical Specifications
- Connection type head A: Female connector, M12, 3-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.6 m, 3-wire, PVC
- Jacket material: PVC
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: +5 °C to +85 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 60mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 3-pin, straight, A-coded connector
- Screw locking plug connector for secure connection
- Connector made of durable TPU material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material ensuring protection
- Cable length 0.6 m with 3-wire PVC jacket
- Unshielded cable with 0.34 mm² conductor cross section
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range from -30 °C to +85 °C
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Sensor and actuator cable applications
- Zones with chemicals
- Uncontaminated zones requiring reliable electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A13-C60VB1XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring reliable and durable connections.
