YF2A14-060UB3M2A14 | Connectors and cables

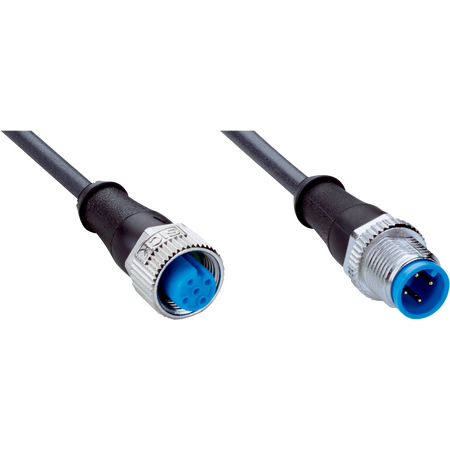

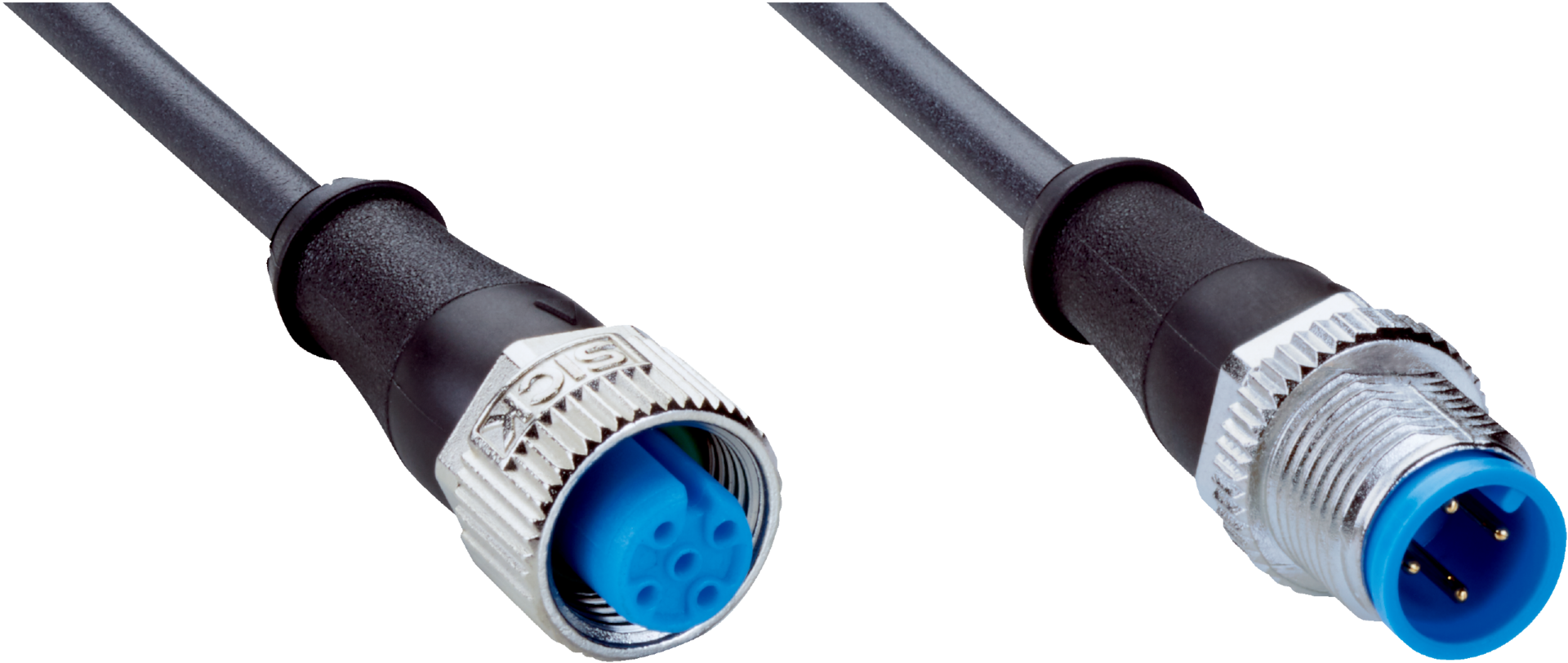

The SICK YF2A14-060UB3M2A14 is a durable M12 4-pin sensor/actuator cable with screw locking connectors, designed for industrial automation applications including robots and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A14-060UB3M2A14 | Connectors and cables
Brand: SICK
SKU: 2102153
Alternatively Known As: M12 4-pin sensor cable, M12 4-pin actuator cable, SICK sensor cable, industrial sensor connector cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Male connector, M12, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable: 6 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,500 V AC
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 6000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, straight, A-coded on head A
- Male connector, M12, 4-pin, straight, A-coded on head B
- Screw connection locking plug
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 6 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Unshielded cable
- Bending radius for flexible use > 10 x cable diameter
- Operating temperature range: -25 °C to +80 °C (flexible use)
- Rated voltage: 300 V AC, test voltage 2,500 V AC
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Torsion force: 180° / 1 m with 2,000,000 torsion cycles
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1 and IEC 60332-2-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A14-060UB3M2A14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotic applications.
