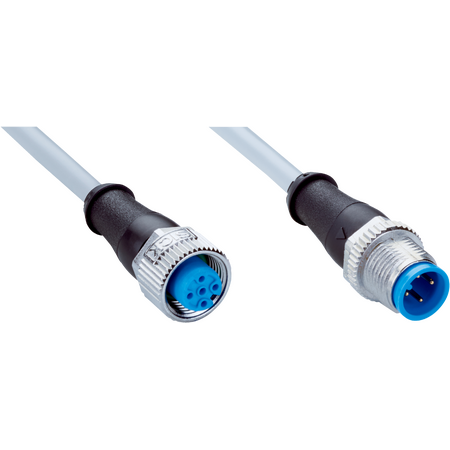

YF2A14-200VB3M2A14 | Connectors and cables
The SICK YF2A14-200VB3M2A14 is a durable M12 4-pin sensor/actuator cable with screw locking connectors, designed for industrial automation applications requiring high protection and reliable connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A14-200VB3M2A14 | Connectors and cables
Brand: SICK
SKU: 2096602
Alternatively Known As: M12 4-pin sensor cable, M12 actuator connector cable, Industrial sensor connector cable, M12 screw lock cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Male connector, M12, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 20 m
- Cable type: 4-wire, PVC jacket
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Reference voltage: 250 V AC / 250 V DC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 20000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female and male M12, 4-pin, straight, A-coded connectors
- Screw locking plug connector for secure connection
- Connector made of TPU with zinc die-cast nickel-plated locking nut
- Cable: 20 m, 4-wire PVC jacket, gray color
- Unshielded cable with 0.34 mm² conductor cross section
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary –30 °C to +80 °C, Head –25 °C to +85 °C
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
- Current loading capacity: 4 A
- Nominal voltage: 300 V AC, Test voltage: 2000 V AC
- Overvoltage category III and rated impulse voltage 2.5 kV
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for machinery and equipment requiring IP65/IP66K/IP67 rated connectors
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A14-200VB3M2A14 connector cable is available for immediate purchase, ideal for industrial automation and sensor/actuator connection applications.
