YF2A15-040VB5M2A15 | Connectors and cables

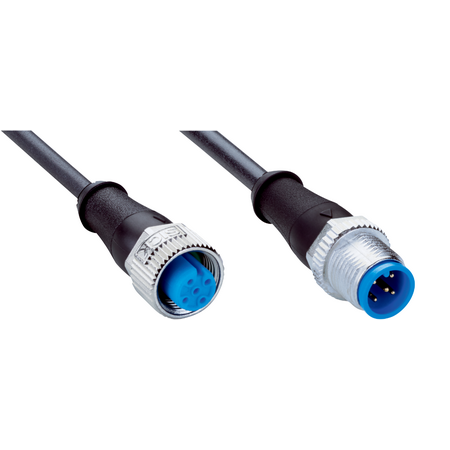

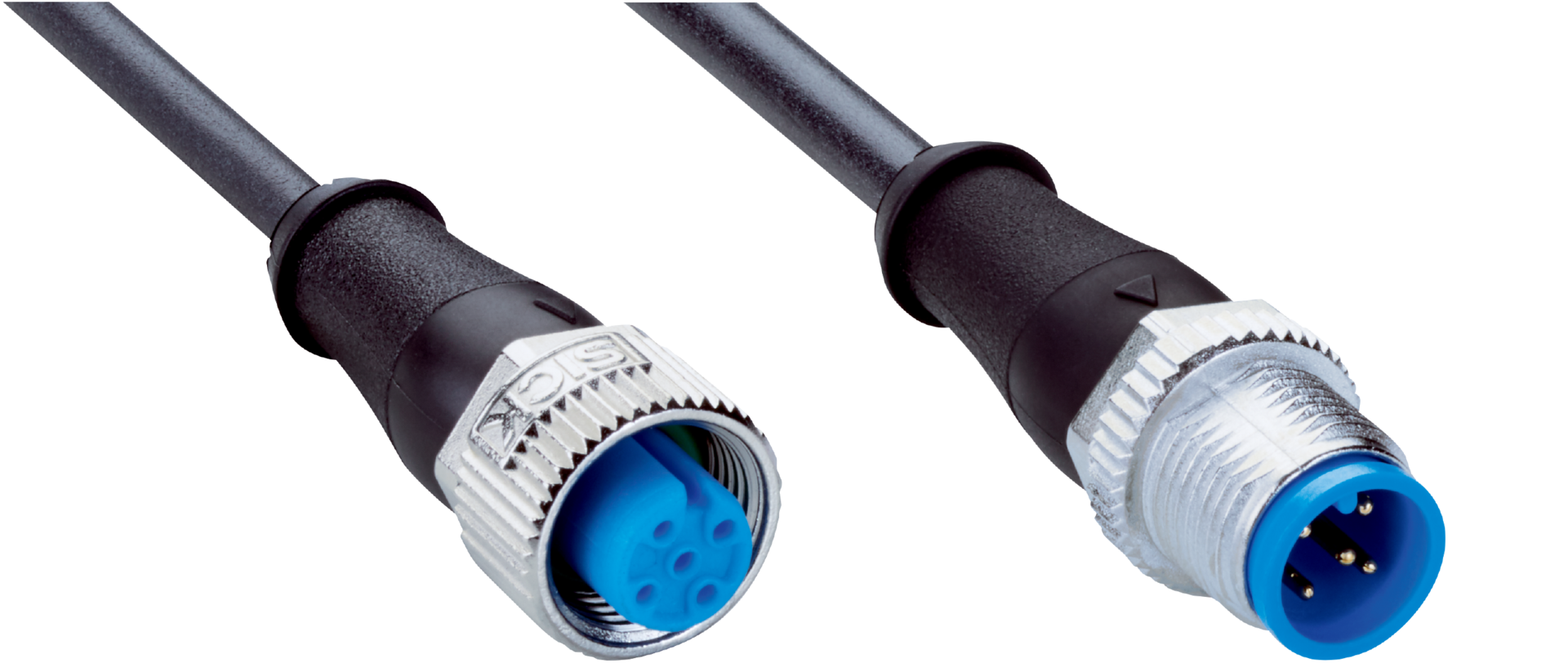

The SICK YF2A15-040VB5M2A15 is a durable M12 5-pin sensor/actuator cable connector with screw locking, designed for industrial automation applications requiring high protection and chemical resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A15-040VB5M2A15 | Connectors and cables
Brand: SICK
SKU: 2127687
Alternatively Known As: M12 5-pin sensor cable, M12 actuator connector, industrial sensor cable, M12 screw lock connector
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 4 m, 5-wire, PVC
- Jacket material: PVC
- Cable diameter: 5.2 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 13mm x 4000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 5-pin, straight A-coded connectors
- Screw locking plug connector for secure connection
- Connector material made of TPU with zinc die-cast nickel-plated locking nut
- Cable length of 4 meters with 5-wire PVC jacket
- Operating temperature range from -30°C to +85°C depending on use
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
- High insulation resistance of 100 MΩ and rated impulse voltage of 1.5 kV
- Enclosure rating IP65 / IP66K / IP67 for robust protection
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper connection and compliance with electrical standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for environments requiring IP65/IP66K/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A15-040VB5M2A15 connector cable is available for immediate purchase, ideal for industrial automation and sensor/actuator connection applications.
