YF2A15-C60VB5N2A15 | Connectors and cables

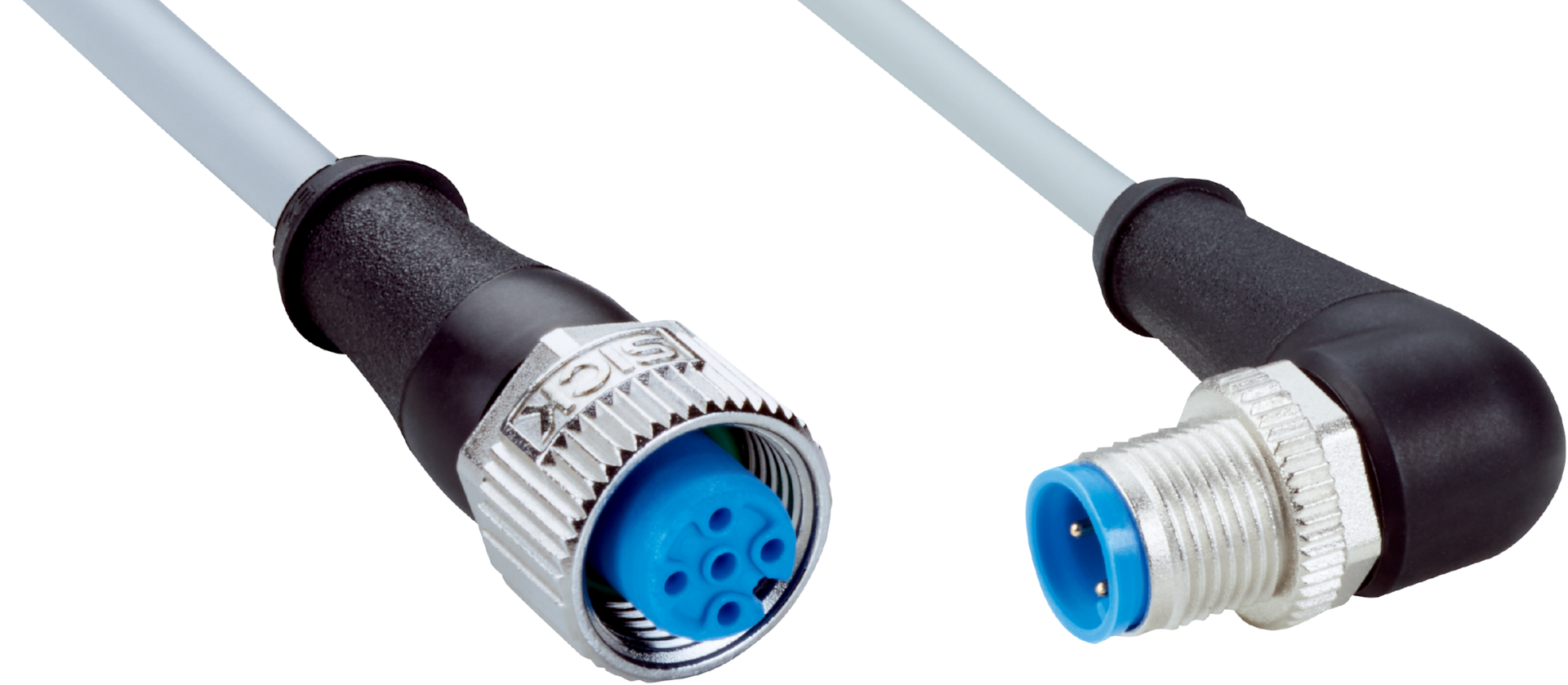

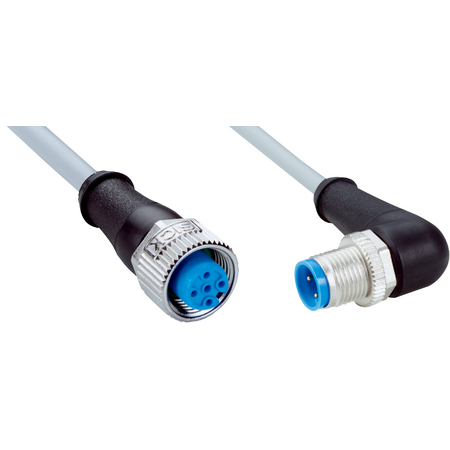

The SICK YF2A15-C60VB5N2A15 is a durable M12 5-pin sensor/actuator cable connector with screw locking, designed for industrial automation applications requiring robust environmental protection and reliable electrical performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A15-C60VB5N2A15 | Connectors and cables
Brand: SICK
SKU: 2145576
Alternatively Known As: M12 5-pin sensor cable connector, M12 5-pin actuator cable, Industrial sensor connector M12, SICK sensor cable M12
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, angled, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.6 m, 5-wire, PVC jacket
- Cable diameter: 5.2 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Reference voltage: 125 V AC / 125 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 60mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 5-pin, straight, A-coded on head A
- Male connector M12, 5-pin, angled, A-coded on head B
- Screw connection locking plug
- Connector material made of TPU with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material for enhanced sealing
- Cable length 0.6 m with 5-wire PVC jacket in gray
- Unshielded cable with 0.34 mm² conductor cross section
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
- Operating temperature range: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Current loading up to 4 A
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Overvoltage category III
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling and connectors to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for environments requiring IP65/IP66K/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant materials reduce fire risk and environmental impact
- Durable construction extends product life reducing waste
- Compliant with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A15-C60VB5N2A15 M12 5-pin sensor/actuator cable connector is available for immediate purchase, ideal for industrial automation and sensor connection applications.
