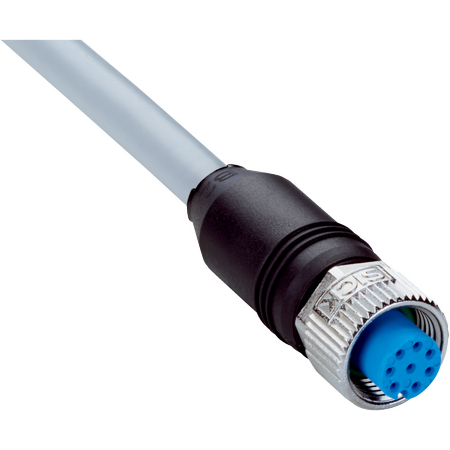

YF2A18-080VA5XLEAX | Connectors and cables

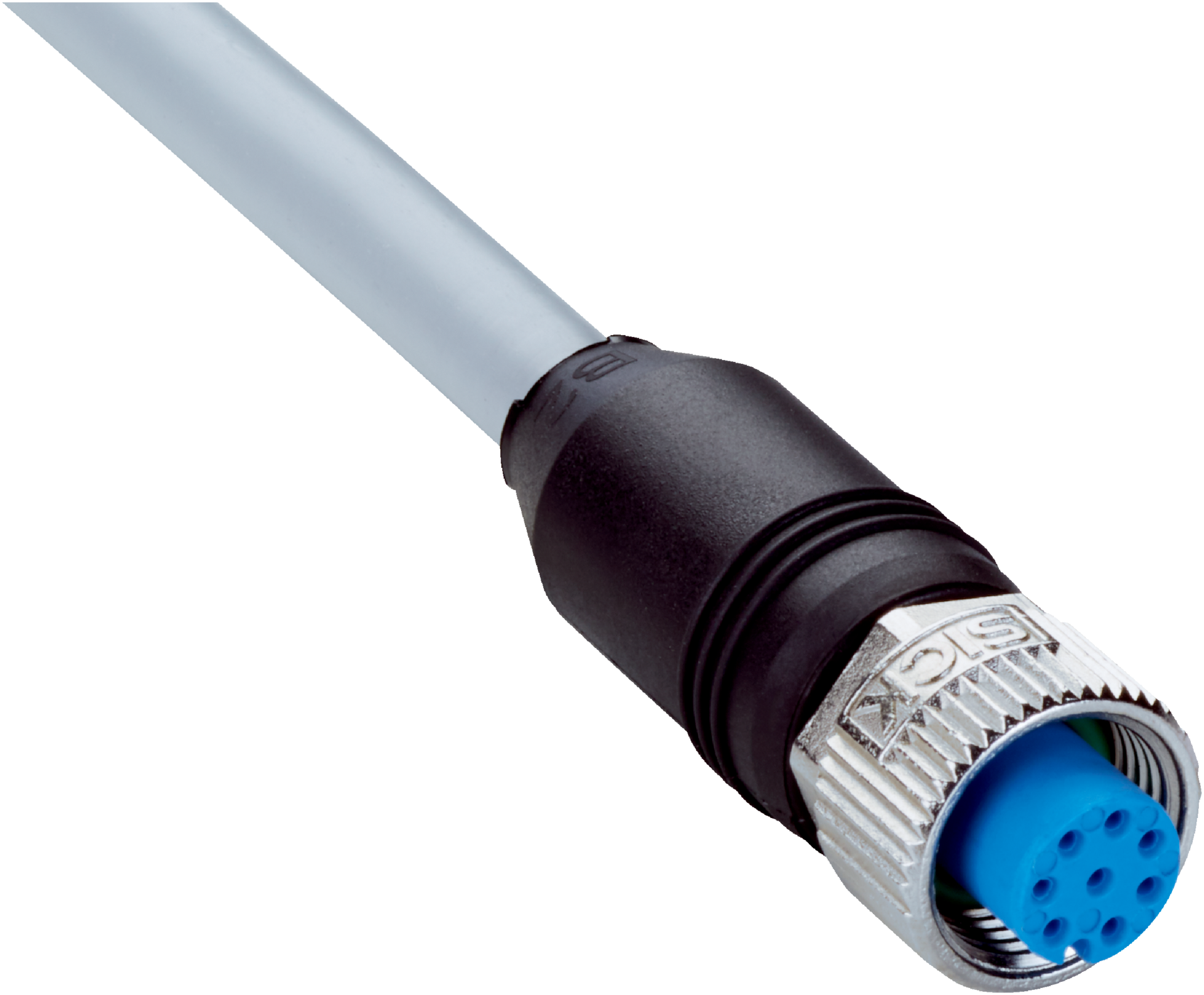

The SICK YF2A18-080VA5XLEAX is a durable M12 8-pin female connector with flying leads, designed for sensor and actuator cable applications in industrial environments with high protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A18-080VA5XLEAX | Connectors and cables
Brand: SICK
SKU: 2116113
Alternatively Known As: M12 8-pin female connector cable, Sensor actuator cable M12, Industrial connector flying leads
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 8 m, 8-wire, PVC jacket
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1-2
- Dimensions (H x L x W): 20mm x 80mm x 13mm
- Weight: 0.2 kg
Key Features
- Female M12, 8-pin, straight, A-coded connector
- Screw connection locking plug
- Connector made of TPU with zinc die-cast nickel-plated locking nut
- Cable length 8 m, 8-wire PVC jacket, gray color
- Operating temperature range: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Flame retardant cable according to UL 1581 VW1 / CSA FT1 / IEC 60332-1-2
- Current loading up to 2 A, nominal voltage 300 V AC
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for machinery and equipment requiring IP65/IP66K/IP67 rated connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant materials enhance safety and reduce fire risk
- Durable construction reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A18-080VA5XLEAX connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
