YF2A28-250UA6XLEAX | Connectors and cables

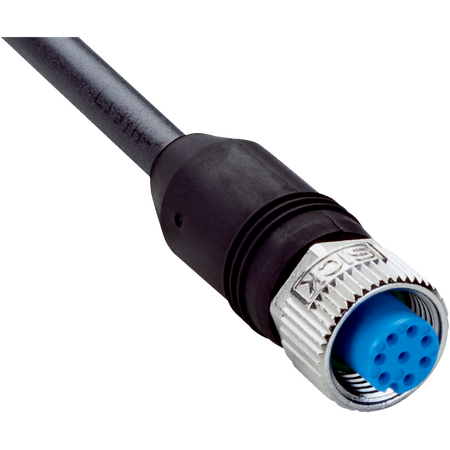

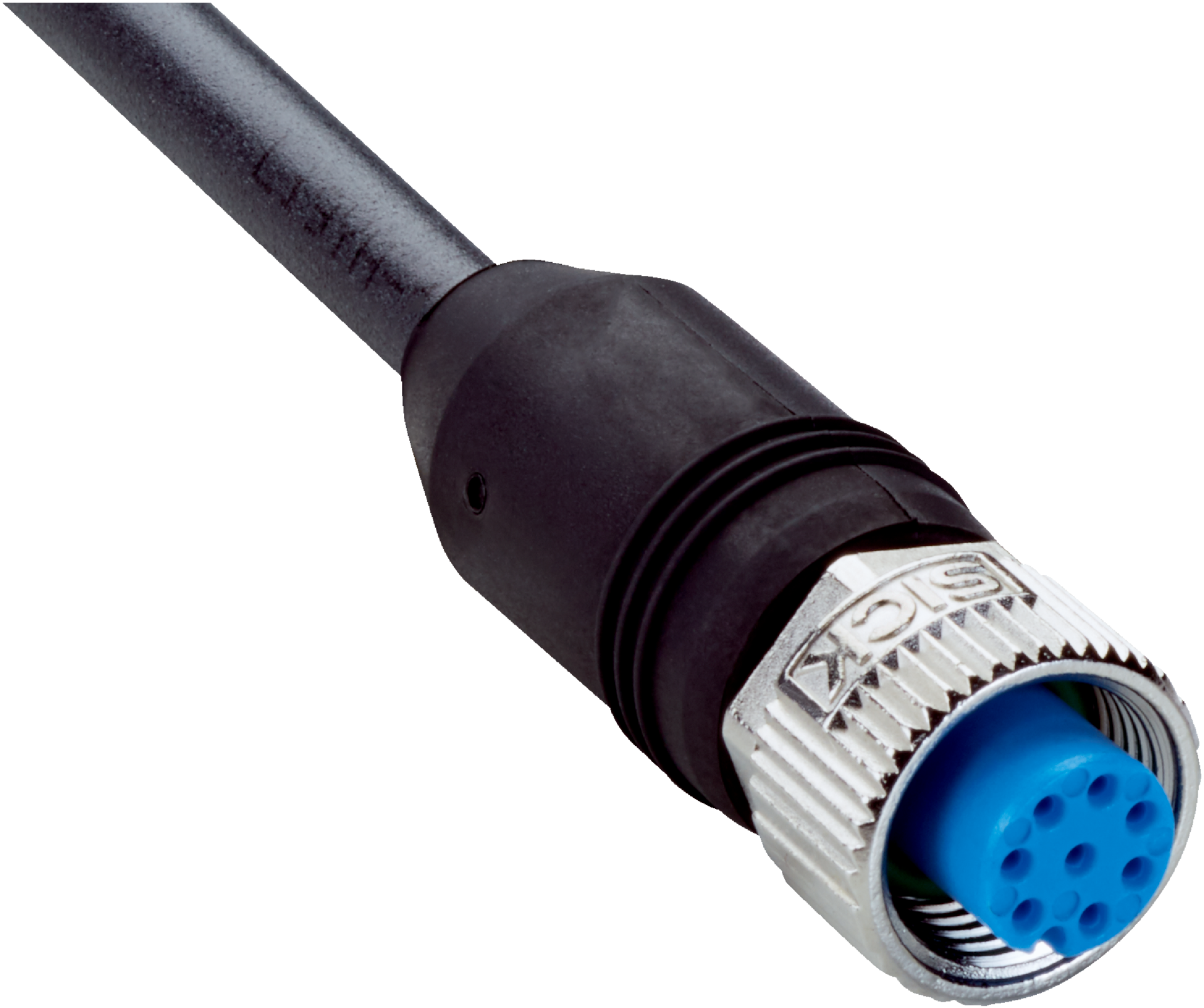

The SICK YF2A28-250UA6XLEAX is a high-performance sensor/actuator cable featuring a female M12 8-pin connector and 25 m PUR halogen-free cable, designed for robust industrial applications including robotics and drag chain operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A28-250UA6XLEAX | Connectors and cables
Brand: SICK
SKU: 2113268
Alternatively Known As: M12 Sensor Cable, 8-pin M12 Connector Cable, PUR Sensor Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 25 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Bending cycles: 5,000,000
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 25000mm x 13mm
- Weight: 0.5 kg
Key Features
- Female M12, 8-pin, straight, A-coded connector
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- 25 m PUR halogen-free cable, 8-wire, shielded
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- High durability with 5,000,000 bending cycles and 2,000,000 torsion cycles
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact and improves safety in case of fire
- Durable materials extend product life reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK YF2A28-250UA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
