YF2A64-100UE1XLEAX | Connectors and cables

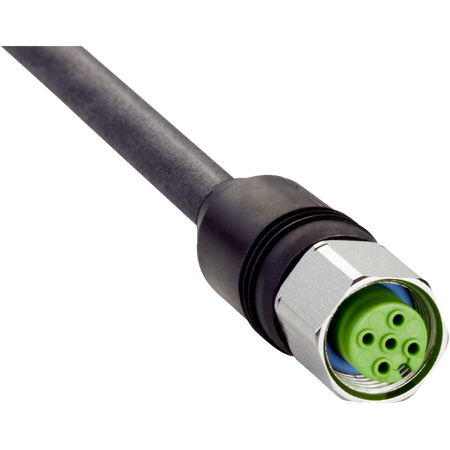

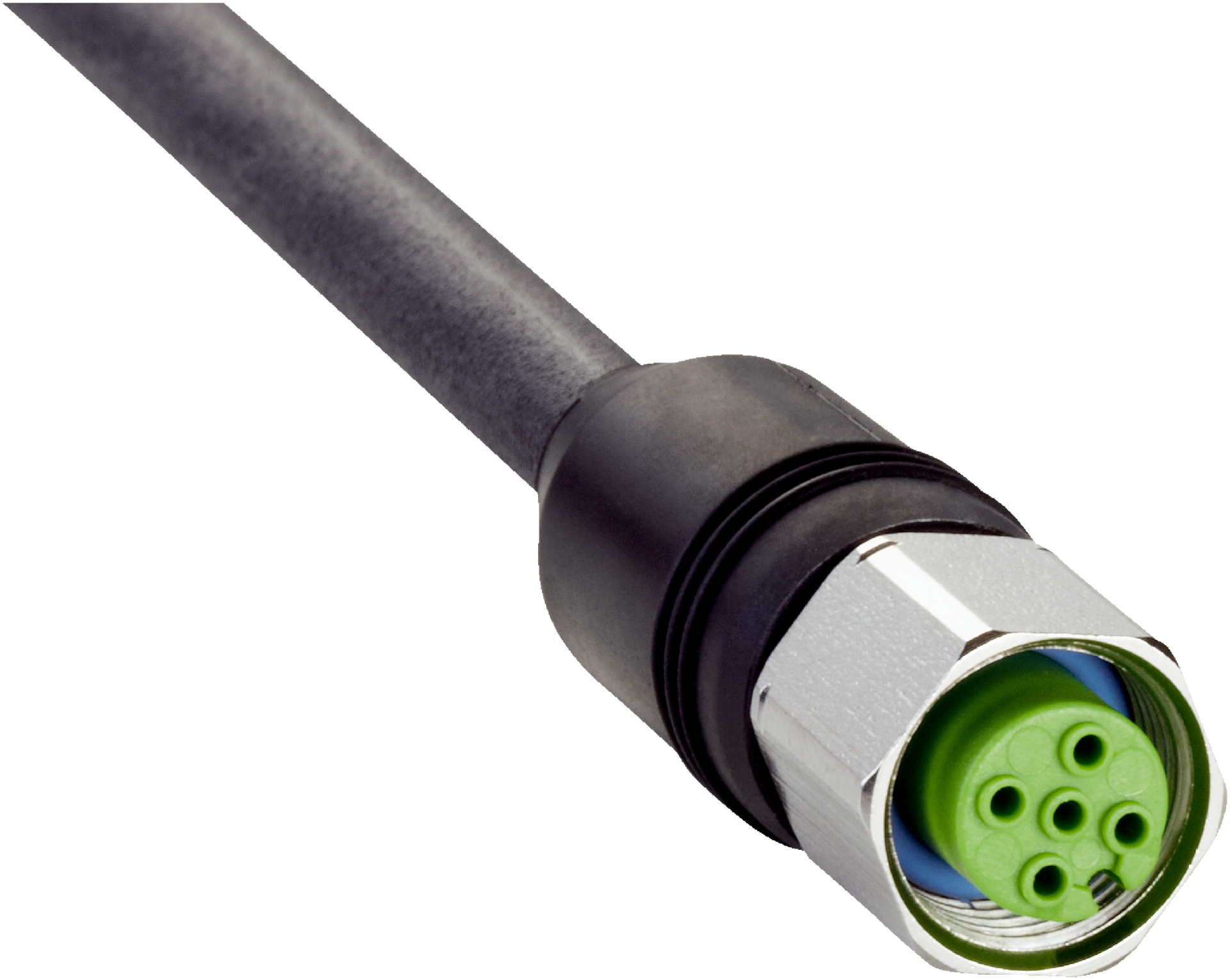

The SICK YF2A64-100UE1XLEAX is a durable M12 female connector with a 10 m PUR halogen-free cable, designed for use in uncontaminated zones, oily environments, and robot drag chain operations with IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2A64-100UE1XLEAX | Connectors and cables
Brand: SICK
SKU: 6054494
Alternatively Known As: M12 Female Connector Cable, SICK M12 Connector, Industrial Sensor Cable, Robot Drag Chain Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector color: Black
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 6.6 mm
- Conductor cross section: 4 x 0.75 mm²
- Shielding: Shielded
- Reference voltage: ≤ 60 V
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Enclosure rating: IP67
- Operating temperature flexible use: –5 °C to +50 °C
- Operating temperature stationary position: –40 °C to +80 °C
- Dimensions (H x L x W): 12mm x 10000mm x 12mm
- Weight: 0.3 kg
Key Features
- Female M12 4-pin straight connector
- 10 m PUR halogen-free cable with 4 wires
- Shielded cable with stainless steel locking nut
- IP67 rated enclosure for dust and water protection
- Operating temperature range: Flexible use –5 °C to +50 °C, Stationary position –40 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact and improves safety in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A64-100UE1XLEAX connector cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connectivity applications.
