YF2AP3-200PA1XLEAX | Connectors and cables

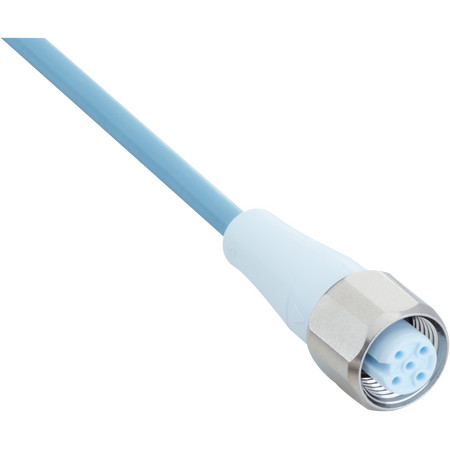

The SICK YF2AP3-200PA1XLEAX is a robust M12 female connector with flying leads cable designed for industrial automation, offering high durability, IP69K protection, and suitability for drag chain and robotic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2AP3-200PA1XLEAX | Connectors and cables
Brand: SICK
SKU: 2146864
Alternatively Known As: M12 Female Connector Cable, Sensor Actuator Cable, Industrial Automation Connector, Drag Chain Cable
Technical Specifications
- Connection type head A: Female connector, M12, 3-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: Polypropylene (PP)
- Locking nut material: Stainless steel (V4A/1.4404)
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 20 m, 3-wire
- Cable diameter: 4.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Temperature range: Flexible use -25°C to +105°C, Stationary position -40°C to +105°C, Drag chain operation -25°C to +105°C, Head -25°C to +85°C
- Bending cycles: 4,000,000
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Enclosure rating: IP65 / IP68 / IP69K
- Dimensions (H x L x W): 14mm x 20000mm x 14mm
- Weight: 0.2 kg
Key Features
- Female M12, 3-pin, straight, A-coded connector
- Screw connection locking plug
- Cable length 20 m with 3 wires
- High durability with 4,000,000 bending cycles and 2,000,000 torsion cycles
- IP65/IP68/IP69K enclosure rating for harsh environments
- Operating temperature range from -40°C to +105°C depending on use
- Stainless steel locking nut and FKM seal for chemical resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connectors to ensure proper connection and sealing.
Applications
- Drag chain operation
- Robotics sensor and actuator connections
- Industrial automation and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- High resistance to harsh environments extends product life
- Compliant with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2AP3-200PA1XLEAX connector cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
