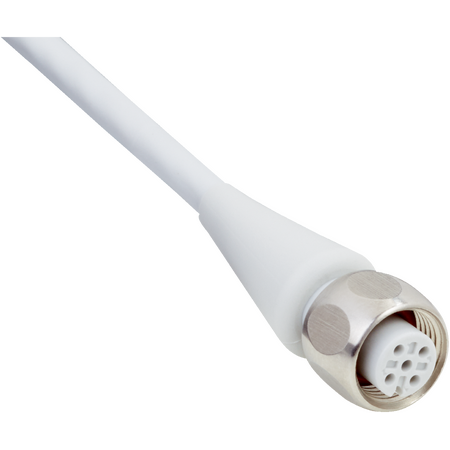

YF2AP5-400PA3XLEAX | Connectors and cables

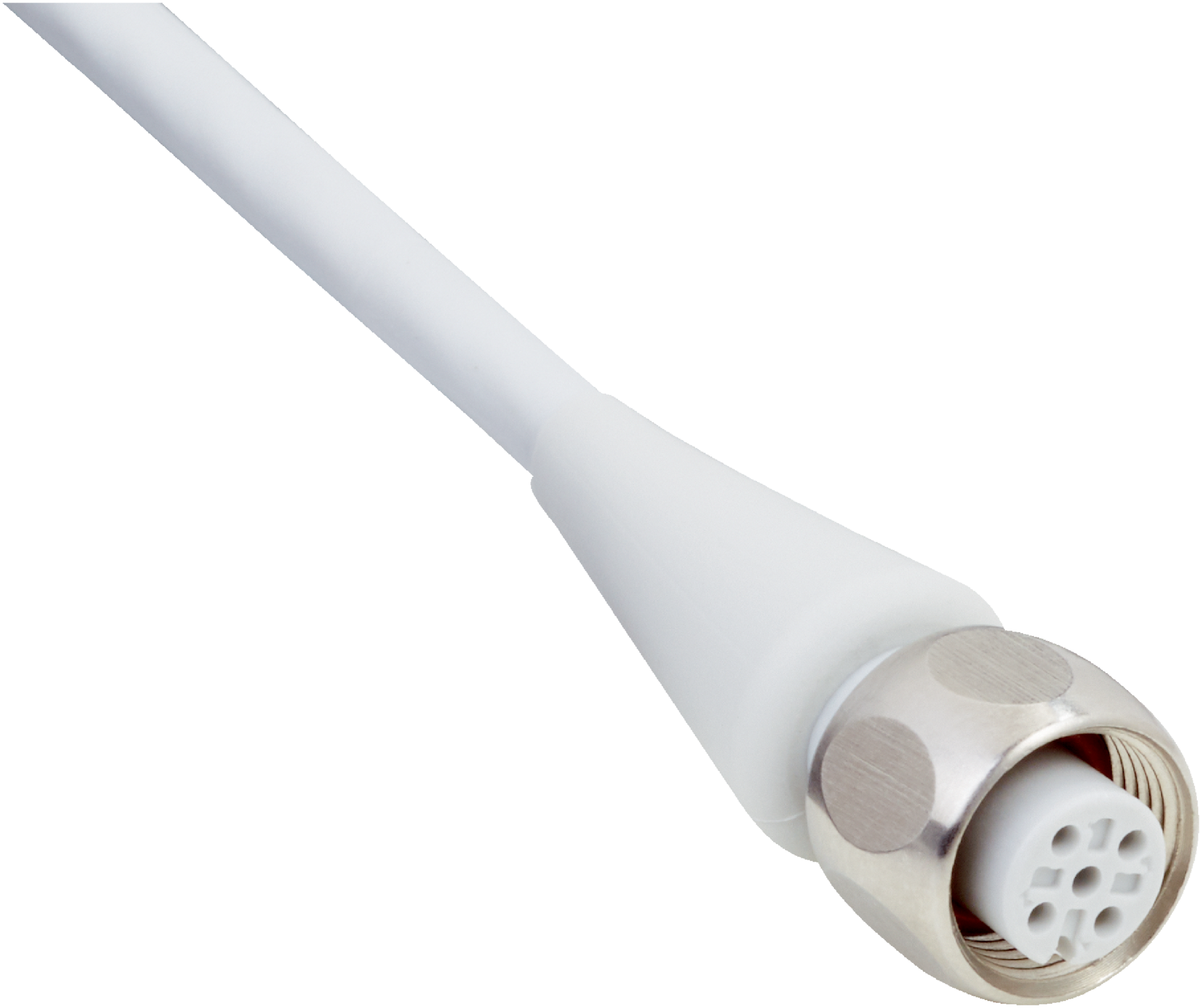

The SICK YF2AP5-400PA3XLEAX is a durable sensor/actuator cable with M12 female connector and flying leads, designed for hygienic and washdown zones with high chemical resistance and IP67/IP69K protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF2AP5-400PA3XLEAX | Connectors and cables
Brand: SICK
SKU: 2146869
Alternatively Known As: M12 Sensor Cable, Actuator Cable with Flying Leads, Industrial Sensor Connector Cable, Hygienic Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight
- Connection type head B: Flying leads
- Connector material: Polypropylene (PP)
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 1 Nm
- Cable length: 40 m, 5-wire, PP jacket
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +105 °C
- Operating temperature stationary position: -40 °C to +105 °C
- Bending cycles: ≥ 4,000,000
- Reference voltage: ≤ 60 V
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Enclosure rating: IP67 / IP69K
- Chemical resistance: Resistant to lactic acid and hydrogen peroxide (H2O2)
- Dimensions (H x L x W): 5mm x 40000mm x 14mm
- Weight: 0.5 kg
Key Features
- Female connector, M12, 5-pin, straight
- Flying leads connection
- Connector material made of polypropylene (PP)
- Locking nut made of stainless steel (V4A/1.4404)
- Cable length 40 m, 5-wire, PP jacket
- Unshielded cable with 0.34 mm² conductor cross section
- High bending radius for flexible use and stationary position
- Operating temperature range from -25 °C to +105 °C (flexible use)
- IP67/IP69K enclosure rating for protection against dust and water
- Resistant to chemical cleaning agents including lactic acid and hydrogen peroxide
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling and hygienic zone requirements.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Sensor and actuator cable applications in industrial automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste
- Durable materials extend product life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YF2AP5-400PA3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation in hygienic and washdown environments.
