YF8U13-100S01M8U13 | Connectors and cables

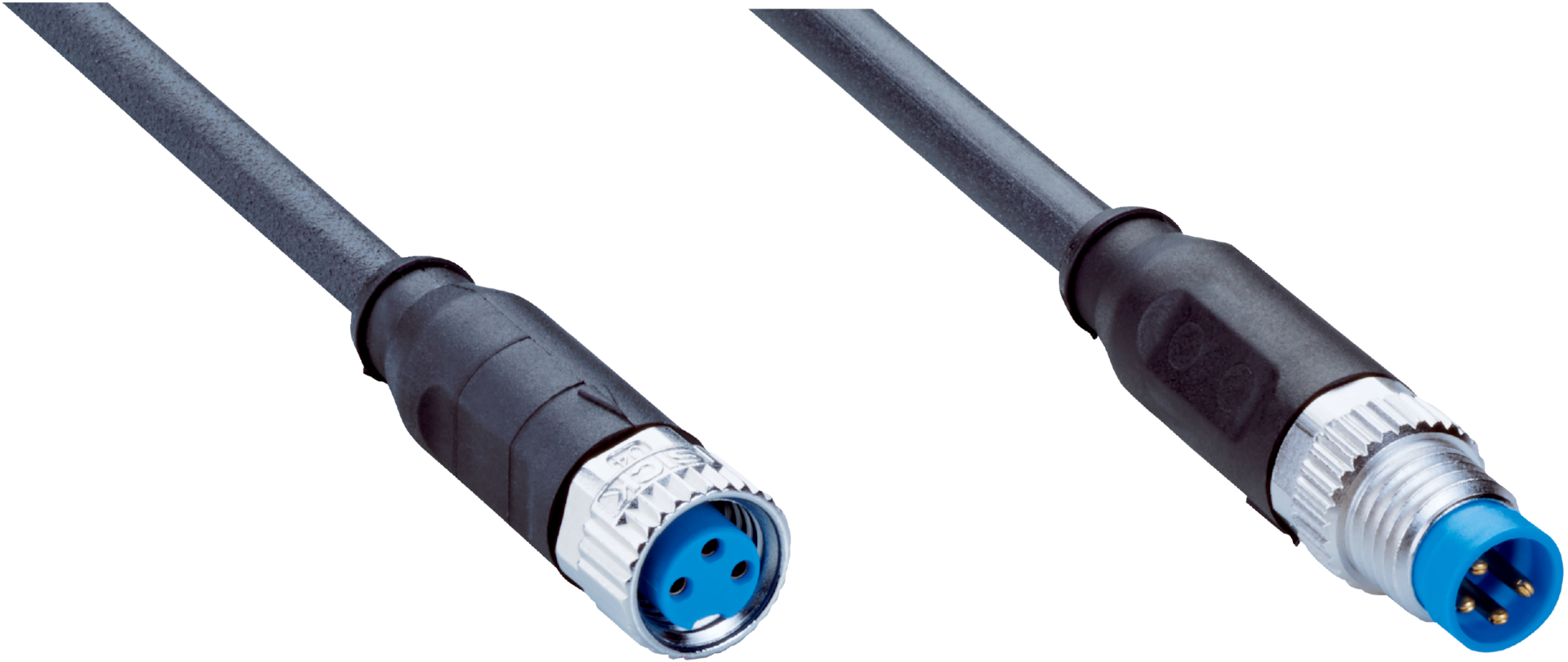

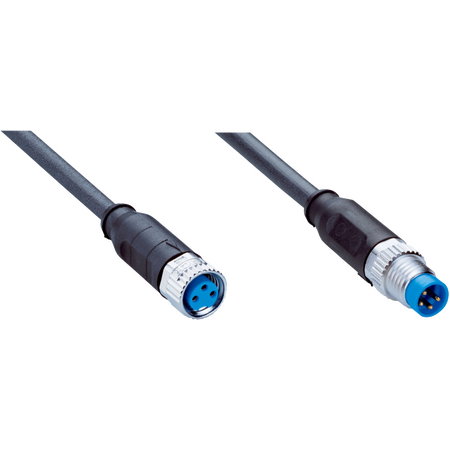

The SICK YF8U13-100S01M8U13 is a durable sensor/actuator cable featuring M8 connectors, designed for industrial automation with high flexibility, robust materials, and excellent environmental resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF8U13-100S01M8U13 | Connectors and cables
Brand: SICK
SKU: 2112853
Alternatively Known As: M8 Sensor Cable, M8 Actuator Cable, Industrial Sensor Connector Cable, PUR Sensor Cable, Halogen-Free Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Male connector, M8, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 10 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Temperature range: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C
- Bending cycles: 10,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 15mm x 10000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 3-pin, straight, A-coded
- Male connector M8, 4-pin, straight, A-coded
- Screw connection locking plug
- Cable length 10 m, 3-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- UL and cULus certified
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK YF8U13-100S01M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
