YF8U14-015VA3XLEAX | Connectors and cables

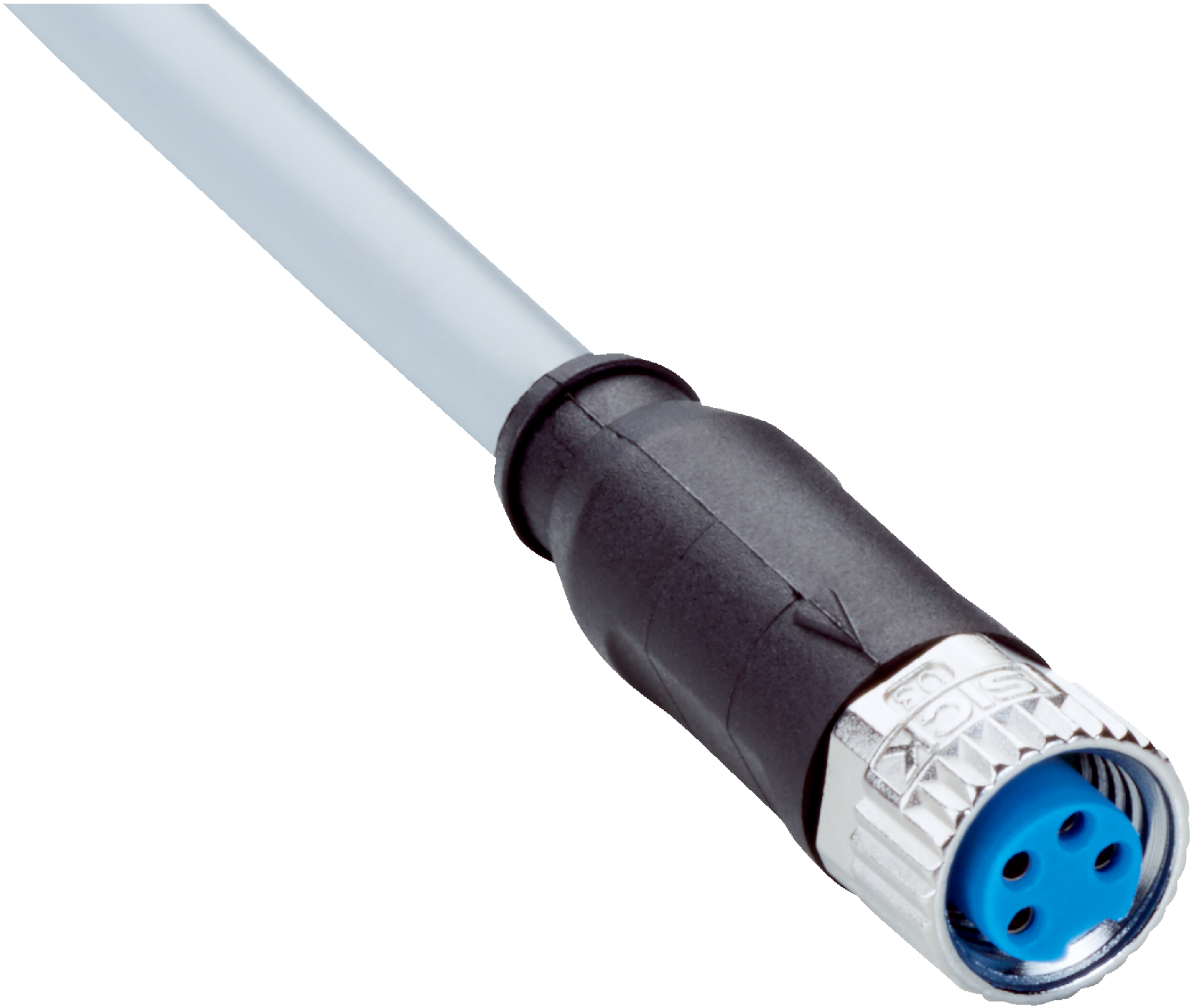

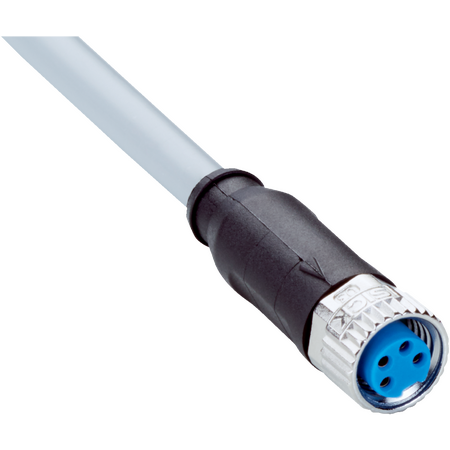

The SICK YF8U14-015VA3XLEAX is a durable M8 4-pin female connector with flying leads, designed for sensor and actuator cable applications in chemical and uncontaminated zones, featuring high protection ratings and flame retardant materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF8U14-015VA3XLEAX | Connectors and cables
Brand: SICK
SKU: 2095894
Alternatively Known As: M8 4-pin female connector cable, Sensor actuator cable M8 connector, SICK M8 connector cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 1.5 m, 4-wire, PVC jacket
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 1500mm x 9mm
- Weight: 0.1 kg
Key Features
- Female M8, 4-pin straight A-coded connector
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- PVC jacketed 1.5 m 4-wire cable
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Operating temperature range from -30°C to +85°C
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Use in zones with chemicals
- Uncontaminated zones requiring reliable electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant cable reduces fire risk and environmental damage
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF8U14-015VA3XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and reliable connections.
