YF8U14-150VA3M8U14 | Connectors and cables

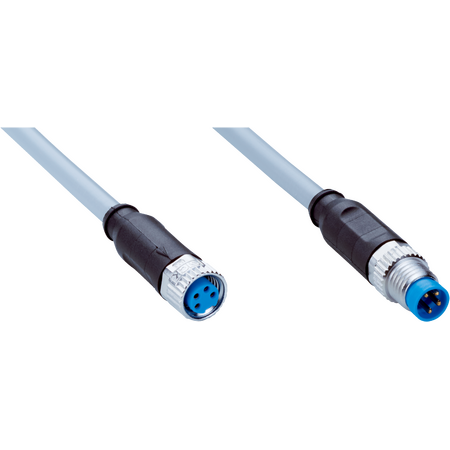

The SICK YF8U14-150VA3M8U14 is a durable M8 4-pin sensor/actuator cable connector with screw locking, designed for industrial automation applications requiring high protection and chemical resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF8U14-150VA3M8U14 | Connectors and cables
Brand: SICK
SKU: 2144411
Alternatively Known As: M8 4-pin sensor cable connector, M8 4-pin actuator cable, M8 screw lock connector, industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Male connector, M8, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 15 m, 4-wire, PVC jacket
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5°C to +80°C
- Operating temperature stationary position: -30°C to +80°C
- Operating temperature head: -25°C to +85°C
- Reference voltage: ≤ 60 V AC/DC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 15000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female and male M8, 4-pin straight connectors with A-coding
- Screw locking plug connector for secure connection
- Connector made of TPU with zinc die-cast and nickel-plated locking nuts
- Cable length 15 m, 4-wire PVC jacket, gray color
- Unshielded cable with 0.25 mm² conductor cross section
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range: -30°C to +80°C (stationary), -5°C to +80°C (flexible use)
- Rated impulse voltage 1.5 kV and current loading up to 4 A
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for environments requiring IP65/IP66K/IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF8U14-150VA3M8U14 M8 4-pin sensor/actuator cable connector is available for immediate purchase, ideal for industrial automation and sensor connection applications.
