YF8U23-200UB2XLEAX | Connectors and cables

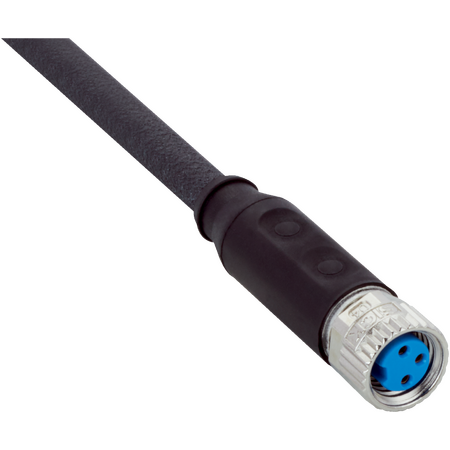

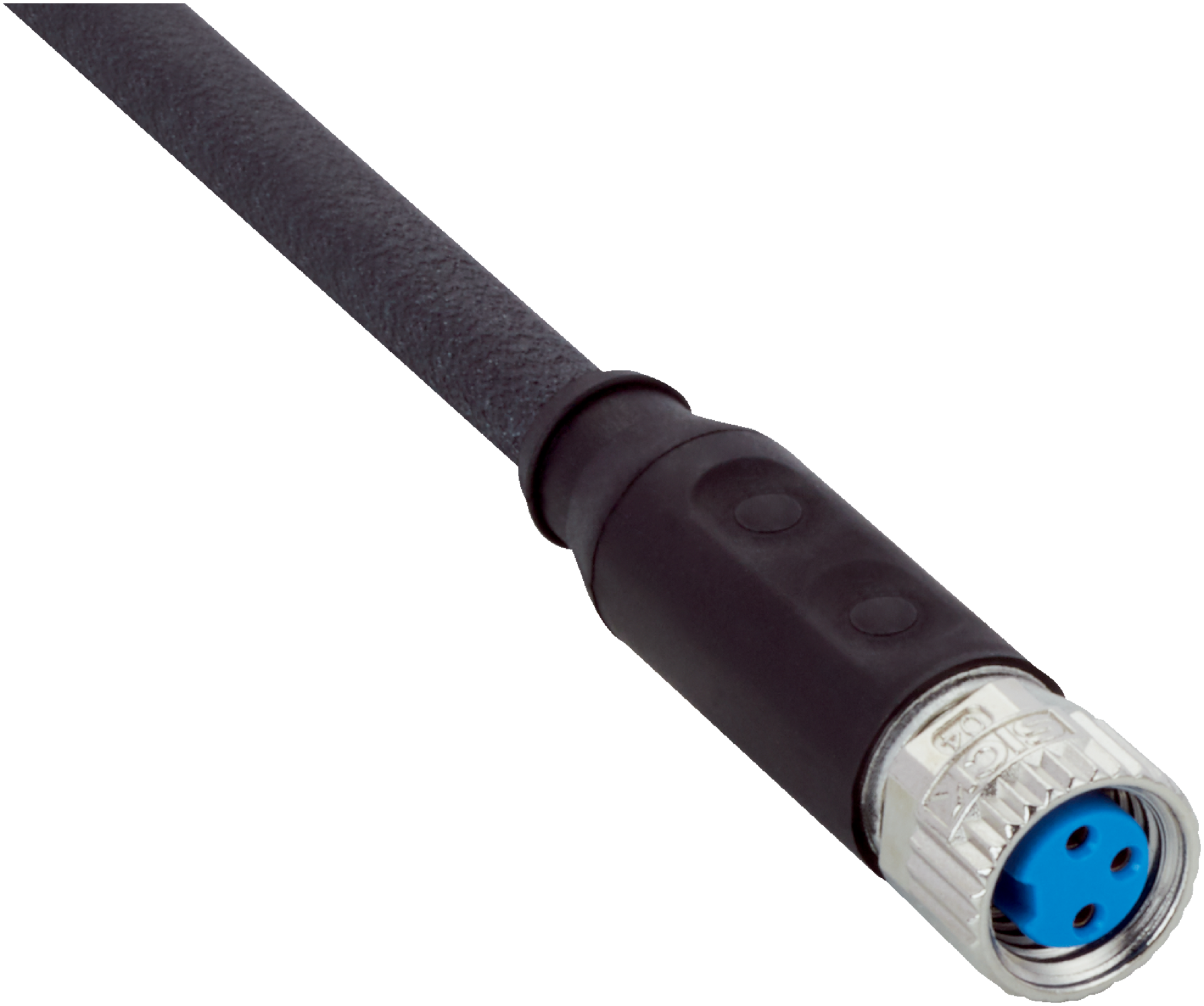

The SICK YF8U23-200UB2XLEAX is a high-performance sensor/actuator cable featuring a female M8 connector, 20 m PUR halogen-free cable, and robust IP65/IP66K/IP67 protection, ideal for industrial automation and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF8U23-200UB2XLEAX | Connectors and cables
Brand: SICK
SKU: 2119436
Alternatively Known As: M8 Sensor Cable, Actuator Cable M8 3-pin, PUR Sensor Cable, Industrial Sensor Connector Cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 20 m, 3-wire, PUR, halogen-free
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Operating temperature flexible use: –25 °C to +80 °C
- Operating temperature stationary position: –40 °C to +80 °C
- Operating temperature drag chain operation: –25 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 20000mm x 9mm
- Weight: 0.3 kg
Key Features
- Female connector, M8, 3-pin, straight, A-coded
- Screw connection locking plug
- Cable length 20 m, 3-wire, PUR, halogen-free
- Shielded cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67
- Torsion cycles up to 2,000,000
- Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
- Flame retardant properties enhance safety and environmental protection
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF8U23-200UB2XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
