YF8U24-020UA4M2XX8 | Connectors and cables

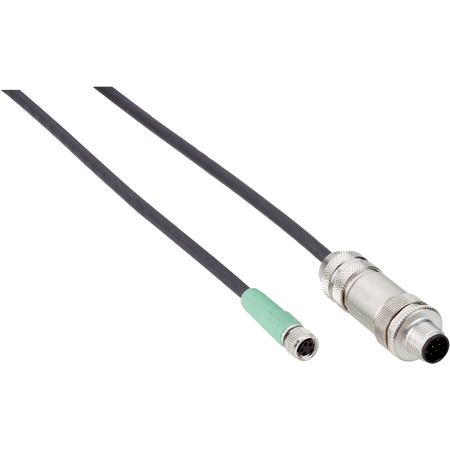

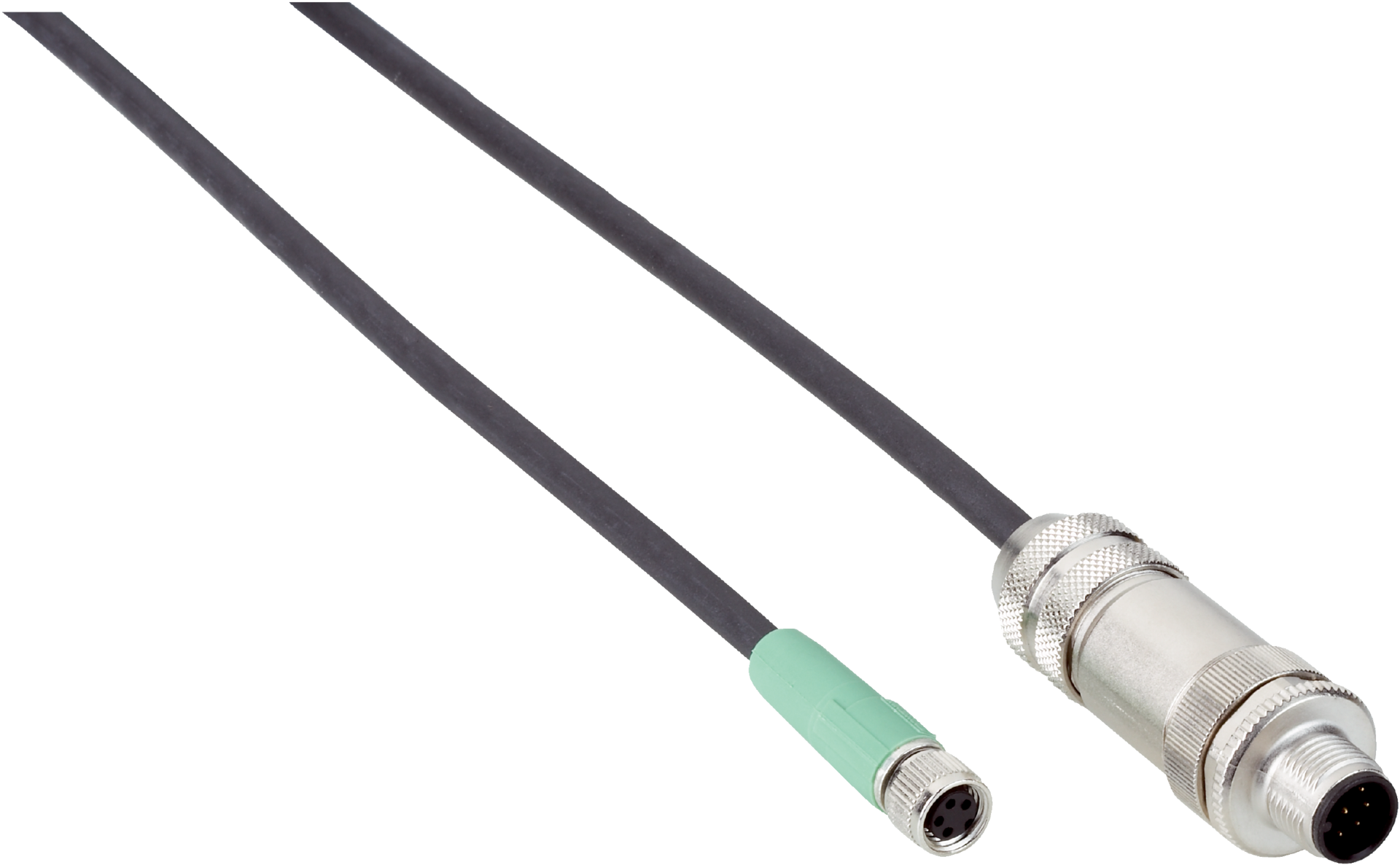

The SICK YF8U24-020UA4M2XX8 is a 2-meter long connector cable with M8 female 4-pin and M12 male 8-pin connectors, featuring a durable PVC orange jacket, ideal for use in uncontaminated zones, oily environments, and robot drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF8U24-020UA4M2XX8 | Connectors and cables
Brand: SICK
SKU: 6042080
Alternatively Known As: M8 to M12 Connector Cable, SICK Sensor Cable, Industrial Connector Cable, PVC Jacketed Connector Cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight
- Connection type head B: Male connector, M12, 8-pin, straight
- Cable length: 2 m
- Cable wires: 4-wire
- Jacket material: PVC
- Jacket color: Orange
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, straight on head A
- Male connector, M12, 8-pin, straight on head B
- 2 meter length, 4-wire cable
- PVC jacket material and orange jacket color
- Unshielded cable design
- Conductor cross section of 0.25 mm²
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC jacket provides durability reducing frequent replacements
- Compliant with China RoHS ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF8U24-020UA4M2XX8 connector cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
