YF8U24-020UB4XLEAX | Connectors and cables

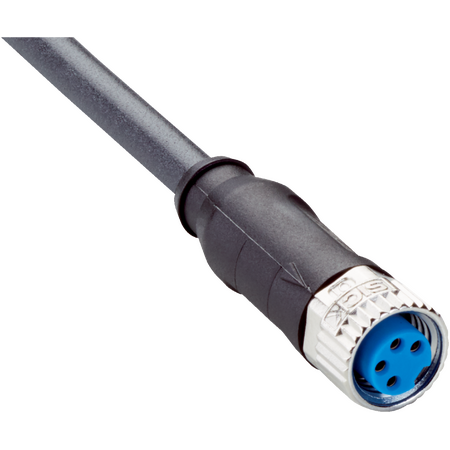

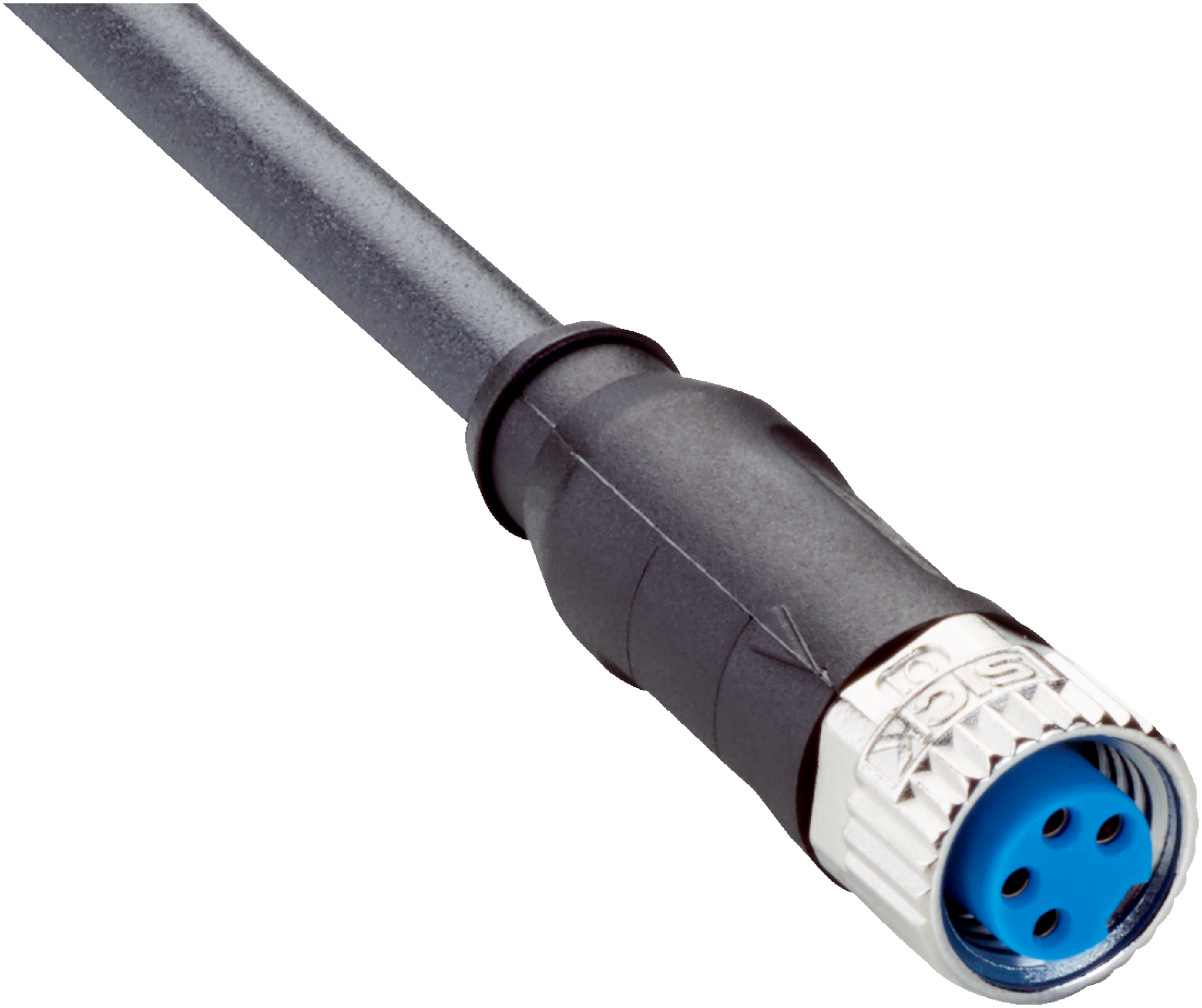

The SICK YF8U24-020UB4XLEAX is a high-quality sensor/actuator cable featuring a female M8 4-pin connector and a 2m halogen-free PUR cable, designed for robust industrial applications including robotics and drag chain operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YF8U24-020UB4XLEAX | Connectors and cables
Brand: SICK
SKU: 2145881
Alternatively Known As: M8 4-pin sensor cable, actuator cable with M8 connector, industrial sensor cable, PUR halogen-free cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 2 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Bending cycles: 5,000,000
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Reference voltage: 30 V AC/DC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 2000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female M8, 4-pin, straight, A-coded connector
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- Halogen-free PUR cable jacket
- Shielded 4-wire cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- UL File No. E335179 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper connection and compliance with electrical standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YF8U24-020UB4XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
