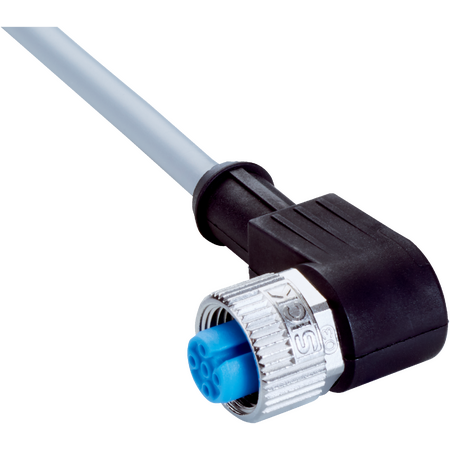

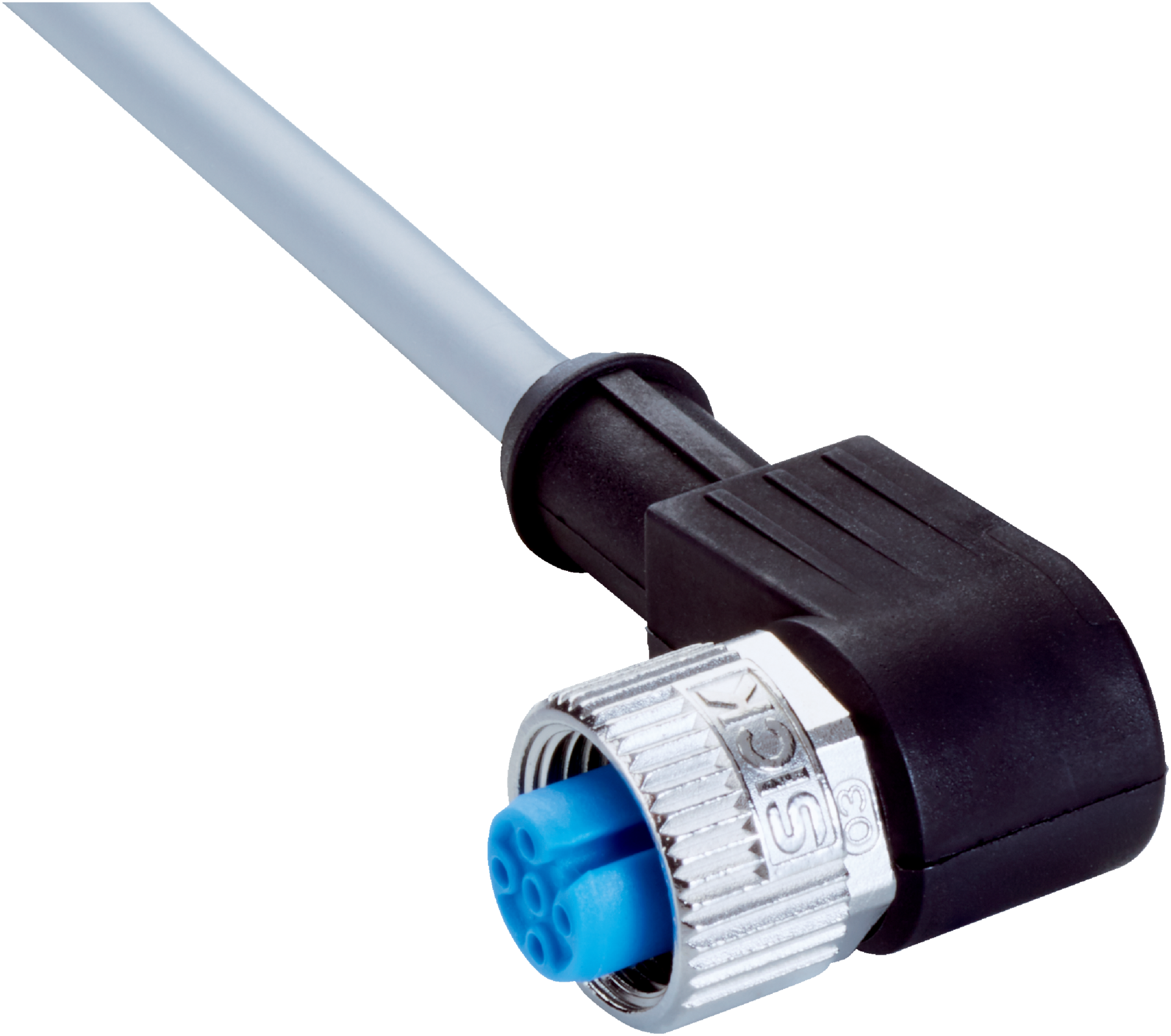

YG2A13-010VB1XLEAX Connectors and cables
The SICK YG2A13-010VB1XLEAX is a durable M12 female connector with flying leads, designed for sensor and actuator cable applications in industrial environments with
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A13-010VB1XLEAX | Connectors and cables
Brand: SICK
SKU: 2145804
Alternatively Known As: M12 Female Connector Cable, Sensor Connector Cable, Industrial M12 Connector, 3-pin M12 Cable
Technical Specifications
- Connection type head A: Female connector, M12, 3-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 1 m, 3-wire, PVC jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: +5 °C to +85 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 3-pin, angled, A-coded connector
- Screw connection locking plug
- Connector made of TPU with zinc die-cast nickel-plated locking nut
- Cable: 1 m, 3-wire PVC jacket, gray color
- Unshielded cable with 0.34 mm² conductor cross section
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range: -30°C to +85°C depending on use
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial connector standards to ensure proper connection and safety compliance.
Applications
- Sensor and actuator cable connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for machinery and equipment requiring IP65/IP66K/IP67 rated connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YG2A13-010VB1XLEAX M12 Female Connector with Flying Leads is available for immediate purchase, ideal for industrial automation and sensor connection applications.
