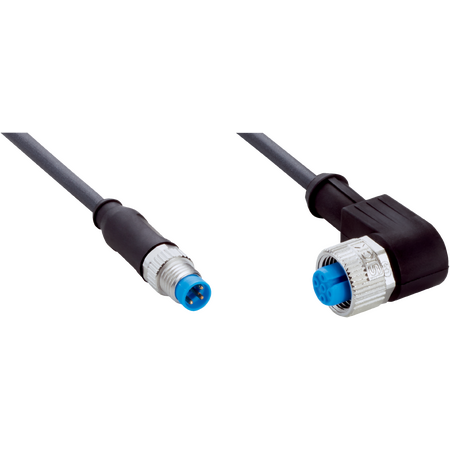

YG2A13-020UA1M8U13 | Connectors and cables

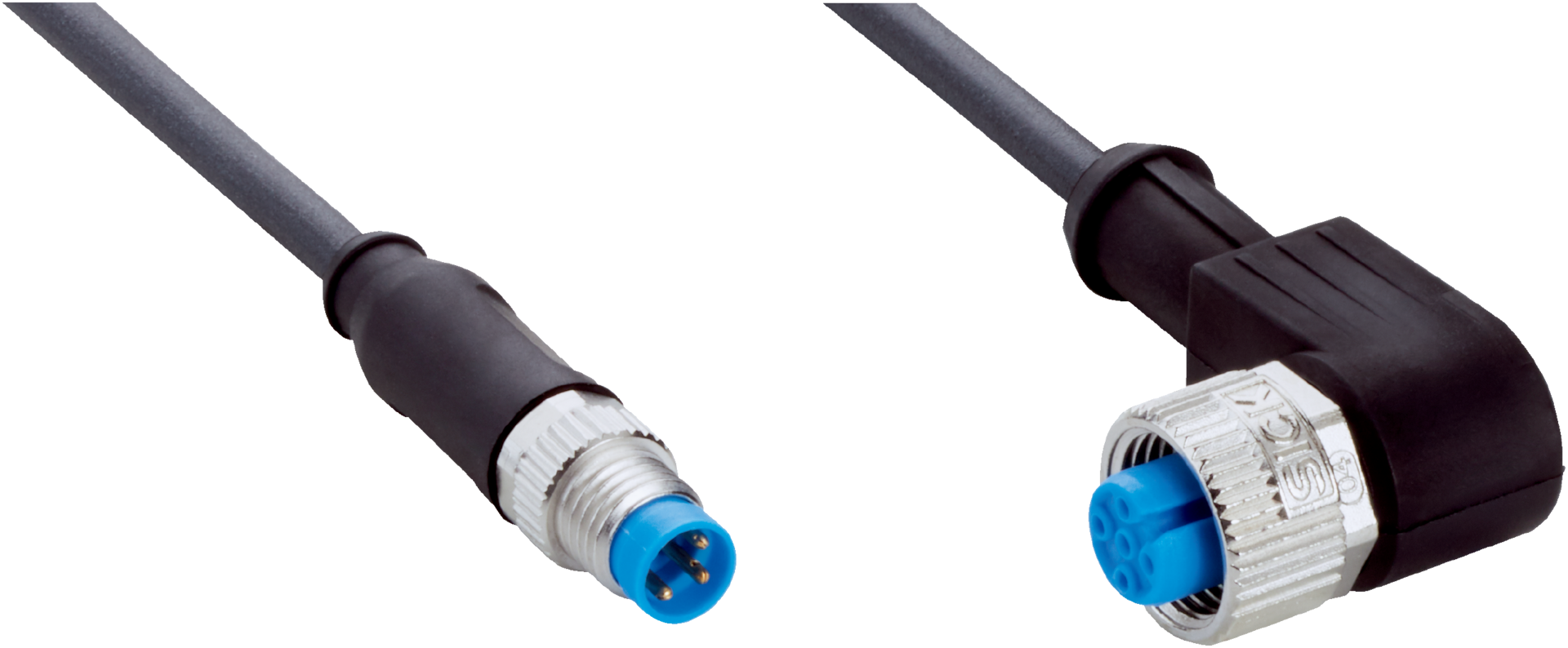

The SICK YG2A13-020UA1M8U13 is a durable M12 to M8 sensor/actuator cable with high IP rating and flame retardant properties, suitable for industrial automation and robotic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A13-020UA1M8U13 | Connectors and cables
Brand: SICK
SKU: 2099607
Alternatively Known As: M12 to M8 sensor cable, M12 to M8 actuator cable, SICK sensor connector cable, industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 3-pin, angled, A-coded
- Connection type head B: Male connector, M8, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), nickel-plated brass (male)
- Seal material: FKM
- Cable length: 2 m
- Cable type: 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Bending cycles: 10,000,000
- Torsion cycles: 2,000,000
- Operating temperature: -25°C to +80°C (flexible use), -40°C to +80°C (stationary), head -25°C to +85°C
- Enclosure rating: IP65 / IP66K / IP67
- Overvoltage category: III
- Insulation resistance: 100 MΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 3-pin, angled, A-coded
- Male connector M8, 3-pin, straight, A-coded
- Screw connection locking plug
- Connector material TPU with black color
- Zinc die-cast nickel-plated locking nut (female), nickel-plated brass (male)
- FKM seal material
- 2 m PUR halogen-free cable, 3-wire
- Bending radius: Flexible use > 10x cable diameter, Stationary position > 5x cable diameter, Drag chain operation > 10x cable diameter
- Operating temperature range: -25°C to +80°C (flexible use and drag chain), -40°C to +80°C (stationary), head -25°C to +85°C
- IP65 / IP66K / IP67 enclosure rating
- Rated voltage 300 V AC, test voltage 2500 V AC
- Current loading 4 A
- Torsion force 180°/1 m with 2,000,000 torsion cycles
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1 and IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YG2A13-020UA1M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connectivity applications.
