YG2A13-030VB1XLEAX Connectors and cables

BRAND: SICK
SKU: 2145807
$28.30 List price: $35.60
+ −
30 Days Return Electricians Unlock Trade Access

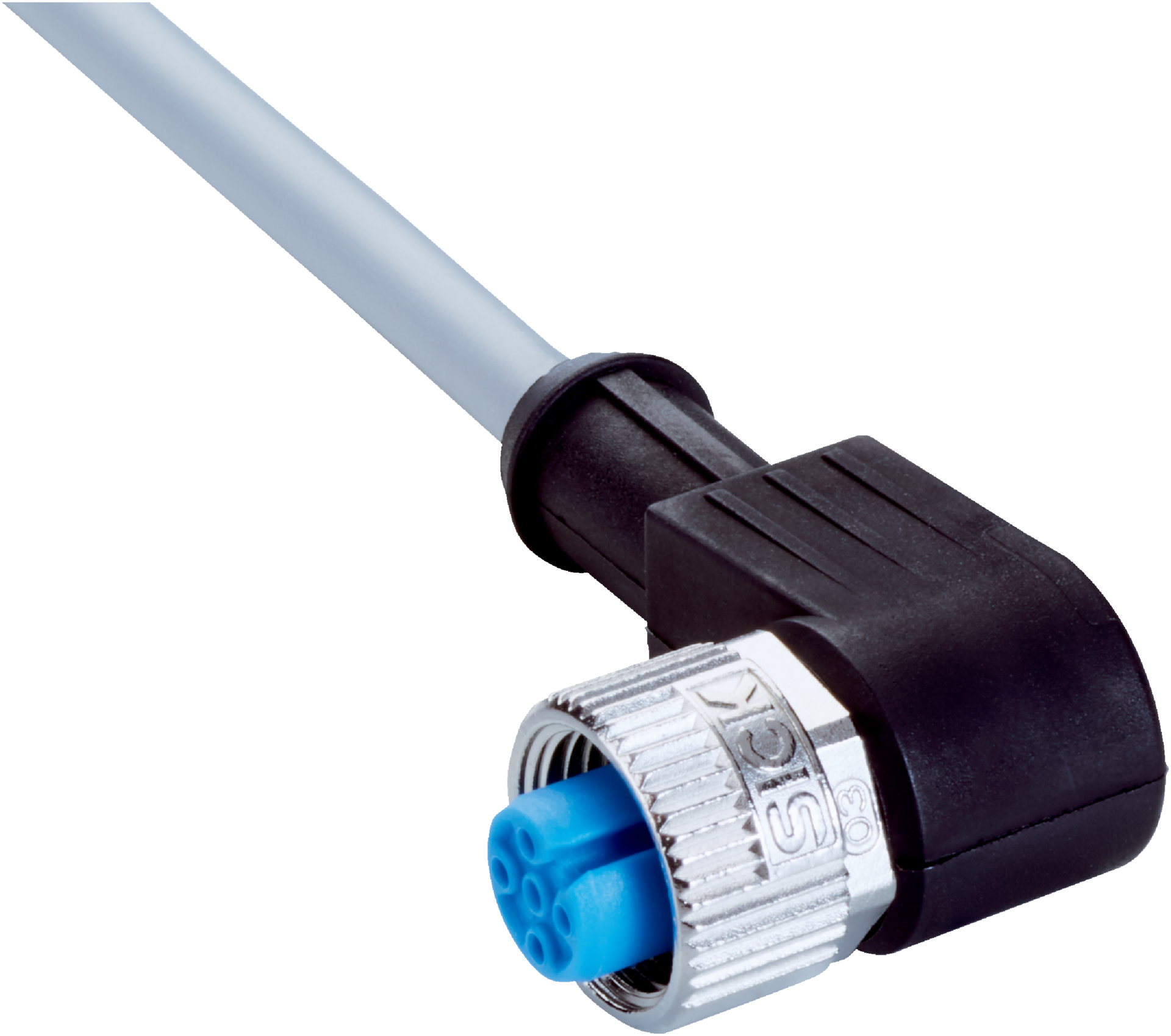

The SICK YG2A13-030VB1XLEAX is a durable M12 3-pin female connector with flying leads, designed for sensor and actuator cable applications in chemical and

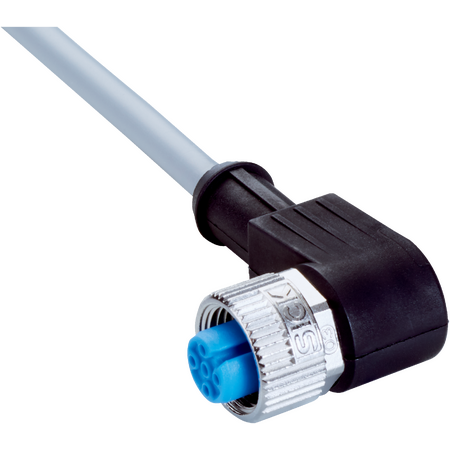

Product Name/Title: YG2A13-030VB1XLEAX | Connectors and cables

Brand: SICK

SKU: 2145807

Alternatively Known As: M12 3-pin female connector cable, Sensor actuator cable M12, SICK M12 connector cable

Technical Specifications
  • Connection type head A: Female connector, M12, 3-pin, angled, A-coded
  • Connection type head B: Flying leads
  • Locking plug connector: Screw connection
  • Connector material: TPU
  • Locking nut material: Zinc die-cast, nickel-plated
  • Seal material: FKM
  • Tightening torque: 0.6 Nm
  • Cable length: 3 m, 3-wire, PVC
  • Jacket material: PVC
  • Cable diameter: 4.6 mm
  • Conductor cross section: 0.34 mm²
  • Shielding: Unshielded
  • Bending radius flexible use: > 10 x cable diameter
  • Bending radius stationary position: > 5 x cable diameter
  • Operating temperature flexible use: +5 °C to +85 °C
  • Operating temperature stationary position: -30 °C to +80 °C
  • Operating temperature head: -25 °C to +85 °C
  • Nominal voltage cable: 300 V AC
  • Test voltage cable: 2,000 V AC
  • Reference voltage: 250 V AC / 250 V DC
  • Rated impulse voltage: 2.5 kV
  • Current loading: 4 A
  • Signal type: Sensor/actuator cable
  • Enclosure rating: IP65 / IP66K / IP67
  • Contamination rating: 3
  • Insulation resistance: 100 MΩ
  • Overvoltage category: III
  • Specific insulation resistance: 30 mΩ
  • Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
  • Dimensions (H x L x W): 20mm x 3000mm x 13mm
  • Weight: 0.1 kg
Key Features
  • Female M12, 3-pin angled A-coded connector
  • Screw locking plug connector
  • TPU connector material with zinc die-cast nickel-plated locking nut
  • 3 m PVC jacketed, 3-wire cable with 0.34 mm² conductor cross section
  • IP65 / IP66K / IP67 enclosure rating for robust protection
  • Operating temperature range from -30 °C to +85 °C depending on use
  • Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
  • Sensor and actuator cable applications
  • Zones with chemicals
  • Uncontaminated zones
Standards & Compliance
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Durable materials and flame retardant cable reduce fire risk and increase safety
  • Long service life reduces waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.

Available Now

The SICK YG2A13-030VB1XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and reliable connections.
