YG2A13-050VB1N2A13 | Connectors and cables

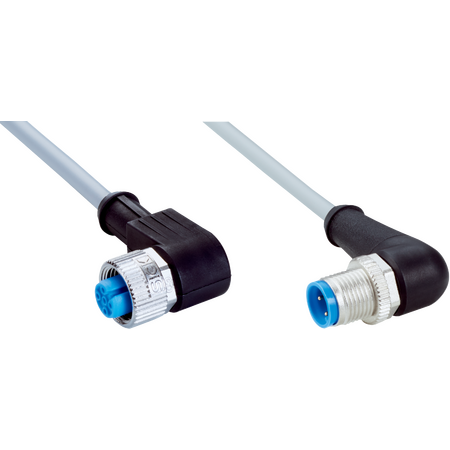

The SICK YG2A13-050VB1N2A13 is a durable M12 3-pin angled sensor/actuator cable with screw locking connectors, designed for industrial automation applications requiring high protection and chemical resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A13-050VB1N2A13 | Connectors and cables
Brand: SICK
SKU: 2145812
Alternatively Known As: M12 3-pin angled sensor cable, M12 actuator cable, SICK sensor connector cable, Industrial automation connector cable
Technical Specifications
- Connection type head A: Female connector, M12, 3-pin, angled, A-coded
- Connection type head B: Male connector, M12, 3-pin, angled, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m, 3-wire, PVC jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 3-pin, angled, A-coded connectors
- Screw connection locking plug for secure attachment
- Connector made of TPU with zinc die-cast, nickel-plated locking nut
- Cable jacket made of gray PVC, 5 meters long, 3-wire
- Unshielded cable with 0.34 mm² conductor cross section
- High protection rating: IP65 / IP66K / IP67
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
- Operating temperature range: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Rated for nominal voltage 300 V AC and test voltage 2000 V AC
- Current loading up to 4 A
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for flexible and stationary cable installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YG2A13-050VB1N2A13 M12 3-pin angled sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
