YG2A13-C60VB1N2A13 | Connectors and cables

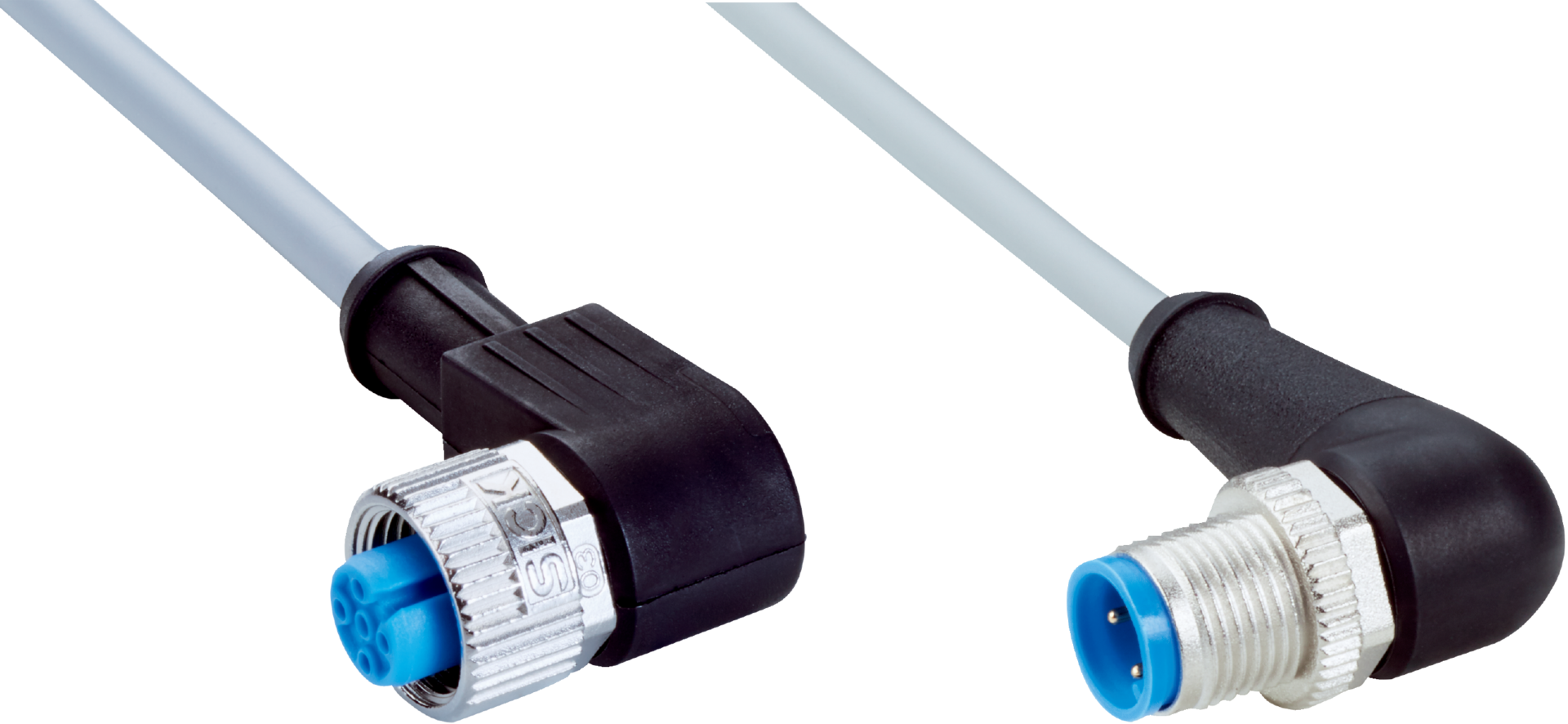

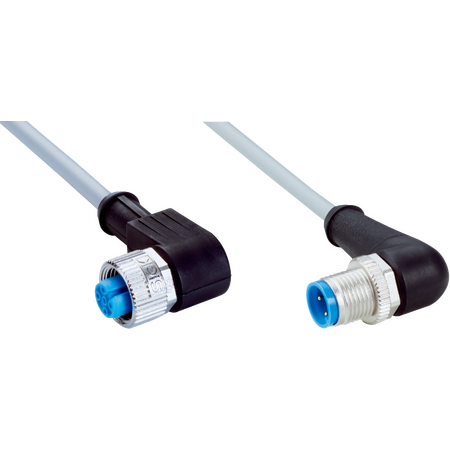

The SICK YG2A13-C60VB1N2A13 is a durable M12 3-pin angled sensor/actuator cable with screw locking, designed for industrial automation applications requiring robust connection and environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A13-C60VB1N2A13 | Connectors and cables
Brand: SICK
SKU: 2145810
Alternatively Known As: M12 3-pin angled sensor cable, M12 sensor connector cable, SICK sensor cable M12, industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 3-pin, angled, A-coded
- Connection type head B: Male connector, M12, 3-pin, angled, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.6 m, 3-wire, PVC jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Reference voltage: 250 V AC / 250 V DC
- Rated impulse voltage: 2.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5°C to +80°C, stationary -30°C to +80°C, head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 13mm x 600mm x 13mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 3-pin angled connectors, A-coded
- Screw connection locking plug
- Connector made of TPU with zinc die-cast nickel-plated locking nut
- Cable length 0.6 m, 3-wire PVC jacket, gray color
- Unshielded cable with 0.34 mm² conductor cross section
- Operating temperature range: Flexible use -5°C to +80°C, stationary -30°C to +80°C, head -25°C to +85°C
- Rated voltage 300 V AC, test voltage 2000 V AC
- Current loading up to 4 A
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for environments requiring IP65/IP66K/IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YG2A13-C60VB1N2A13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
