YG2A13-C60VB1XLEAX | Connectors and cables

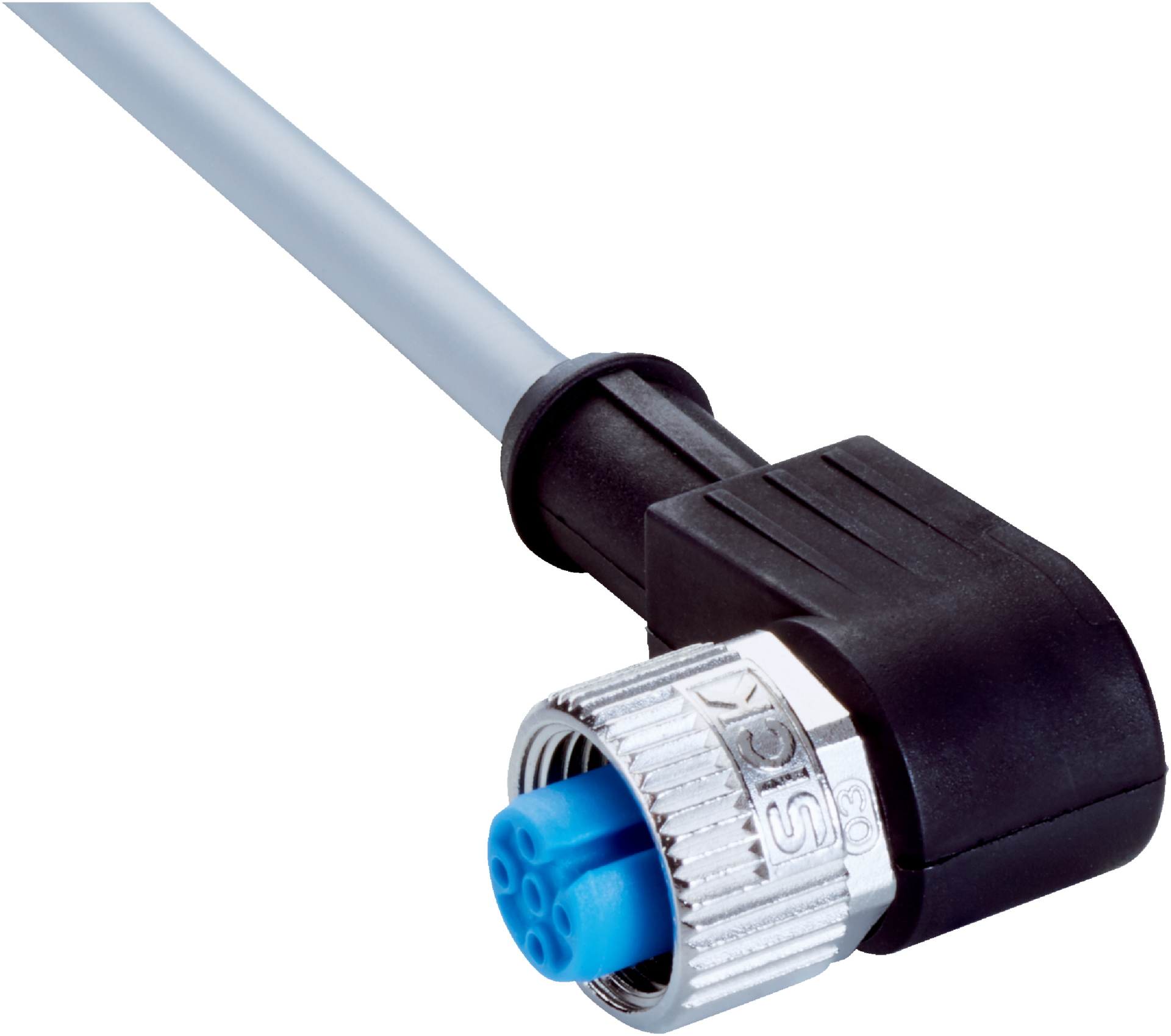

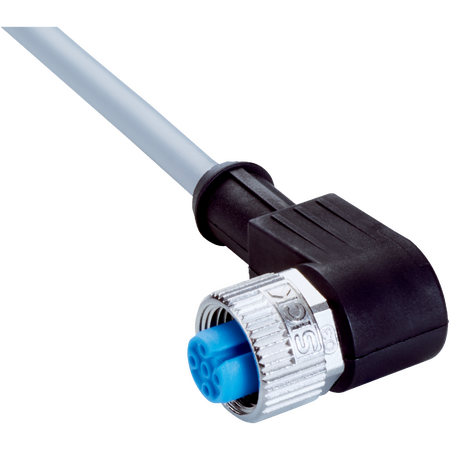

The SICK YG2A13-C60VB1XLEAX is a durable M12 female connector with flying leads, designed for sensor and actuator cable applications in chemical and uncontaminated zones, featuring IP65 to IP67 protection and flame retardant cable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A13-C60VB1XLEAX | Connectors and cables
Brand: SICK
SKU: 2145803
Alternatively Known As: M12 Female Connector Cable, Sensor Connector Cable, SICK M12 Connector, 3-pin M12 Cable
Technical Specifications
- Connection type head A: Female connector, M12, 3-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.6 m, 3-wire, PVC
- Jacket material: PVC
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: +5 °C to +85 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Reference voltage: 250 V AC / 250 V DC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 60mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 3-pin, angled, A-coded connector
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- PVC jacketed 0.6 m, 3-wire cable with 0.34 mm² conductor cross section
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Operating temperature range from -30 °C to +85 °C depending on use
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Sensor and actuator cable applications
- Zones with chemicals
- Uncontaminated zones requiring reliable electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant cable reduce environmental impact by extending product life and enhancing safety.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A13-C60VB1XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring reliable and durable connections.
