YG2A14-010VB3XLEAX | Connectors and cables

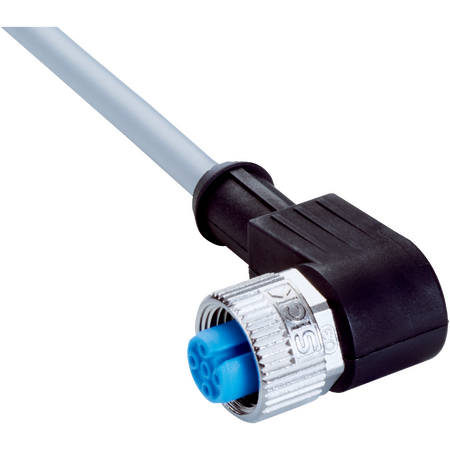

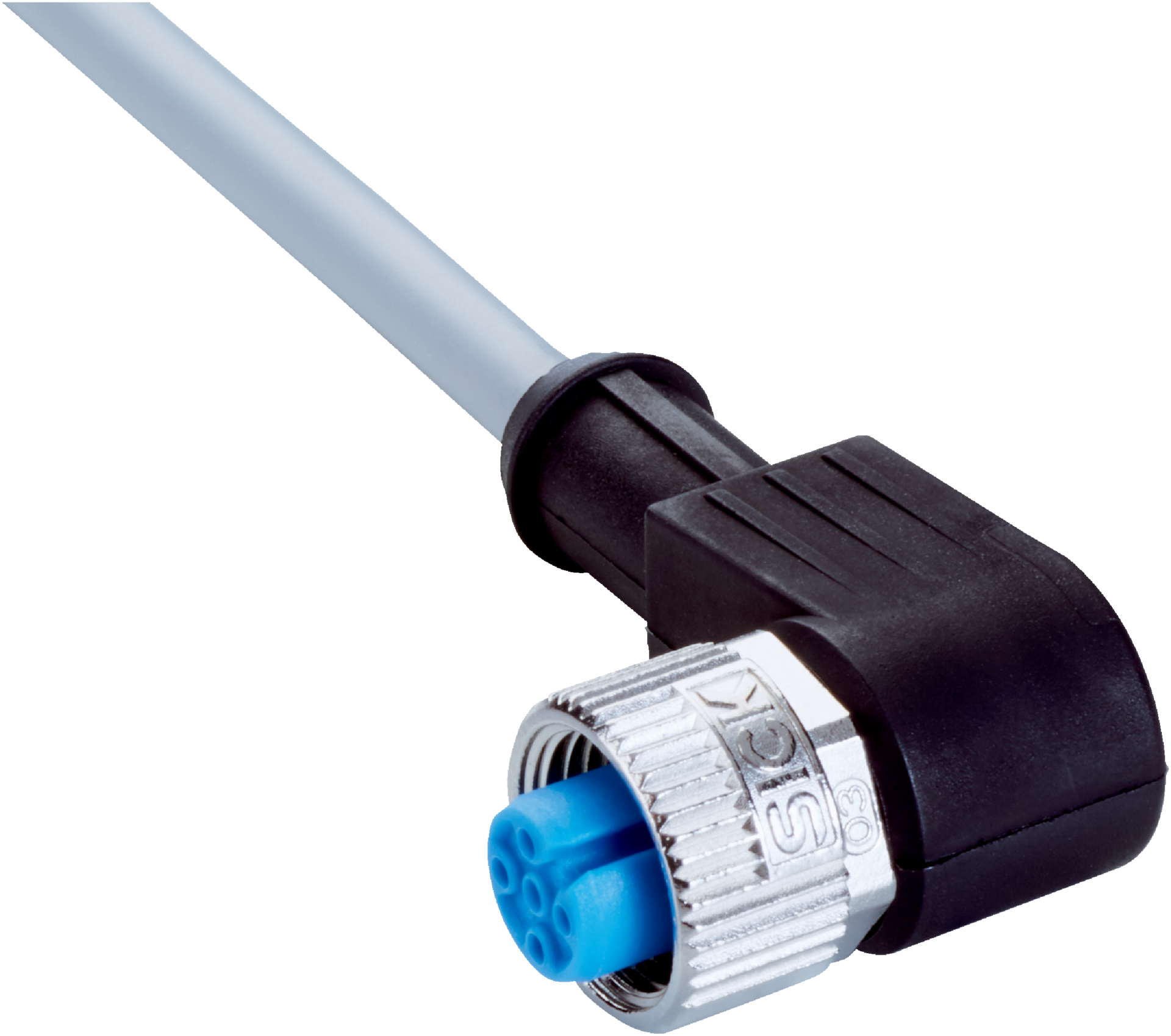

The SICK YG2A14-010VB3XLEAX is a high-quality M12 4-pin female connector with flying leads, designed for sensor and actuator cable applications in industrial environments with chemical exposure and high protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A14-010VB3XLEAX | Connectors and cables
Brand: SICK
SKU: 2145710
Alternatively Known As: M12 4-pin female angled connector cable, Sensor actuator cable M12 connector, Industrial M12 connector with flying leads
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 1 m, 4-wire, PVC jacket
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 4-pin, angled, A-coded connector
- Screw locking plug connector for secure connection
- Connector made of TPU with zinc die-cast nickel-plated locking nut
- Cable: 1 m, 4-wire PVC jacket, gray color
- Operating temperature range: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Rated voltage: 300 V AC, Test voltage: 2000 V AC
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Sensor and actuator cable connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for machinery and equipment requiring IP65/IP66K/IP67 rated connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant cable reduce environmental impact by extending product life and enhancing safety
- Compliant with China RoHS ensuring restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A14-010VB3XLEAX connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
