YG2A14-030VB3XLEAX | Connectors and cables

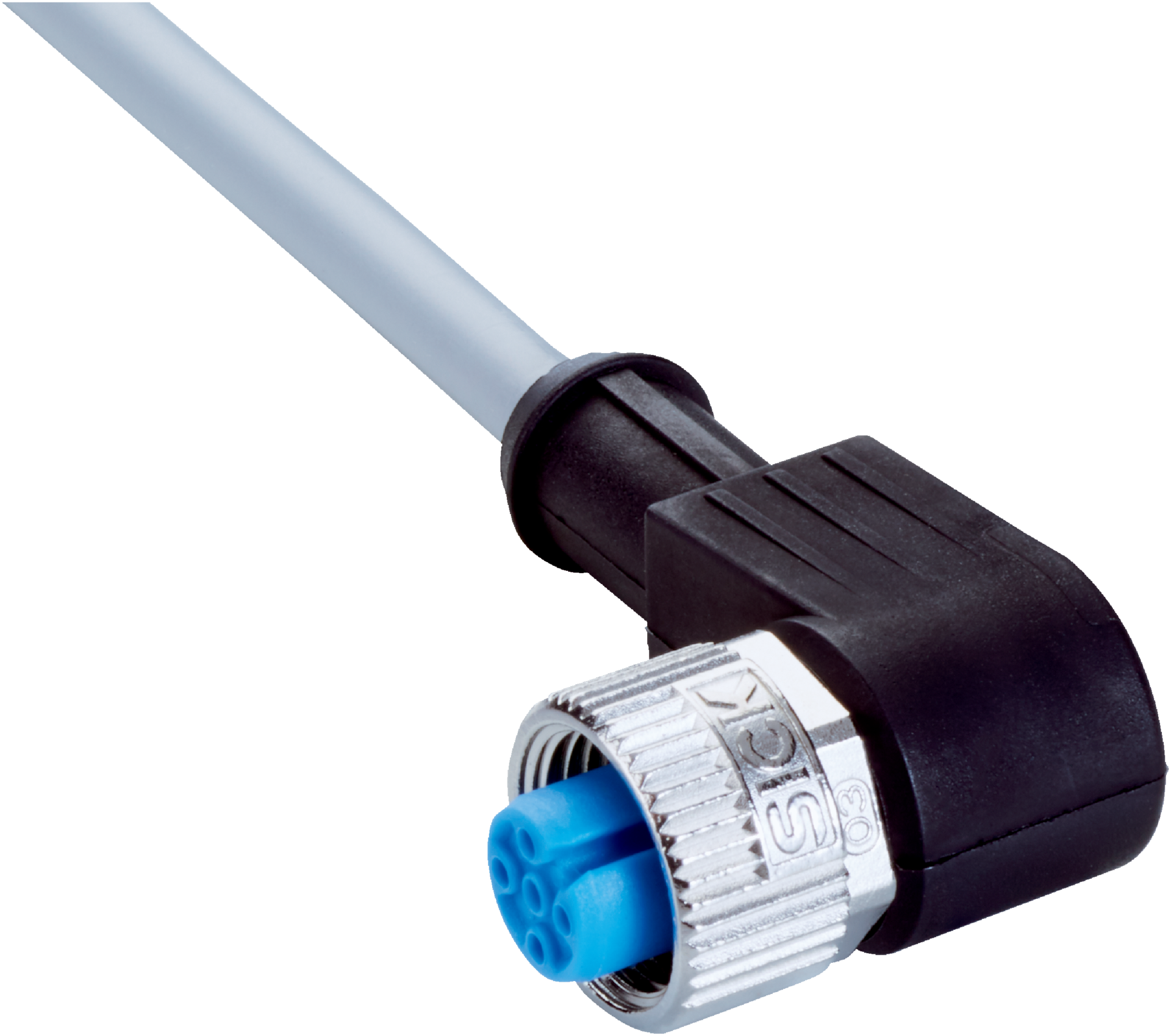

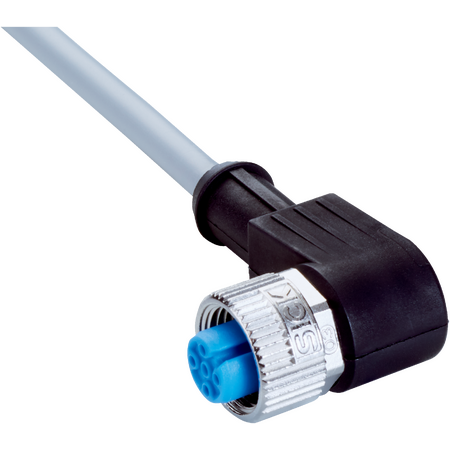

The SICK YG2A14-030VB3XLEAX is a durable M12 female connector with flying leads, designed for sensor and actuator cable applications in chemical and uncontaminated zones, featuring IP65/IP66K/IP67 protection and flame retardant cable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A14-030VB3XLEAX | Connectors and cables
Brand: SICK
SKU: 2107590
Alternatively Known As: M12 Female Connector Cable, Sensor Connector Cable, 4-pin M12 Connector with Leads
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 3 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Reference voltage: 250 V AC / 250 V DC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 4-pin, angled, A-coded connector
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- 3 m, 4-wire PVC cable with gray jacket
- Unshielded cable with 0.34 mm² conductor cross section
- IP65 / IP66K / IP67 enclosure rating
- Operating temperature range: -30 °C to +85 °C
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Use in zones with chemicals
- Suitable for uncontaminated zones
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A14-030VB3XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring reliable and durable connections.
