YG2A14-050UB3N2A14 | Connectors and cables

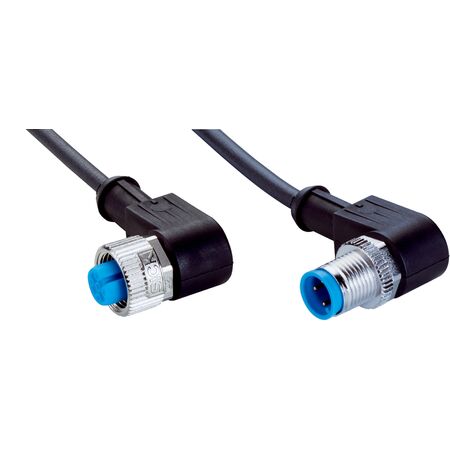

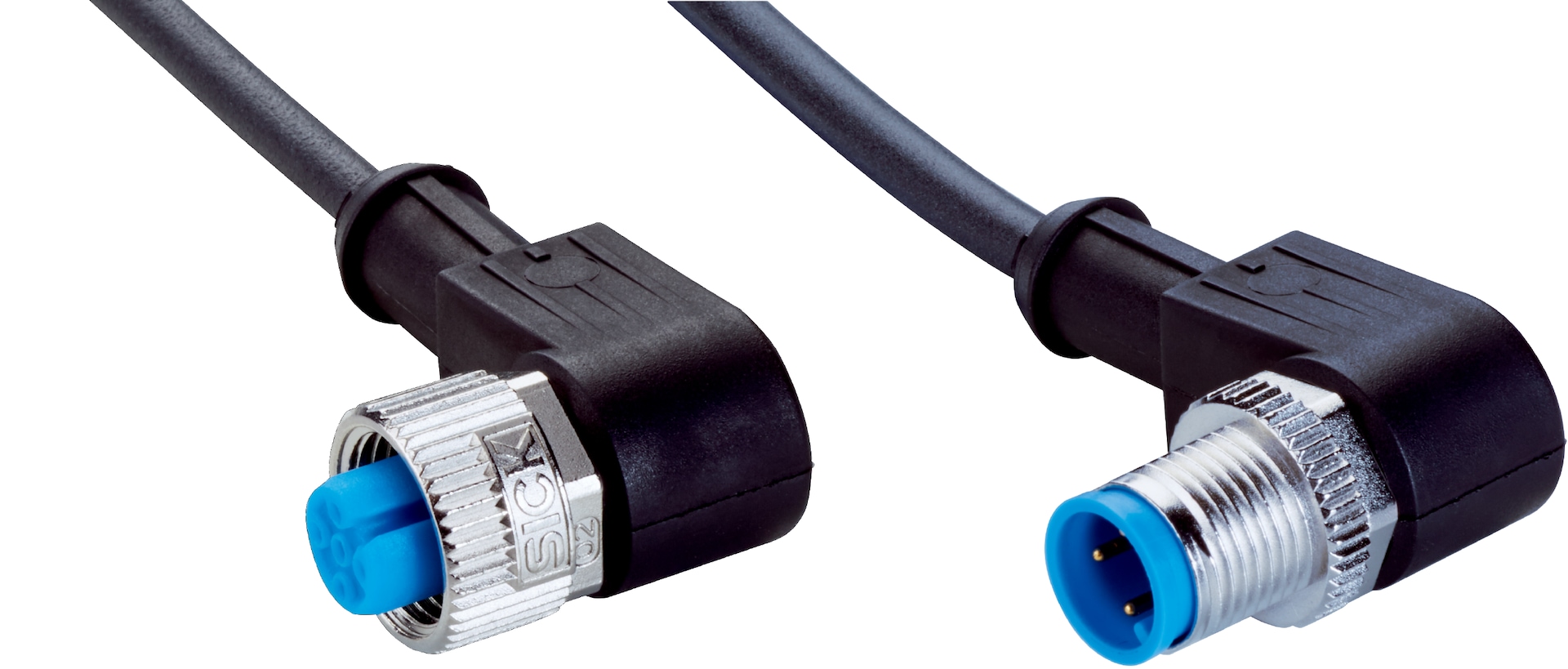

The SICK YG2A14-050UB3N2A14 is a durable M12 4-pin angled sensor/actuator cable with screw locking, designed for use in industrial automation including robots and drag chain operations, featuring a halogen-free PUR jacket and high IP rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A14-050UB3N2A14 | Connectors and cables
Brand: SICK
SKU: 2145703
Alternatively Known As: M12 4-pin angled sensor cable, M12 4-pin actuator cable, SICK sensor connector cable, industrial sensor cable M12
Technical Specifications
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, angled, A-coded on head A
- Male connector, M12, 4-pin, angled, A-coded on head B
- Screw connection locking plug
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 5 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Unshielded cable
- Bending radius for flexible use > 10 x cable diameter
- Operating temperature range: -25 °C to +80 °C (flexible use)
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Current loading: 4 A
- Torsion force: 180° per meter with 2,000,000 torsion cycles
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YG2A14-050UB3N2A14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
