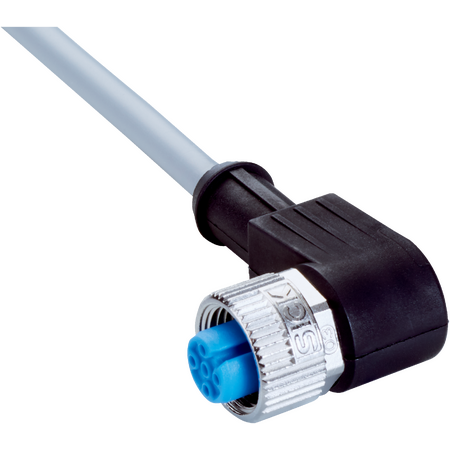

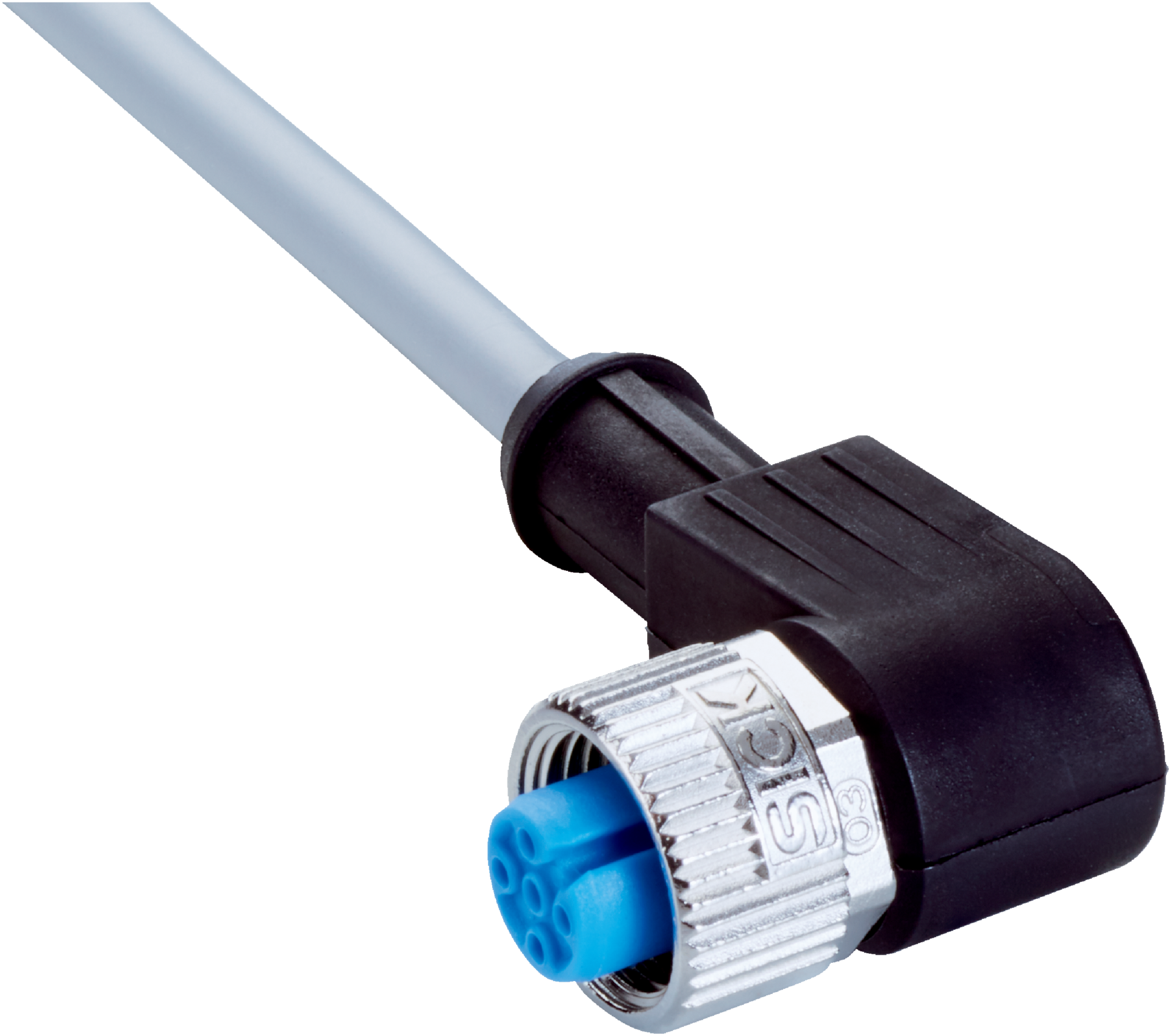

YG2A14-200VB3XLEAX | Connectors and cables
The SICK YG2A14-200VB3XLEAX is a durable M12 female connector with a 20 m flying leads cable, designed for sensor and actuator applications in chemical and uncontaminated zones, featuring high protection ratings and flame retardant materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A14-200VB3XLEAX | Connectors and cables
Brand: SICK
SKU: 2096214
Alternatively Known As: M12 Female Connector Cable, Sensor Cable M12 4-pin, Flying Leads Cable M12 Connector
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 20 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5°C to +80°C, Stationary position -30°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 20000mm x 13mm
- Weight: 0.3 kg
Key Features
- Female M12, 4-pin, angled, A-coded connector
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- 20 m long, 4-wire PVC cable with gray jacket
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Operating temperature range from -30°C to +85°C
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Zones with chemicals
- Uncontaminated zones requiring reliable electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A14-200VB3XLEAX connector and cable assembly is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and reliable connections.
