YG2A24-020UB4XLEAX | Connectors and cables

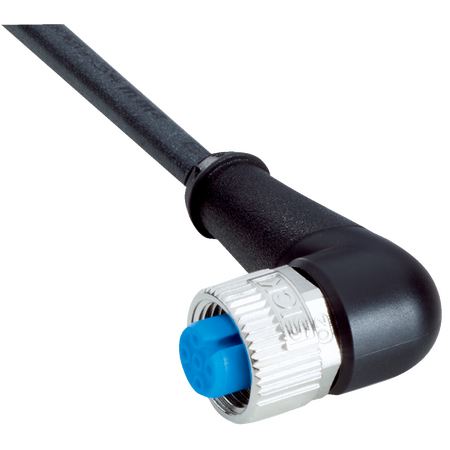

The SICK YG2A24-020UB4XLEAX is a durable M12 4-pin female connector with a 2 m PUR halogen-free cable, designed for sensor and actuator applications in industrial environments including robots and drag chains.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A24-020UB4XLEAX | Connectors and cables
Brand: SICK
SKU: 2145735
Alternatively Known As: M12 4-pin female connector cable, Sensor actuator cable M12, Industrial connector cable, PUR halogen-free sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25°C to +80°C, Stationary position -40°C to +80°C, Drag chain operation -25°C to +80°C, Head -25°C to +85°C
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 20mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 4-pin angled A-coded connector
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- PUR halogen-free 2 m cable with 4 wires and shielding
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40°C to +85°C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- High durability with 5,000,000 bending cycles and 2,000,000 torsion cycles
- Rated for nominal voltage 300 V AC and test voltage 2,000 V AC
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2, IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Sensor and actuator cable applications
- Use in uncontaminated zones
- Zones with oils and lubricants
- Robot and drag chain operation environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A24-020UB4XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring robust and reliable connections.
