YG2A24-030VB4XLEAX Connectors and cables

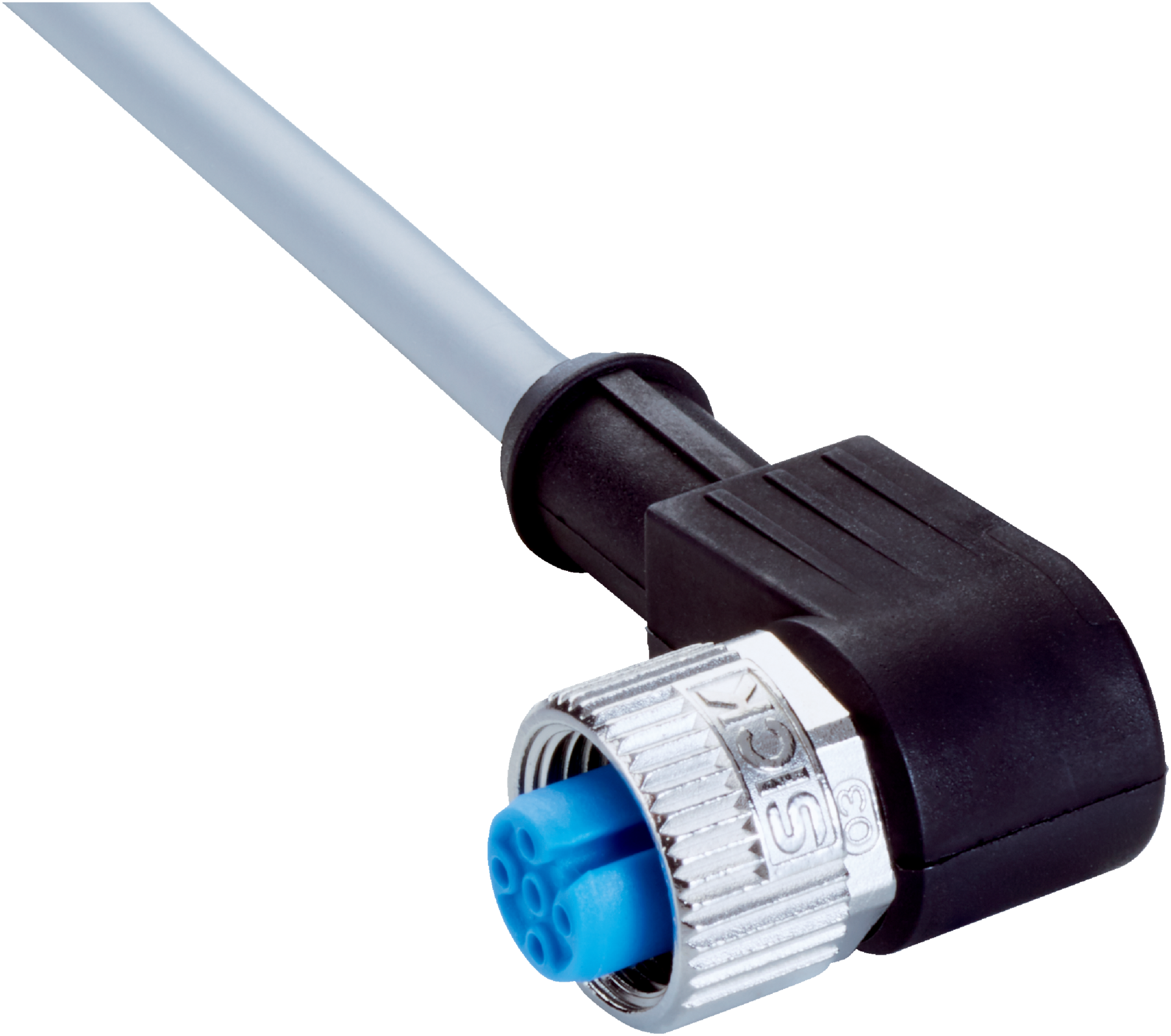

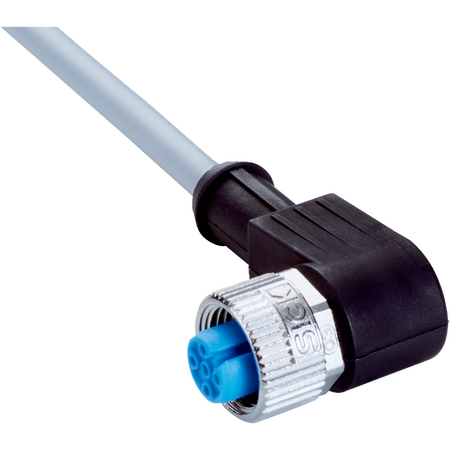

The SICK YG2A24-030VB4XLEAX is a high-quality M12 4-pin female connector with flying leads, designed for sensor and actuator cable applications in industrial
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A24-030VB4XLEAX | Connectors and cables
Brand: SICK
SKU: 2145752
Alternatively Known As: M12 4-pin female connector cable, Sensor actuator cable M12, Industrial M12 connector with flying leads
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 3 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 4-pin angled A-coded connector
- Screw locking plug connector for secure connection
- TPU connector material with zinc die-cast nickel-plated locking nut
- Shielded 3 m, 4-wire PVC cable with 0.34 mm² conductor cross section
- Operating temperature range: -30°C to +85°C depending on part
- Flame retardant cable jacket according to UL 1581 VW1 / CSA FT1
- High insulation resistance of 100 MΩ and rated impulse voltage of 1.5 kV
- Enclosure rating IP65 / IP66K / IP67 for robust protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with electrical safety standards.
Applications
- Sensor and actuator cable connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for environments requiring IP65/IP66K/IP67 rated connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant cable reduce environmental impact by extending product life and enhancing safety
- Shielded cable reduces electromagnetic interference, improving system efficiency and reliability
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A24-030VB4XLEAX connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
