YG2A24-100VB4M2A24 Connectors and cables

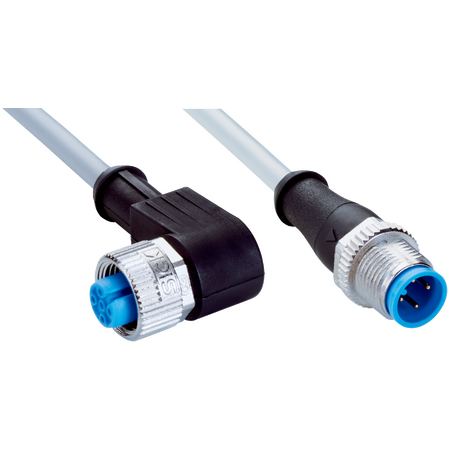

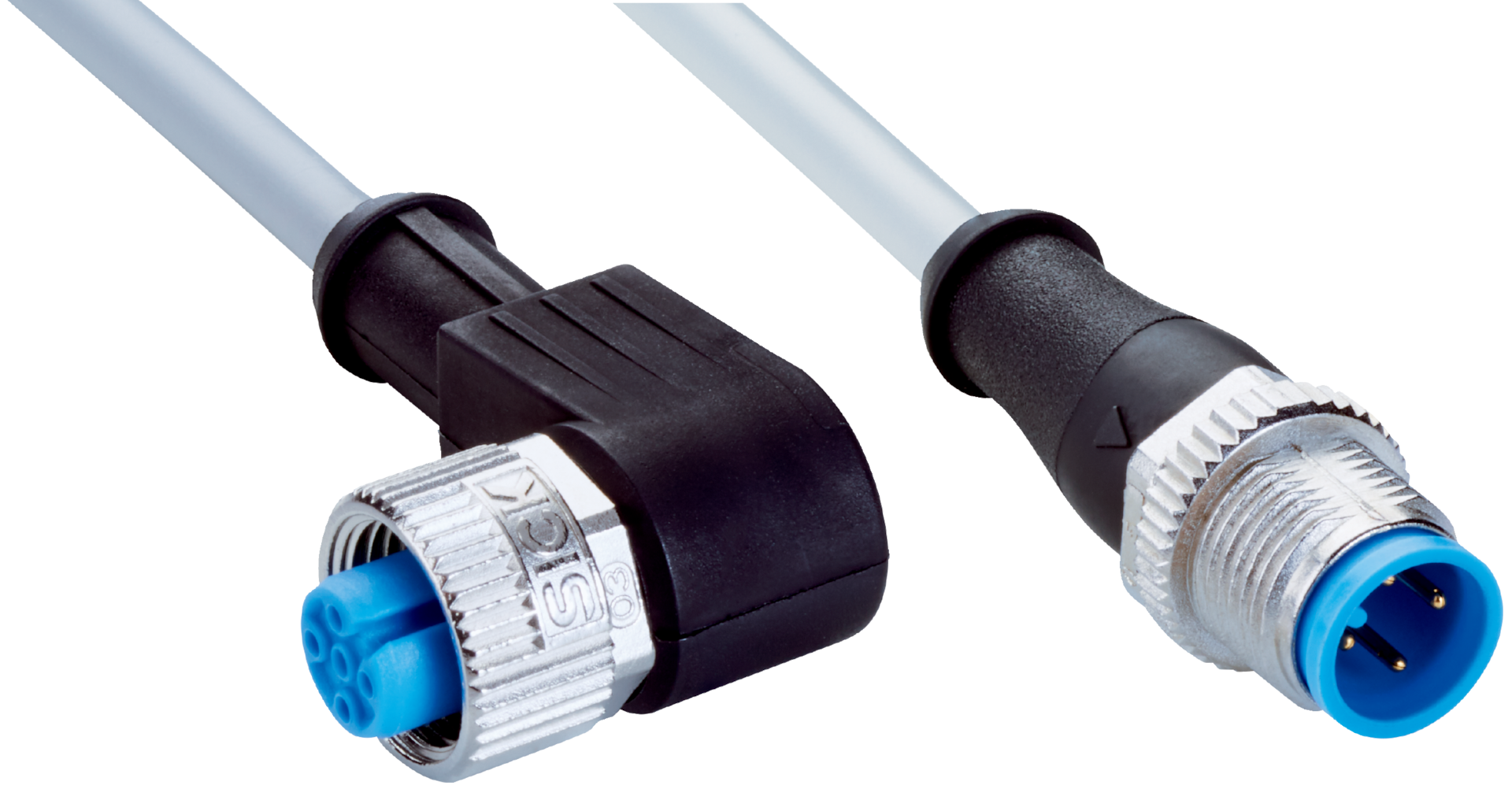

The SICK YG2A24-100VB4M2A24 is a durable M12 4-pin sensor actuator cable with screw locking connectors, shielded PVC jacket, and high IP protection ratings
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A24-100VB4M2A24 | Connectors and cables
Brand: SICK
SKU: 2145755
Alternatively Known As: M12 4-pin sensor cable, M12 actuator cable, SICK sensor connector cable, industrial sensor cable 10m
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Male connector, M12, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 4-wire, PVC jacket
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female M12 4-pin angled A-coded connector on head A
- Male M12 4-pin straight A-coded connector on head B
- Screw locking plug connector for secure connection
- Shielded 10 m, 4-wire PVC cable with 0.34 mm² conductor cross section
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Flame retardant cable jacket according to UL 1581 VW1 / CSA FT1
- Contamination rating 3 and overvoltage category III
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for machinery and equipment requiring IP65/IP66K/IP67 rated connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant jacket reduce fire risk and increase product lifespan
- Shielded cable minimizes electromagnetic interference, improving system efficiency and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A24-100VB4M2A24 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
