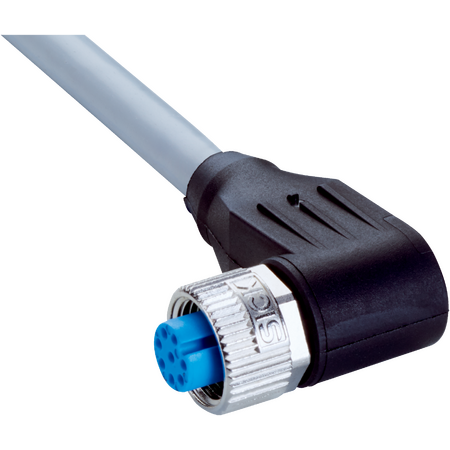

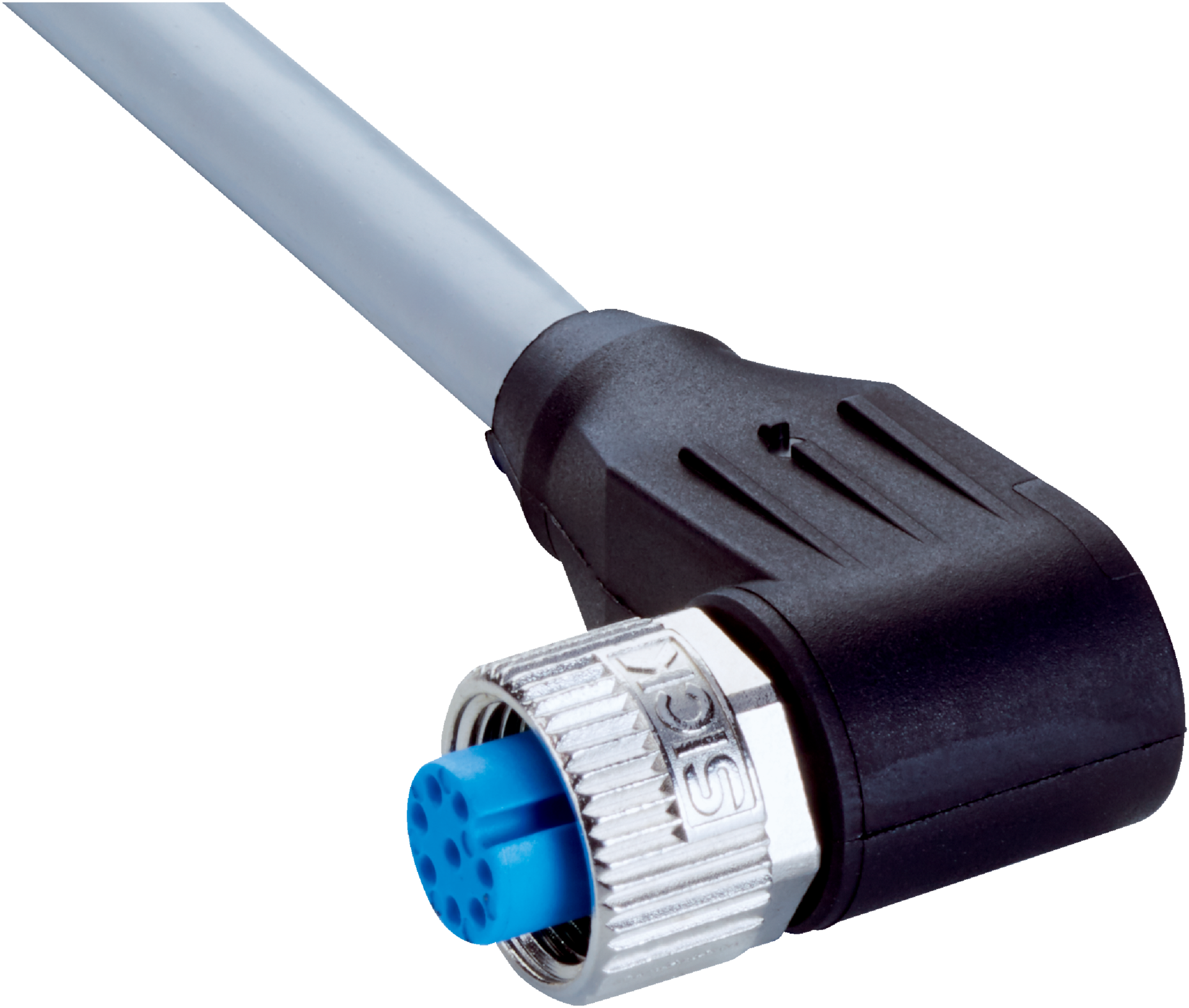

YG2A28-050VA6XLEAX | Connectors and cables
The SICK YG2A28-050VA6XLEAX is a high-quality M12 8-pin female connector with flying leads, designed for sensor and actuator cable applications in chemical and uncontaminated zones, featuring robust IP65/IP66K/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A28-050VA6XLEAX | Connectors and cables
Brand: SICK
SKU: 2096219
Alternatively Known As: M12 8-pin female angled connector cable, Sensor actuator cable M12 connector, SICK M12 connector cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m, 8-wire, PVC
- Jacket material: PVC
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 30mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 8-pin, angled, A-coded
- Screw connection locking plug
- Shielded 5 m, 8-wire PVC cable
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Zones with chemicals
- Uncontaminated zones
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant cable reduce environmental impact by extending product life and enhancing safety.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A28-050VA6XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring reliable and durable connections.
