YG2A28-C50VA6XLEAX | Connectors and cables

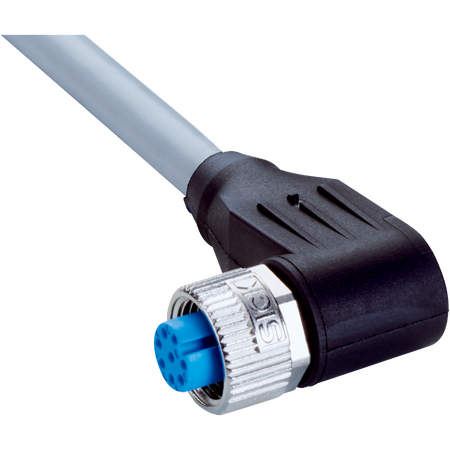

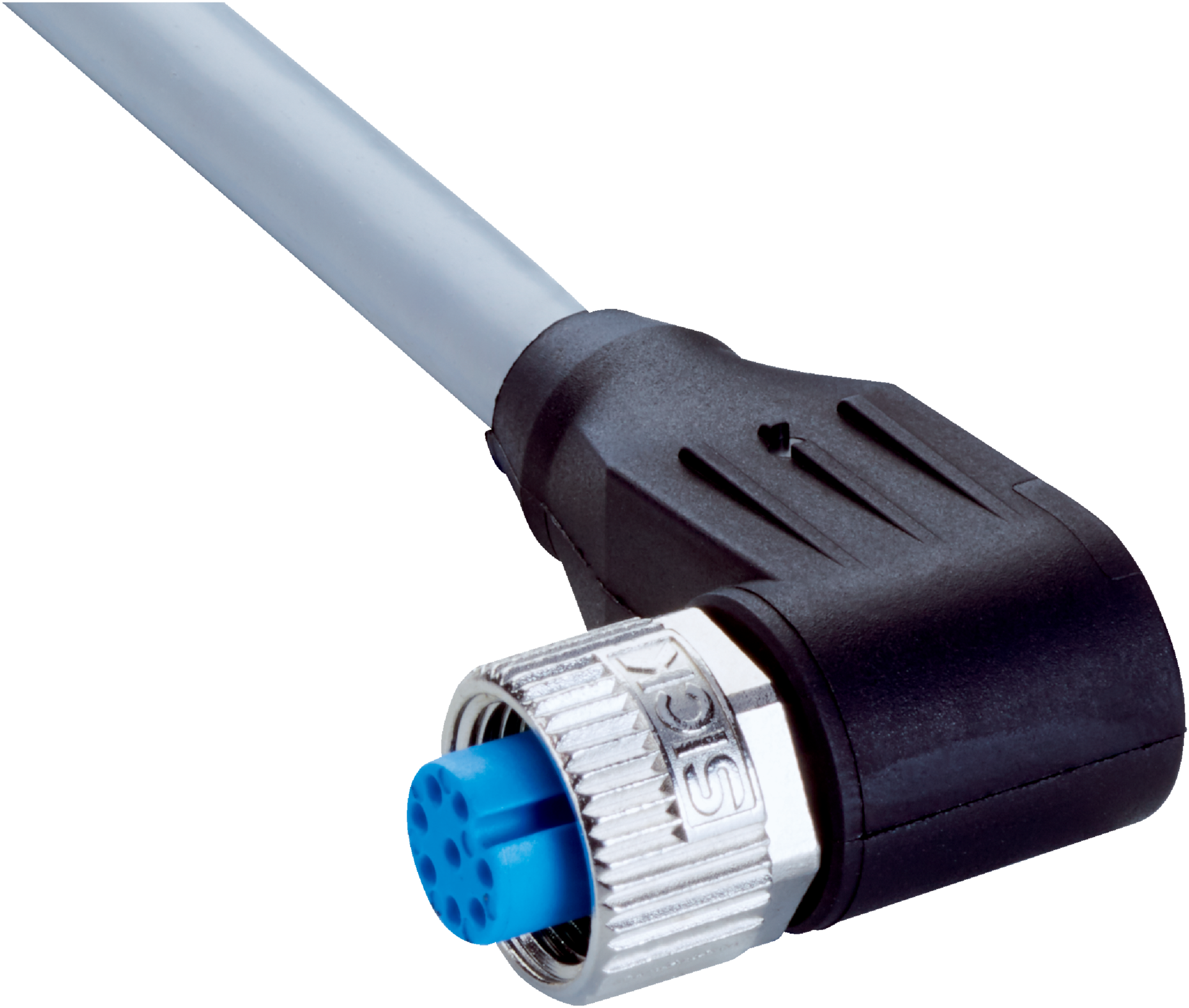

The SICK YG2A28-C50VA6XLEAX is a high-quality M12 8-pin female connector with flying leads, designed for sensor and actuator cable applications in chemical and uncontaminated zones, featuring robust materials and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: YG2A28-C50VA6XLEAX | Connectors and cables
Brand: SICK
SKU: 2145694
Alternatively Known As: M12 8-pin female connector cable, Sensor connector cable, SICK M12 connector, Industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.5 m, 8-wire, PVC
- Jacket material: PVC
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 500mm x 13mm
- Weight: 0.1 kg
Key Features
- Female M12, 8-pin angled A-coded connector
- Screw locking plug connector for secure connection
- Shielded cable with 0.25 mm² conductor cross section
- Cable jacket made of gray PVC with 7 mm diameter
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range from -30°C to +85°C depending on part
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Zones with chemicals
- Uncontaminated zones requiring reliable electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YG2A28-C50VA6XLEAX connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications requiring reliable and durable connections.
